Product description: Screen Kit - display in housing - for Creality Ender-3 3D printer - Creality

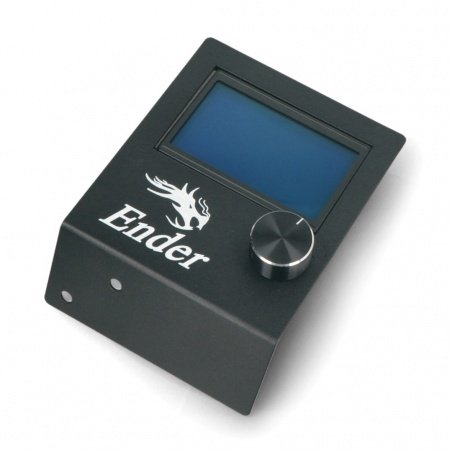

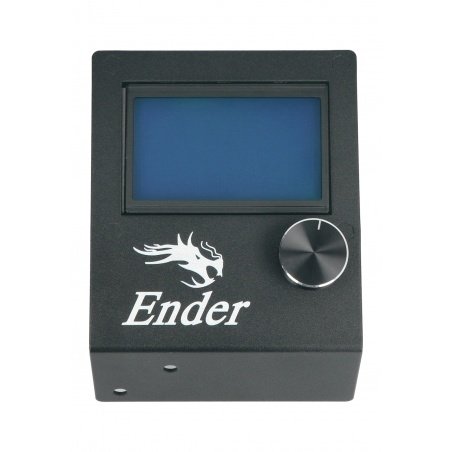

Screen Kit is a kit prepared by one of the most popular manufacturers of 3D printers -Creality. It contains adisplaywith a resolution of128 x 64 pxand a solid housing. Display colours arewhite and blue. The sturdy case made ofmetalprovides adequate protection and increases the life of the display. In the lower left corner the manufacturer has placed the white inscription "Ender" and the original logo. On the right side there is apotentiometer, which is used to controlthe printer. Mounting holes are located on the bottom of the component. The kit also includes mounting hardware -twohex headscrewsand a convenient485mmlong connecting cable.
Technical specification Screen Kit
- Original component for 3D printers manufactured by Creality
- Type: display in the housing
- Compatible with 3D printer: Creality Ender-3

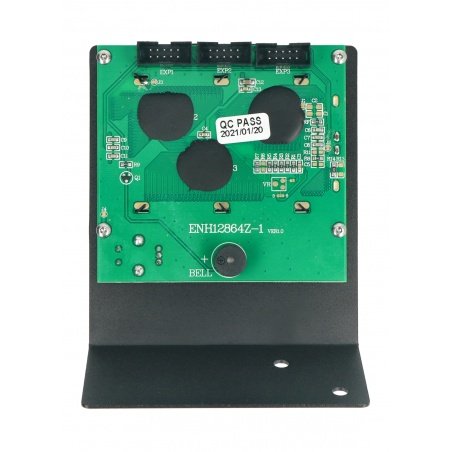

- Display Designation: ENH12864Z-1
- Resolution: 128 x 64 px
- Display colours: white and blue
- Control: via potentiometer
- Display connectors: EXP1, EXP2, EXP3
- Housing colour: black with white mark
- Housing material: metal
- display dimensions: 93 x 89 x 19 mm
- display dimensions with housing and potentiometer knob: 102 x 135 x 55 mm
- potentiometer knob dimensions: 25 x 12 mm (diameter x height)
- cable length with connectors: 485 mm

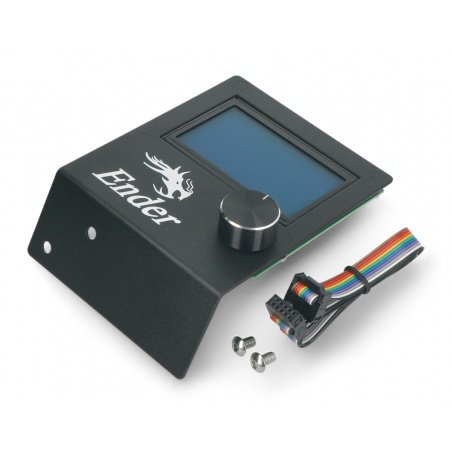

Contents of the kit
- Display in housing for Creality Ender-3
- Potentiometer knob
- Connection cable 48.5 cm long
- Mounting elements: hex head screws - 2 pcs.
In our offer you will also find other original components for 3D printers manufactured byCreality. Remember that the use of original parts and replacement parts increases the life of equipment and improves the efficiency of their work. We invite you to familiarize yourself with available components.
