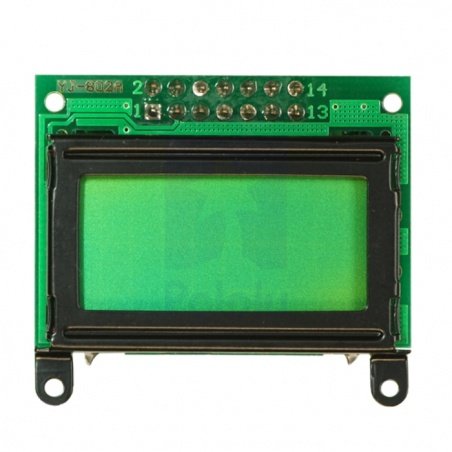

8x2 Character LCD - Black Bezel (Parallel Interface)
 - zdjęcie 1
 - zdjęcie 2
8x2 Character LCD - Black Bezel (Parallel Interface) - zdjęcie 3

LCD display 8x2 - Black Bezel Parallel Interface - Pololu 356

Index: PLL-06369
BOTLAND B. DERKACZ SPÓŁKA JAWNA Opinie z ekomi-pl.com

Character color: black. Backlight: green. Based on the popular HD44780 controller. Voltage supply 5 V.

PLN29.19
PLN29.19 tax excl.
Czas oczekiwania ok. 10-21 dni
Waiting for delivery
30-day returns
PayPal payment
Manufacturer: OEM
Compatibility: Arduino

Description

A small LCD display having two lines of characters, with 8 in each. It is characterized by simplicity, accessibility, as well as numerous support for many microcontrollers. It has mounting holes that facilitate attachment of the module.



This model is used with robots from the series Zumo 32u4.



Specification

  • Display 2x8 characters
  • Supply voltage: 5 V
  • Backlight: green
  • Characters color: black
  • Driver compatible with HD44780
  • Display dimensions: 30 x 14 mm
  • Module dimensions: 40 x 35 x 7 mm
  • Weight: 12 g



Outputs

The screen offers the following outputs:



No. Name Description
1 Vss Mass.
2 Vdd Power +5 V.
3 Vo The contrast adjustment.
4 RS Signal selection register (high / low).
5 R/W Signal read / write (high / low).
6 E The on signal (high / low).
7-14 DB0-DB7 Data line for 4-and 8-bit mode.





Screen - type alphanumeric
Screen - diagonal 1.2 ''
Screen - interface GPIO
Screen - touch no
Screen - resolution 2x8 znaków
