Seeeduino Xiao Expansion Board - extension board for Xiao main module

Index: SEE-18652 EAN: 5903351248389
BOTLAND B. DERKACZ SPÓŁKA JAWNA Opinie z ekomi-pl.com
A board extending the functionality of Seeeduino Xiao module. Enables faster and simpler prototyping with this miniature main module. On the board there are, among others, Grove system connectors, 0.96" OLED display, 2.0 mm JST connector enabling connection of Li-pol battery, RTC clock, space for lozenge battery and microSD card slot. The set consisting of extension board and main module can be programmed using Python language. All the connectors on the board have already been removed and there is no need for additional soldering. The total dimensions of the expansion board are 58 x 42.5 mm.
€15.53
€12.62 tax excl.

Available
(Check quantity)
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Seeedstudio

Product description: Seeeduino Xiao Expansion Board - extension board for Xiao main module

A board extending the functionality ofSeeeduino Xiaomodule. Enables faster and simpler prototyping with this miniature main module. On the board there are, among others,Grove systemconnectors,0.96"OLED display,2.0 mm JSTconnector enabling connection ofLi-pol battery,RTCclock, space for lozenge battery andmicroSD card slot. The set consisting of extension board and main module can be programmed using Python language. All the connectors on the board have already been removed and there is no need for additional soldering. The total dimensions of the expansion board are58 x 42.5 mm.

Bogato wyposażona płytka rozszerzeń do Seeeduio Xiao.

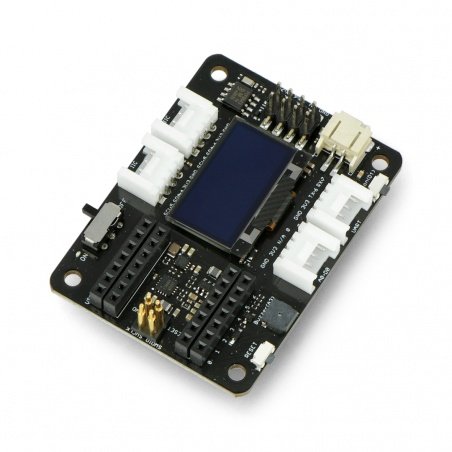

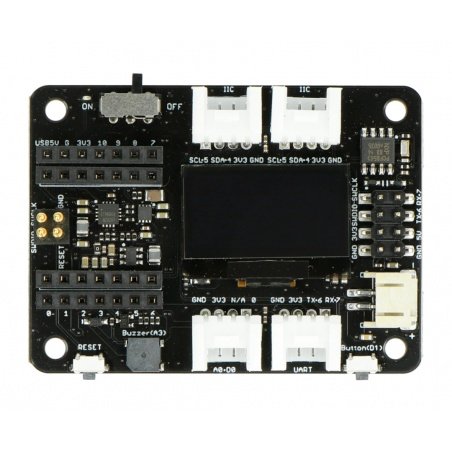

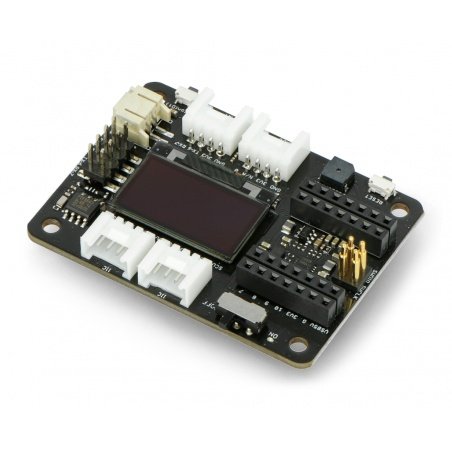

A richly equipped extension board for Seeeduino Xiao.

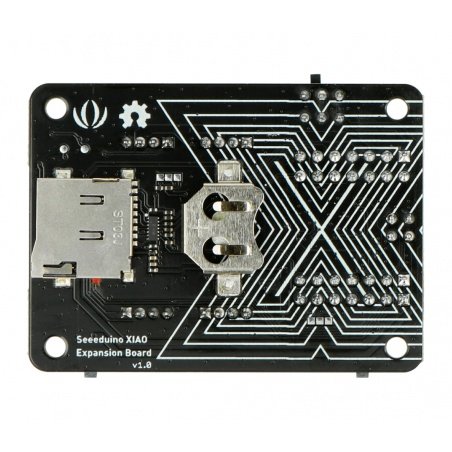

Sloty na kartę microSD i baterię CR1220 znajdują się na odwrocie płytki.

Slots for microSD card and CR1220 battery are on the back of the board.

Key features of the board

  • Connectors according to Seeeduino Xiao
  • Integrated OLED display 0.96"- allows for visual display of data, which allows for more efficient and convenient debugging and testing of new solutions
  • SWD male connector- for connecting the programmer-debugger
  • MicroSD card slot- the ability to expand memory means you don't have to worry about limited memory when programming with libraries
  • Precision real-time clockPCF8563Twith additionalbatterypower supplyCR1220
  • Programmable physicalbutton
  • Grove connectors- popular plug and play connectors supporting protocols
  • JST 2.0mmconnectorfor Li-pol battery
  • 5V servo connector- 5V male connectors for servo

Comparison of extensions to Seeeduino Xiao

Basic information
Grove - Shield for Seeeduino XIAO Raspberry Pi 3 vs 3 B+
Model Grove - Shield for Seeeduino XIAO Seeeduino XIAO Expansion Board
Technical Specification
Peripheries None
  • 0.96" OLED display
  • RTC PCF8563T
  • Buzzer
  • RESET button
  • Programmable button
  • SWD connectors
  • Grove connectors
  • SWD connectors
  • Connectors for 5V servo
Grove connectors
  • 2 x I2C
  • 1 x UART
  • 5 x A0/D0
  • 2 x I2C
  • 1 x UART
  • 1 x A0/D0
Memory extension SPI Flash Memory Space MicroSD card slot
Battery connector For self-brazing ST 2.0
Sensor - type Hub / nakładka
UC - microSD yes
UC - I2C yes
UC - UART yes
