Product description: Qwiic OpenLog Kit - SparkFun KIT-18350
The Qwiic OpenLog Kit from SparkFun, which includes the components necessary to use Qwiic OpenLog and the wider Qwiic ecosystem. The kit includes Arduino compatible RedBoard board, 8-channel module with I2C multiplexer Qwiic Mux, Qwiic OpenLog data logger and accessories - USB A - USB B cable, 32 GB microSD memory card (with adapter) and two Qwiic connection cables. The Qwiic OpenLog Kit allows you to store and log an enormous amount of data. No soldering required. Records data up to 20,000 bytes per second at 400 kHz.
Product compatible with Arduino IDE

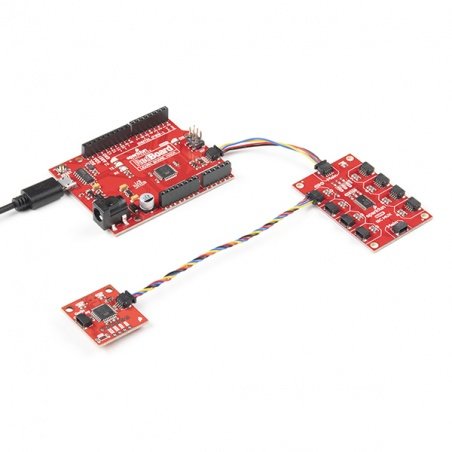

The manufacturer has prepared a user guide which contains a detailed description of the kit and an example of how to connect individual components.

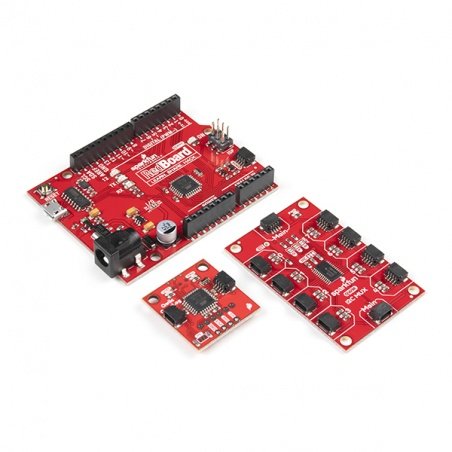

The boards included in Qwiic OpenLog Kit.
Technical specification of the kit
- OpenLog data logger
- VCC input: 3,3 V
- SDA: 3.3 V
- SCL: 3,3 V
- idle current consumption: 2 mA to 6 mA
- current consumption during active data storage: pd 20 mA doi 23 mA (depending on the microSD card used)
- Embedded chip: ATmega328, clocked at 16 MHz
- Supported development environment: Arduino IDE
- Communication interface: I2C bus
- MicroSD card support:
- 64 MB to 32 GB
- FAT16 or FAT32
- Connector standard: Qwiic
- Status indication: built-in LEDs
- STAT: green LED connected to pin D13; blinks only when SPI interface is active - when OpenLog writes data to microSD card
- PWR: red LED connected to pin D5; lights up when the board is active and functioning properly
Kit contents
- 1x SparkFun Qwiic OpenLog data logger
- 1x Qwiic SparkFun RedBoard - board compatible with Arduino
- 1x SparkFun Qwiic Mux Breakout - 8 channel module with I2C multiplexer
- 1x USB A - USB B cable - 0,8 m
- 1x Qwiic flex cable with 4-pin connector - 5 cm
- 1x Qwiic flex cable with 4-pin connector - 10 cm
- 1x microSD card with adapter - 32 GB (class 10)

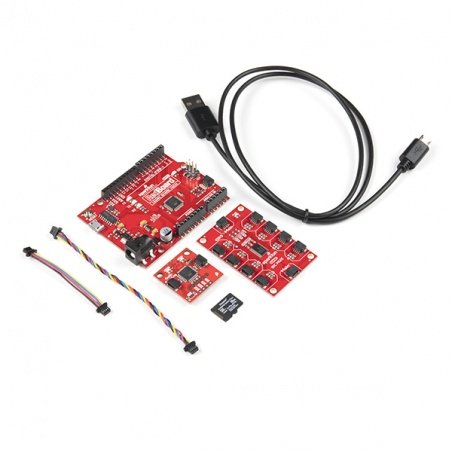

Contents of the Qwiic OpenLog Kit.
