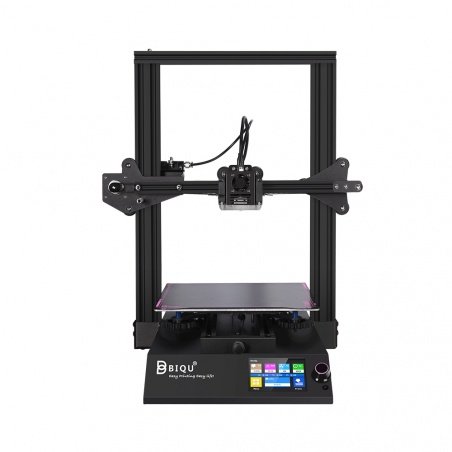

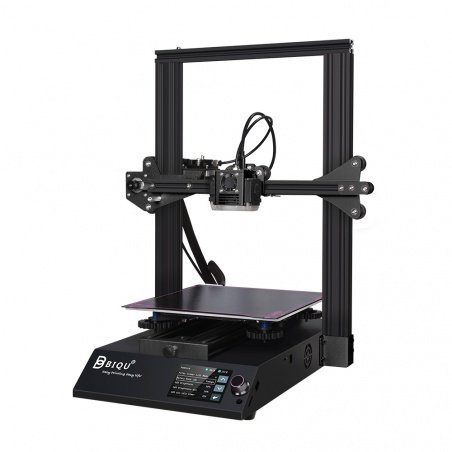

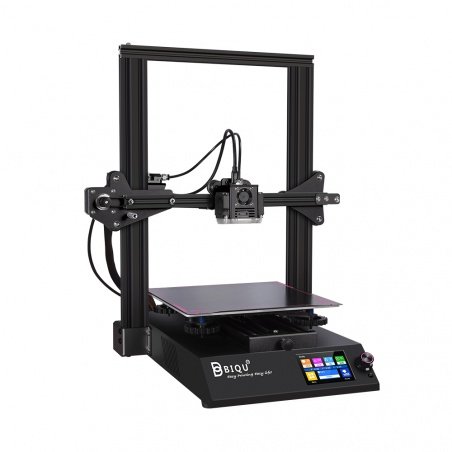

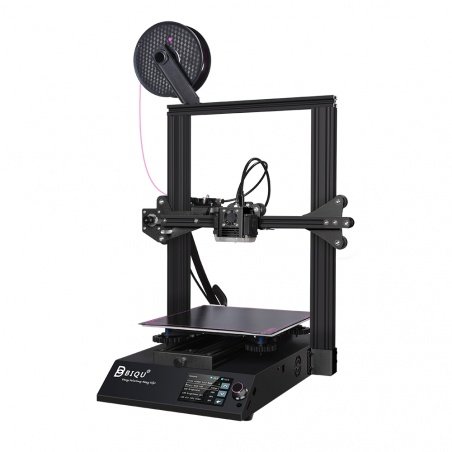

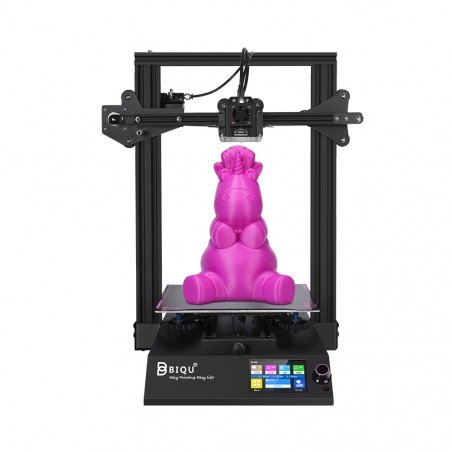

Product description: 3D Printer - Biqu B1
3D printerwith a workspace that allows you to create models with maximum dimensions:235 x 235 x 270 mm. The device is controlled bya powerful 32-bitSKR v1.4motherboard. Biqu B1 allows you to choose between two types of firmware: original Biqu and Marlin. The printer is equipped with afilamentsensor and the function of resuming the work after the restoration of the power supply. On the surface of the heating table of the device there is a magnetic overlay, which provides increased adhesion and at the same time easy removal of models. The printer is delivered as a kit for self-assembly.
The Biqu B1 has a powerful32-bit SKR 1.4 motherboardbased on an ARM Cortex-M3 processor. Apart from standard stepper motor sockets (supporting silent TMC controllers), the board features I2C and SPI communication interfaces.
Colour display with backlit encoder
Biqu B1 3D Printer is equipped with aclear display. It allows for easy menu navigation. Control is done with sensitive encoder, which can be backlit with a color chosen by the user.
Heating Table with Magnetic Overlay
Biqu B1 has a heating platform made ofspring steel. On its surface there is amagnetic overlayfitted on both sides, which ensures good adhesion of the printed models. At the same time it enables safe tearing off the finished printout, without the risk of damaging its critical elements.
Easy component connection
Biqu B1 provides easy connectivity to print components. The printhead is connected via aUSB type Ccable to an output port on the body of the printer. Next to it is a socket for optional connection of the BLTouch sensor.The sensoritself isnot included.
The possibility of highlighting the formed printout
The printer offers the possibility of highlightingthe printed models. This makes the process of creating printouts even more interesting.
Easy to install
The Biqu B1 printer is delivered as akit for self-assembly. However, the assembly of the device is not complicated. It takes a few dozen minutes and should not cause any problems, even for less experienced users.
Assembly of the printer and first start-up ofthe device.
Biqu B1 3D Printer Specifications
|Supply voltage:||100 V to 240 V (AC - mains)|
|Operating voltage:||24 V|
|Total power:||270 W|
|Printing speed||Up to 100 mm/s (recommended 60 mm/s)|
|Printing accuracy:||± 0.05 mm|
|Printing thickness:||0.1 mm to 0.3 mm|
|Nozzle diameter:||standard: 0.4 mm|
|Supported filament:||PLA, ABS, PTEG, TPU|
|Filament diameter:||1.75 mm|
|Operation mode:||SD cards, USB flash drive, cable|
|File format:||.stl, .obj, .amf|
|Software:||Cura, Repetier-Host, Simplify3D|
|Print size:||235 x 235 x 270 mm|
|Nozzle temperature:||up to 260°C|
|Table temperature:||up to 100°C|
