20A Redox regulator
20A Redox regulator

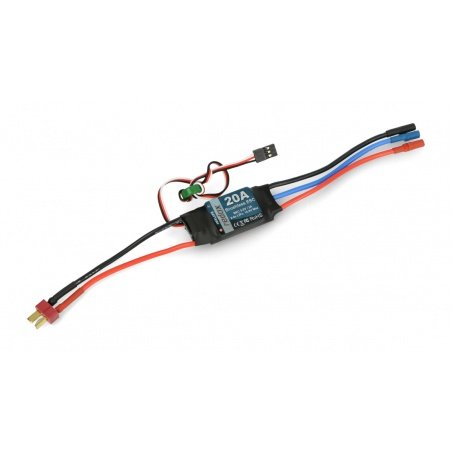

20A Redox regulator - zdjęcie 1

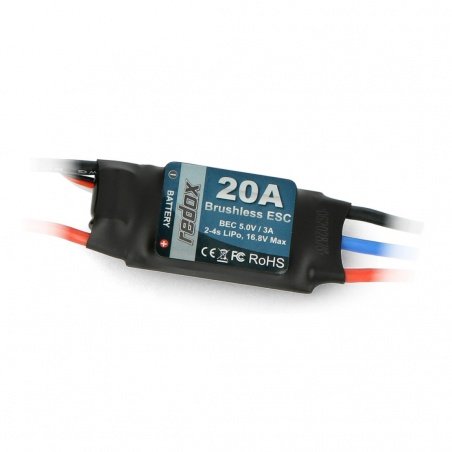

20A Redox regulator - zdjęcie 2

Brushless brushless motor (BLDC) driver Redox 20A

Index: MOD-01397 EAN: 5903754000058

The Redox brushless motor controller is powered by a 2S-4S LiPo battery or 5-10 NiXX cells. Continuous current up to 20 A, instantaneous 25 A, BEC 3 A/5 V.

€10.23
€8.32 tax excl.

Available, 24h shipping!
(Check quantity)
Shipping in 24 hours
30-day returns
Manufacturer: Redox

Product description: Brushless motor controller (BLDC) Redox 20A

The Redox brushless motor controller is powered by a 2S-4S LiPo battery or 5-10 NiXX cells. Continuous current up to 20 A, instantaneous 25 A, BEC 3 A/5 V.

Programmable operating modes of the controller

  • Choice of battery type: NiMH + NiCD / LiPo + LiIon (default)
  • Selectable cut-off at low voltage: Power reduction (default) / "hard" cut-off
  • Configurable voltage cut-off thresholds: low, medium, high (LiPo 2.8 V / 3.0 V / 3.2 V / cell; NiMH 0 % / 60 % / 65 % initial voltages)
  • Adjustable overtaking angle (Engine Timing) (low/medium/high)
  • Selection of take-off curve: Very soft / soft (default) / linear Flight mode (Governor): Airborne (default) / Helicopter Direction of engine: Regular (default) / Reverse
  • All programmable controller settings can be reset to factory defaults Brake (release)

Controller specification

  • The tension of work: LiPo 2-4s (7.4 - 14.8 V) or 5-10 NiXX cells (6 - 12 V)
  • Continuous flowing current: 20A
    • BEC: 3A/5V
  • Max. Current: 25A/10 sec.
  • Length: 50 mm
  • Width: 25 mm
  • Height: 8 mm
  • Weight: 25 g
  • Connectors: Deans/3x Deans plug 3.5 mm gold socket
