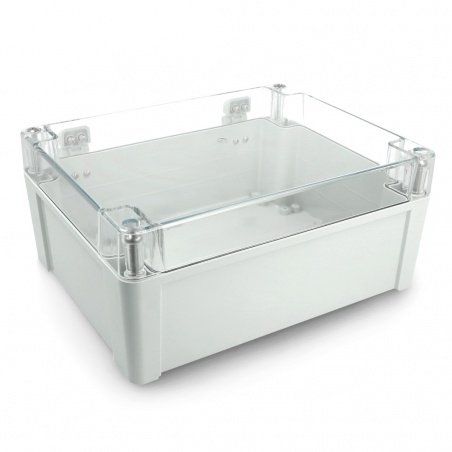

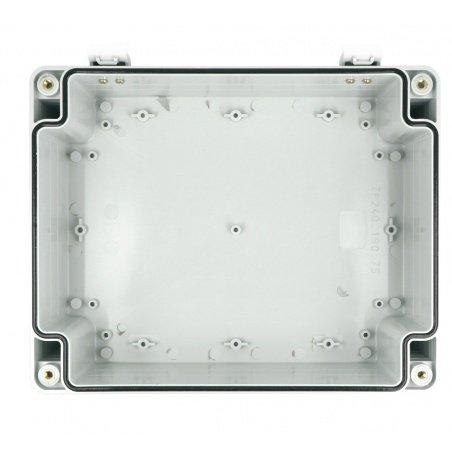

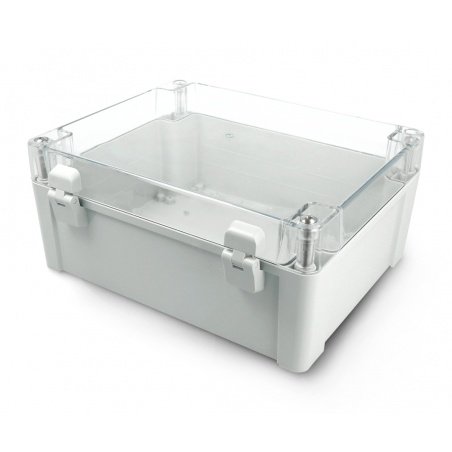

Plastic case Kradex ZP240.190.105JpH ABS-PC with a gasket and brass sleeves IP68 light transparent

Index: KDX-18901 EAN: 5903351247290
BOTLAND B. DERKACZ SPÓŁKA JAWNA Opinie z ekomi-pl.com
The two-piece plastic airtight enclosure from Kradex can be used for devices where a tight seal is required. The available version is made of ABS and PC material and has a spouted seal. The cover is made of transparent polycarbonate and is closed by means of two hinges, which are factory-fitted to the bottom part of the case. Both parts are bolted together. Mounting posts allow a stable attachment of the DIN rail inside the enclosure. The product is packed in a dedicated cardboard box.
€25.36
€20.62 tax excl.
Unavailable
Waiting for delivery
30-day returns
PayPal payment
Manufacturer: Kradex

Product description: Kradex plastic housing ZP240.190.105 JpH ABS-PC with gasket and brass bushings IP68 clear-transparent

The two-piece plastic airtightenclosurefrom Kradex can be used for devices where a tight seal is required. The available version is made ofABSandPCmaterial and has aspouted seal. The cover is made of transparent polycarbonate and is closed by means of two hinges, which are factory-fitted to the bottom part of the case. Both parts are bolted together. Mounting posts allow a stable attachment of the DIN rail inside the enclosure. The product is packed in a dedicated cardboard box.

Hermetic housing IP68

IP class is a standard which helps to determine the level of water- and dust-tightness of a device or product. The higher the IP number the higher the confidence that the product can be exposed to water. Some classes of waterproofness allow the product to be submerged in water. TheIP68ensures full protection against water entering the enclosure, even when completely submerged for a long period of time, and also means full dust tightness.

Obudowa plastikowa Kradex ZP240.190.105JpH ABS-PC z uszczelką i mosiężnymi tulejkami IP68 jasno-przeźroczysta

Plastic housing Kradex ZP240.190.105JpH ABS-PC with gasket.

Obudowa plastikowa Kradex ZP240.190.105JpH ABS-PC z uszczelką i mosiężnymi tulejkami IP68 jasno-przeźroczysta

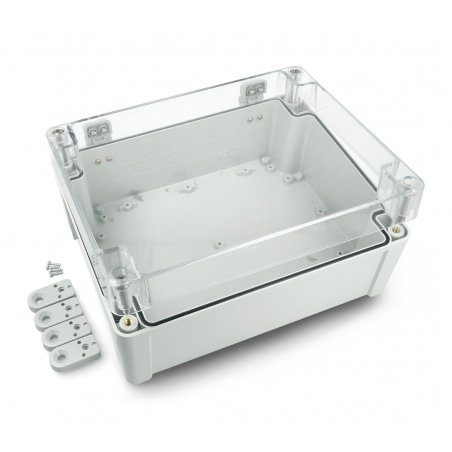

Components included with the Kradex enclosure.

Housing specification

  • Manufacturer: Kradex
  • Material: ABS and PC
  • Upper and lower part connected by screws
  • Equipped with gasket
  • Equipped with brass bushings
  • Leakage class: IP68
  • Strength class IK09
  • Colour:
    • Bottom housing: light grey
    • Cover: clear
  • Product dimensions when folded: 240 x 180 x 192 mm

Set contents

  • Hermetic enclosure ZP240.190.105
  • Slip-on gasket
  • Brass bushings M5
  • 4 x metric screws 5 x 30 mm
  • 2 x hinge (fitted)
  • 4 x mounting bracket



Tightness class IP68
