Charger/Unloader with built-in REDOX BETA cell balance is an excellent choice especially for beginners and intermediate modelers looking for a simple and economical charger for everyday use, with 12V power supply. In addition, the set includes an AC adapter, thanks to which you can power the charger not only from a 12V source but also from a 230V socket. Packed in an attractive box with a description in Polish, the charger supports LiPo, LiIon and LiFe cells and packages (with the possibility of balancing the cells), and NiCd, NiMH and Pb cells and packages, charging up to 5A.
Characteristics:
Dimensions: 113 x 65 x 23 mm
The tension of work: DC 11.0~18.0 V or AC/DC power supply 230V 5A
Output power: max. charging power 50W, max. discharge power 5W
Charging current: 0.1-5.0A
Discharge current: 0.1-1.0A
Balancing current: 300 mAh/fire
Number of NiCD/NiMH cells supported: 1-15 cells
Number of supported Li-Po/Fe/Ion targets: 1-6 targets
Supported batteries Pb: 2-20V
Weight (without wires): 195 g
Built-in charger memory: max. 5 packages
Package cycle function
4 programming buttons
Built-in sockets:
sockets for balancer adapter + 2-6S adapter
DEAN charging sockets (suitable grommets are included)
Jack type socket (12V DC power supply)
socket for an optional temperature sensor
USB port
Set contents:
Redox Beta loader
12V DC power cord (Jack - Crocodile)
AC/DC power supply 230V 5A
1 x 4 mm Gold adapter - DEAN plug
Additional extension adapters for the Gold 4 mm adapter - DEAN plug:
1 x adapter DEAN socket - Crocodiles
1 x adapter DEAN socket - Servo socket (futaba type)
1 x adapter DEAN socket - Candle holder (for charging 1.5V clips)
1 x adapter DEAN socket - BEC socket
Operating instructions in Polish

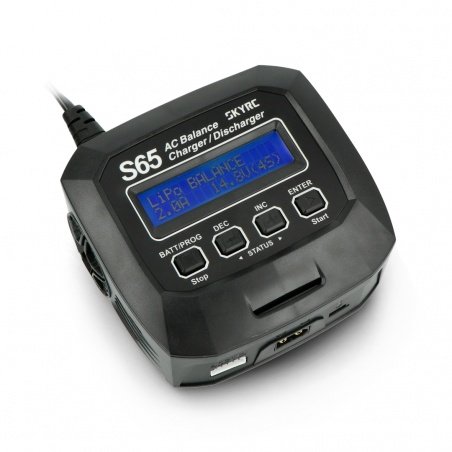

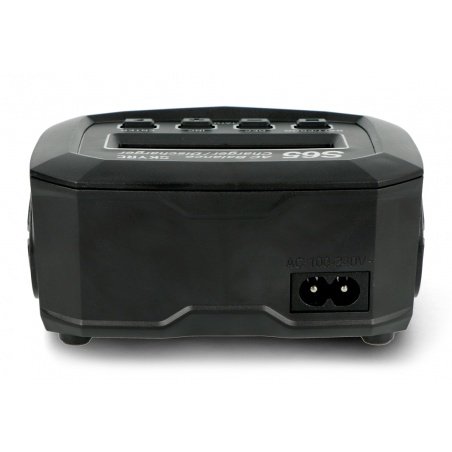

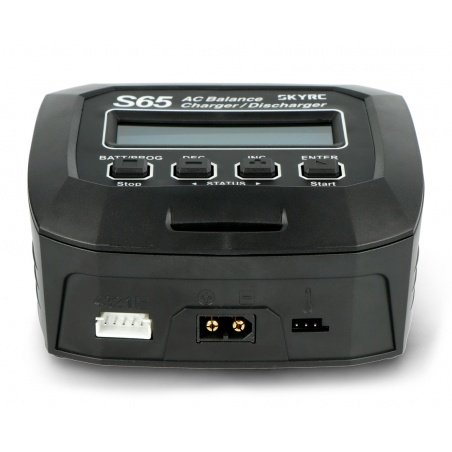

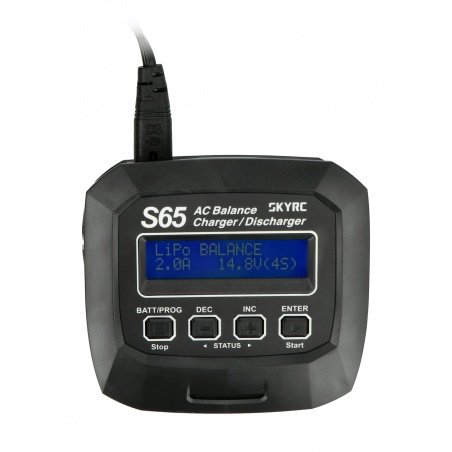

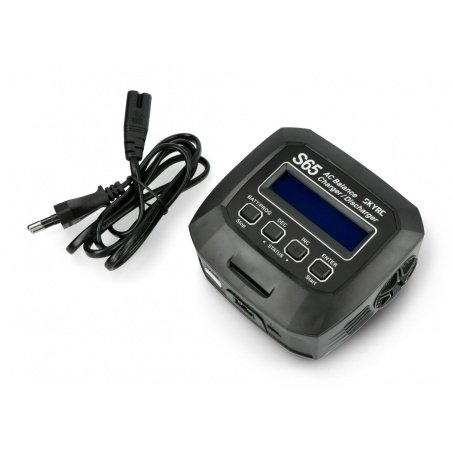

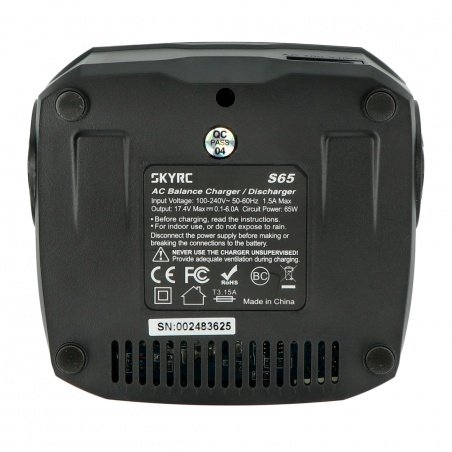

Description: Li-Pol / Li-HV / Li-Fe / Li-Ion / Ni-MH / Ni-Cd / Pb charger with SkyRC S65 balancer with built-in power supply
The SkyRC S65 is a simple and versatile charger that works with most of the cells used in robotics and modeling. Large, easy to read display and intuitive user interface allow you to select appropriate parameters and constantly monitor the battery status during charging. A set of adapters ensures trouble-free charging of Li-Pol, Li-Ion, Li-Fe, Li-HV cells and NiCd, NiMH and Pb packages. The built-in balancer guarantees correct and even charging of all cells in the packages.
Parameters of SkyRC S65 charger:
- Power supply voltage: from 100 V to 240 V AC
- Power output:
- max. charging power 65 W
- Max. discharge power 10 W
- Charging current: 0.1 A to 6.0 A
- Discharge current: 0,1 A to 2,0 A
- Number of NiCD / NiMH cells supported: 6 to 8 cells
- Number of supported Li-Pol / Fe / Ion / HV cells: 2 to 4 cells
- Supported batteries Pb: 6 V to 12 V
- 4 programming buttons
- Voltage measurement to 3 decimal places
- Data storage and playback mode
- Built-in fan
- Charging mode for new Lipol LiHV batteries with a charging voltage up to 4.35 V
- Weight (without wires): 315 g
- Dimensions: 117 x 105 x 55 mm
- Built-in sockets:
- sockets for balancer adapter
- AC power socket
- temperature sensor socket
- socket for battery connector
Set contents
- SkyRC S65 charger
- Mains cable eight
- Operating instructions in English
