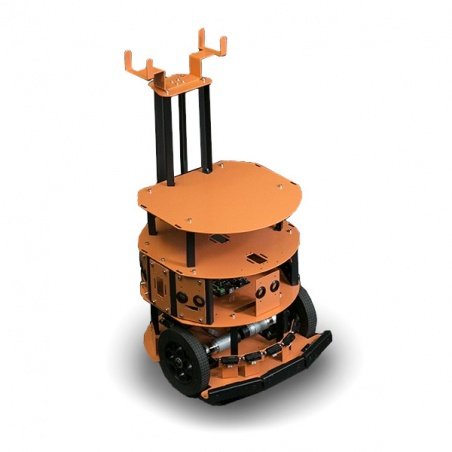

DFRobot HCR - 3-level Robot Platform with Sensors, DC Motor Drive and Romeo Microcontroller

Index: DFR-06622 EAN: 5904422334826
BOTLAND B. DERKACZ SPÓŁKA JAWNA Opinie z ekomi-pl.com

Universal platform with two wheels and three levels. It has two DC motors, two wheels, one omni wheel, module Romeo and 5 proximity sensors Sharp GP2Y0A21YK0F.

€596.53
€484.99 tax excl.
Waiting time approx. 4-6 weeks
To order
30-day returns
PayPal payment
Manufacturer: DFRobot

Description

HCR universal platform with two wheels and three levels (you can assemble the robot with only one or two levels). It has two DC motors, two wheels, one omniwheel, moduleRomeoin V1 and 5 proximity sensorSharp GP2Y0A21YK0F. Elements of the chassis are made of plastic, have holes that allow you to mount various sensors, controllers, e.g. supplied by the manufacturer Romeo, orArduinoorRaspberry Pi.


The platform is simple to install, to launch the robot simply install the motor, install the wheels and add any controller (module Romeo included). In our offer we also havesensorsthat can extend the robot's capabilities. The HCR has a new platform expansion opportunities, such as a install support Microsoft Kinect.

Set includes

  • Mounting platform HCR
  • 3 x collision sensor
  • Rubber wheels and a set of engines
  • Flat wrench
  • Spanner for nuts
  • 3 x set of mounting bolts
  • Set of mounting components
  • Omni Wheel
  • Controller Romeo V1
  • 5 x proximity sensor Sharp GP2Y0A21


Set requires self-assembly, instruction videos can be found on YouTube.



Specification

  • Design:
    • Orange aluminum chassis
    • Three-level construction
    • Wheel diameter: 13 cm
    • Dimensions: 33 x 33 x 65 cm
    • Load capacity: 10 kg
  • Motors:
    • Working voltage: 12 V
    • Gearbox: 51:1
    • Options for power supply 12 V:
      • Current consumption without load: 230 mA
      • Torque: 10 kg*cm (1 Nm)
      • The revs at the gearbox output no-load: 146 rpm
      • The current consumption of the motor with a stationary shaft: 3,6 A
    • Motor dimensions: 123 x 36 x 36 mm
    • Motor weight: 270 g





Installation manual for the DFRobot HCR platform.



Chassis - wheels 2
Chassis - type wheel
Chassis + drive yes
Chassis + driver: yes
