Product description: Rack 19" mounting rails for Armac 19" rackmount power supplies

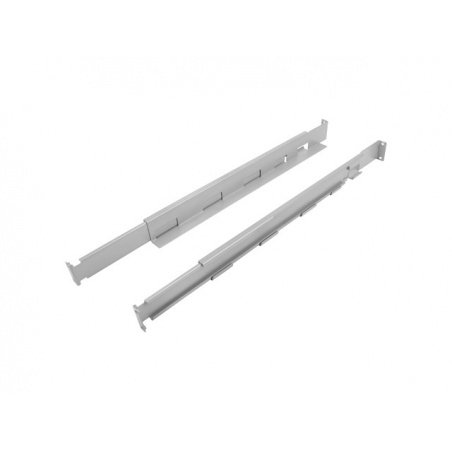

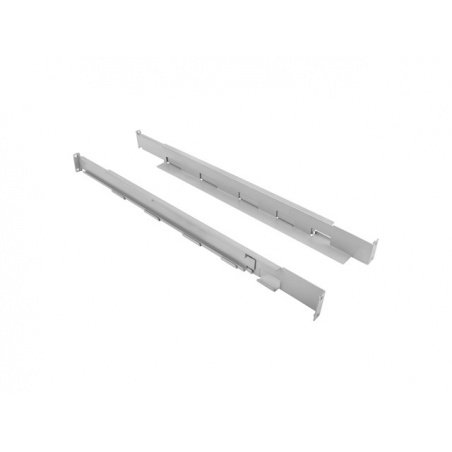

A set of mounting rails designed for easy mounting of Armac 19" series uninterruptible power supplies (UPS) in server cabinets of this size. The maximum load capacity of the rails is 40 kg. Armac 19" rack mount units can be mounted using the mounting ears included in the package with the power supplies and battery packs or using mounting rails. The second mounting method guarantees greater stability of the device after it is placed in the rack. Additionally, the rails, as opposed to the ears, support the devices evenly along the entire length.

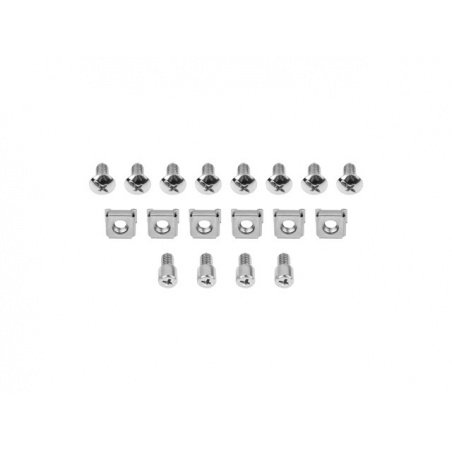

The rails should be mounted before placing the UPS in the server rack. They are mounted with mounting screws and M6 installation baskets. The power supply and battery packs are mounted by placing them at the beginning of the rail, and then sliding the unit into the rack. Next, the device should be locked into the rails by inserting the mounting baskets into the rails of the rack, and the mounting ears should be tightened with screws.
