- Supply voltage:
- AC from 200 V to 240 V
- Type: impulse
- Output voltage: DC 24 V
- Output current: 2,55 A
- Power: 60 W
- DIN rail-mounted
- Screw connections
- Signalling correct output voltage: DC diode OK
- Dimensions: 93 x 78 x 56 mm
- Weight: 280 g
Details in the documentation.

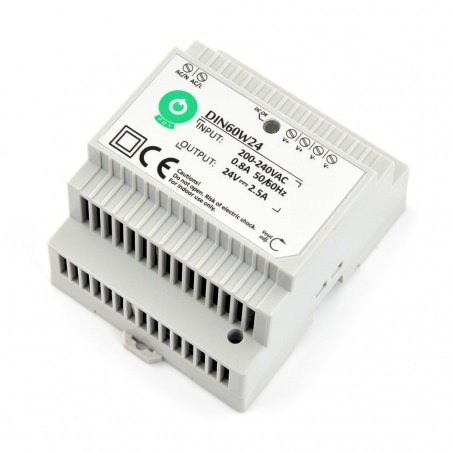

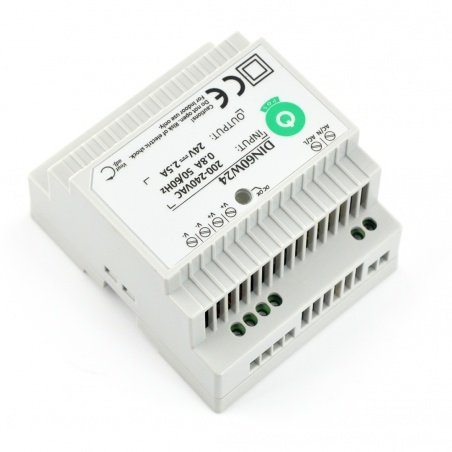

DIN60W24 power supply for DIN rail - 24V / 2,5A / 60W
We require high reliability and many safeguards from industrial power supplies. That is why our DIN60W24 DIN rail power supply - 24V / 2,5A / 60W - has a number of built-in protective functions, including short-circuit, overload, overvoltage and thermal protection.
Importantly, the well thought-out design allows fanless cooling - a free airflow is sufficient. The device has a light-on switch-on indicator and can operate with an adjustable output voltage (using a built-in potentiometer) in the range from 22 to 28.5V. The noise and ripple level is maintained at 360 mVpp.
Applications of DIN rail power supplies
The DIN rail-mounted power supplies are primarily intended for industrial applications - as it is in factory control cabinets that TS35 rails are the perfect way to mount PLCs, I/O modules, transmitters or contactors. The 24v dc power supply we offer is perfect for this type of application.
Another common application for DIN rail power supplies is all kinds of building automation systems, HVAC controllers and related installations, mounted in TS35 rail mounted switchgears. The possibility of easy expansion and servicing of modular systems makes it worth considering such a form of installation also in... a home workshop.
