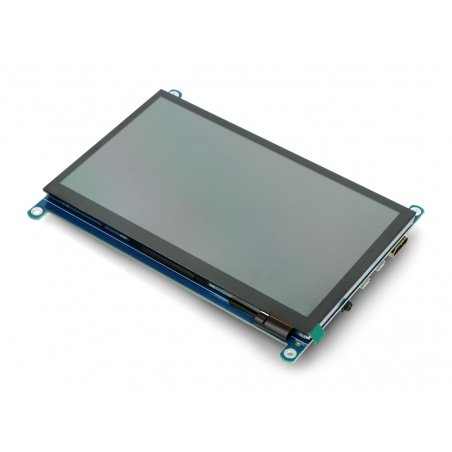

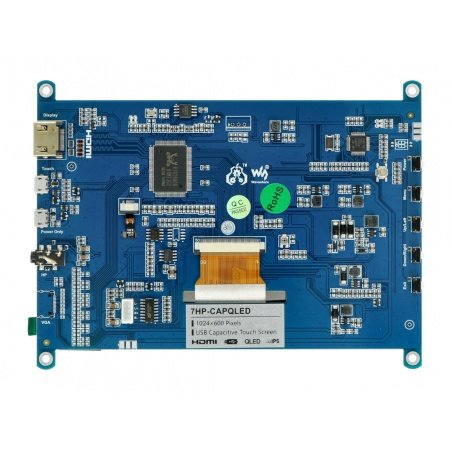

Touch screen - capacitive QLED Quantum Dot 7 '' 1024x600px - Waveshare 18625

Index: WSR-18534 EAN: 5903351244800
BOTLAND B. DERKACZ SPÓŁKA JAWNA Opinie z ekomi-pl.com
Touchscreen from Waveshare with a diagonal of 7" and a resolution of 1024 x 600 px. The display works with QLED technology, which uses quantum dots that modify the light falling on them and LED backlight. It has a panel made of tempered glass. It supports many systems and devices, the more popular ones include: Raspberry Pi, Nvidia and Windows. It offers a wide range of colors and the ability to adjust the brightness of the backlight with software.
€83.70
€68.05 tax excl.

Available
(Check quantity)
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Waveshare

Description: Touch screen - capacitive QLED Quantum Dot 7'' 1024x600px - Waveshare 18625

Touch screen from Waveshare with diagonal of 7" and resolution 1024 x 600 px. The display works with QLED technology, which uses quantum dots that modify the incident light and LED backlight. It has a panel made of tempered glass. It supports many systems and devices, the more popular ones include: Raspberry Pi, Nvidia and Windows. It offers a wide range of colors and the ability to adjust the brightness of the backlight using software.

The manufacturer provides a Wiki page of the product, which contains detailed information on how to connect the display with other devices.

Wyświetlacz 7'' QLED od Waveshare.7'' QLED display from Waveshare.
Zestaw zawiera ekran QLED, adapter, przewody i elementy montażowe.Kit includes QLED display, adapter, cables and mounting hardware.

Technical specification

  • Technology: QLED Quantum Dot
  • Type: capacitive, touch
  • Touch points: 5
  • Screen diagonal: 7"
  • Resolution: 1024 x 600 px
  • Viewing angle: 170°
  • Audio output:
    • 3.5mm jack
    • 4-pin connector
  • Color gamut: NTSC 78%, SRGB 92%
  • Display port: HDMI
  • Dimensions: 165 x 125 mm

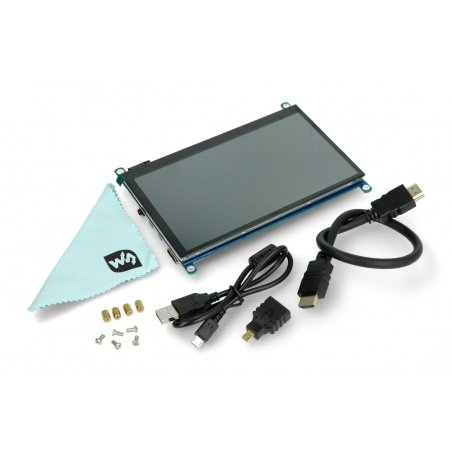

Set contents

  • QLED display
  • HDMI cable
  • HDMI to microHDMI adapter
  • USB A - microUSB plug
  • Mounting hardware

Device and system support

The QLED capacitive touchscreen can be used in a variety of ways. It supports, among other things:

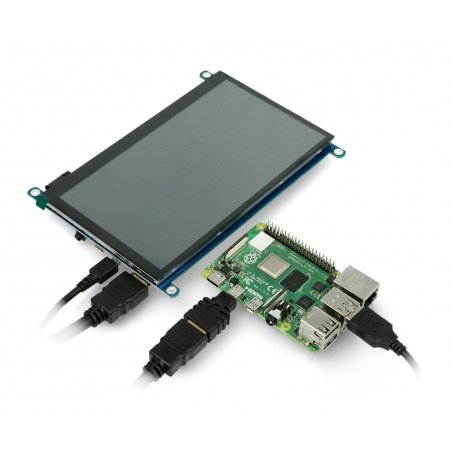

  • Raspberry Pi OS - 5 touch points, without additional drivers
  • Ubuntu / Kali / Windows 10 IoT - single touch point, no additional drivers required
  • Retropie - no additional drivers
  • Windows 10 / 8.1 / 8/7 - 5 touch points, no additional drivers
  • Gameconsoles Xbox360 / PS4 and many others
Urządzenie wykorzystuje port HDMI.The device uses HDMI port.
Screen - type QLED
Screen - diagonal 7''
Screen - interface HDMI
Screen - touch yes
Screen - resolution 1024x600px
