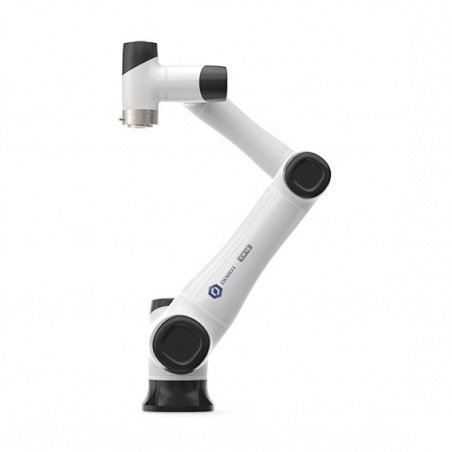

Dobot CR10 robotic arm

Index: DBT-18779 EAN: 6970632060274
The Dobot CR10 is a safe robotic arm that cooperates with humans. The lifting capacity of the CR10 arm is 10 kg and its movement range is 1525 mm. The robot arm is equipped with sensors allowing it to detect collisions with other objects and to replay a sequence of movements. Dobot communicates via RS485, TCP/IP, Modbus, EtherCat or WiFi using an app for Android, iOS or Windows. The range of motion is 360° or 160° for individual arm elements.
Dobot CR10 robotic arm
Ask about price

Ask about product price

Dobot CR10 robotic arm

Dobot CR10 robotic arm

Please fill below informations. Customer service will contact with You soon as is possible.

* Required fields

Cancel or

Only on request
PayPal payment
Dobot CR version:
Manufacturer: Dobot

Product description: Dobot CR10 robotic arm

DobotCR10 is a safe robotic arm that cooperates with humans. The lifting capacity of theCR10arm is10 kgandits movement range is1525 mm. The robot arm is equipped with sensors to detect collisions with other objects and to replay a sequence of movements. Dobot communicates viaRS485, TCP/IP, Modbus, EtherCatorWiFiusing an app for Android, iOS or Windows. The range of motion is 360° or 160° for the individual arm elements.

Note!

The purchase price of the robot arm depends on the factory currently producing the product. In order to express your desire to purchase the item, please contact us by email: biuro@botland.com.pl

Intelligent control panel

The CR series arms are equipped with a control panel withLEDsthat indicate the status of the robot. With just one click of a button, the robot can betaught a specific motion sequenceto repeat.

Easy assembly

Assembly time for the CR robot arm is about20 minutes, and it is ready for use within an hour. It is assembled using cables with dedicated connectors that ensure a seamless connection between the arm's components and the workstation.

Wide compatibility with the Dobot CR10 robotic arm

The Dobot CR10 robotic arm is compatible with a wide range of peripheral equipment. It allows operations such as feeding, assembling, inspecting, handling, screwing, grinding and gluing to be performed. The controller is equipped withmany I/Oandcommunicationinterfaces, opens unlimited possibilities for expansion.

Kompatybilne urządzeniaCompatible devices.
Dobot SafeSkin

Dobot SafeSkin Technology

The SafeSkin technologydetectswhen the armcollideswith another object and emergency stops the robot movement to avoid acollision. The built-in sensor is immune to any interference and detects the object at a distance of15 cm, ensuring a fast response from the robot.

CR10 arm programming

The arm can be programmed in the CRStudio graphical editor by setting code blocks or in the Dobot SCStudio text editor.

Dobot CR10 robot arm specifications

Parameter Value
Load capacity 10 kg
Maximum reach 1525 mm
Operating voltage 48 V DC
Maximum movement speed 4 m/s
Individual connector ranges J1 ±360°
J2 ±360°
J3 ±160°
J4 ±360°
J5 ±360°
J6 ±360°
Maximum speed for connectors J1/J2 120°/s
J3/J4/J5/J6 180°/s
I/O interfaces DI/DO/AI 2
AO 0
Communication interface communication RS485
Controller I/O DI 16
DO/DI 16
AI/AO 2
ABZ incremental encoder 1
Repeatability ±0.03 mm
Communication TCP/IP, Modbus, EtherCAT, WiFi
Degree of protection IP IP54
Working temperature from 0°C to 45°C
Power 350 W
Material aluminium alloy, ABS
Weight 38 kg
