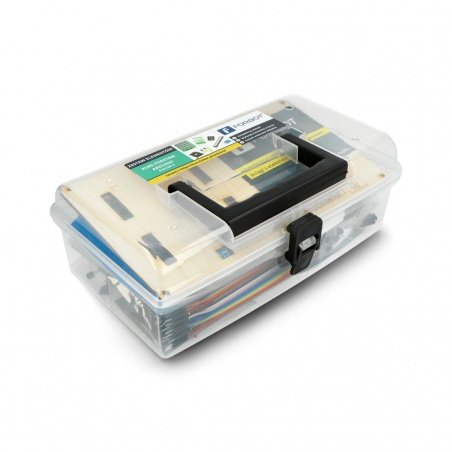

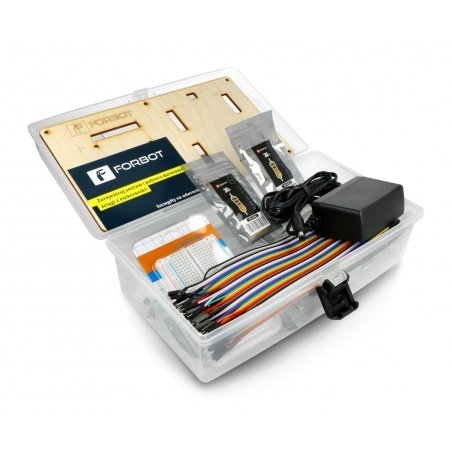

Continuation of the popular course " Basics of Arduino. The kit contains items needed to perform the tasks described inthe service Forbot.pl. Included are i.a. sensors, addressable LEDs, display, pad for Arduino and power supply. All packed in a handy box.
The kit also includes aunique code, by which, i.a.:
- you can confirm the originality of the product
- you will receive information about the latest news and updates on the course
- in the future you will get access to new content and quick help on the forum.
The course based on the elements of this set is conducted on the Forbot.pl. In our offer, you will find alsoother sets, to which lessons are conducted on this portal.

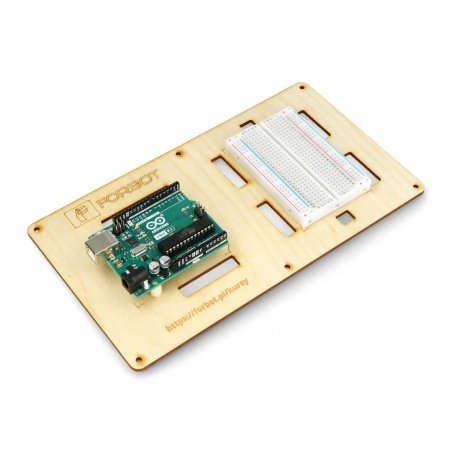

The set includes a wooden pad along with screws, which allows to fix the plate Arduino along with a breadboard.
The outline of the course
The course was divided into 10 parts, which will be published regularly during the coming weeks. The frequency of the publications depends on Your participation and the number of comments.
|L. p.||The name of the episode||Status|
|2||The RGB LEDs, traditional and adressable WS2812||Available|
|3||Alarm siren, MOSFET in practice||Available|
|4||Interruptions, reed switch, PIR sensor||Available|
|5||Keyboard, own alarm system||Available|
|7||Thermometers, analog and digital||Available|
|8||Digital humidity sensor (DHT11)||Available|
|9||Multitasking, delays with millis()||Available|
|10||The summary of course||Available|
Check also the first part of the course: basics of Arduino!
To fulfill the first and second part of the course, required are elements of both sets.
The contents of the set
Set includes electronic components, thanks to which you will be able to perform in practice all the exercises. Given that most of the users already has the main plateArduino Uno from the course "The Basics of the Arduino, by default, it is not included in the package. You can add it, by selecting "Yes" in the menu above the product price.
|1||Arduino Uno- original, the newest module with Atmega328 microcontroller - send only if the option in the menu under the item price is selected.|

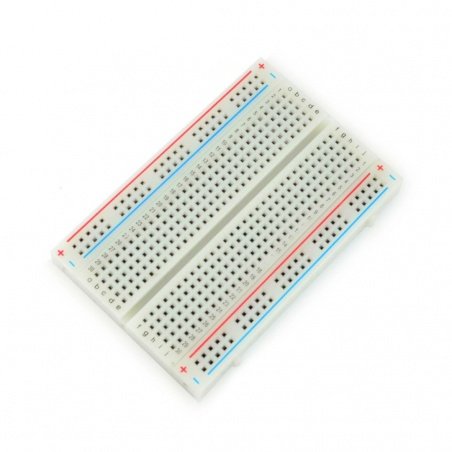

|2||Breadboard 400 holes- plate with separate power lines to create electronic circuits.|

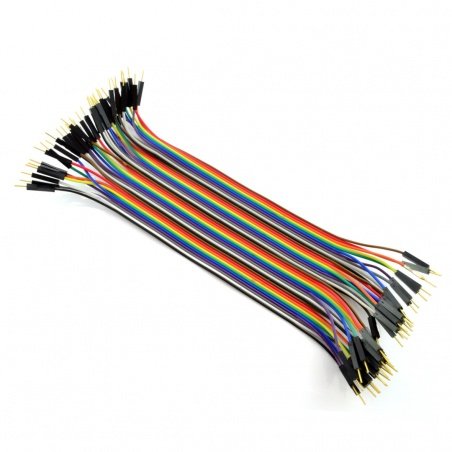

|3||Wiremale-to-male - 20 pcs - allow you to create connections on the breadboard and between Board and Arduino.|

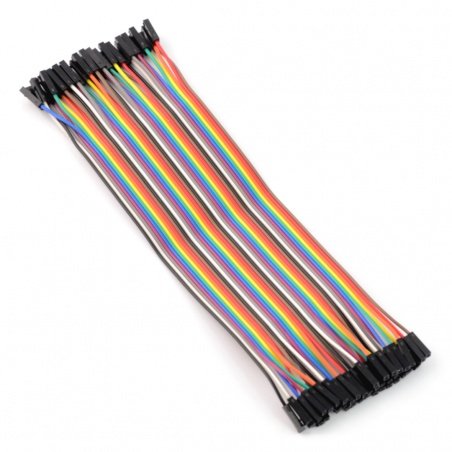

|4||Female-female wires - 20 pcs - allow you to create connection.|

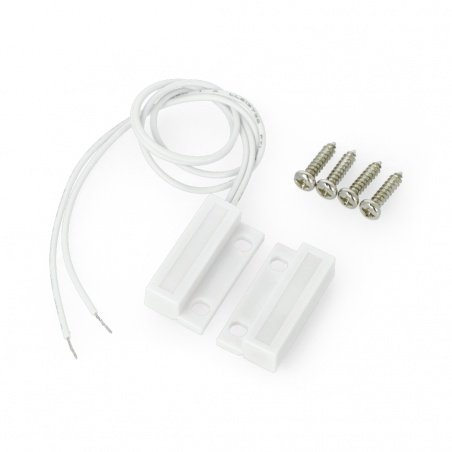

|5||Magnetic sensor - reed switch CMD14 - wire proximity sensor is activated magnetically. The device is mainly used to determine the position of doors and windows.|

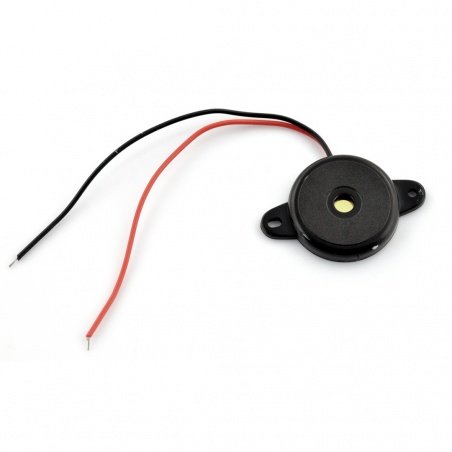

Buzzer without generator 23mm - a piezoelectric transducer in the housing with the lead wires and mounting handles.

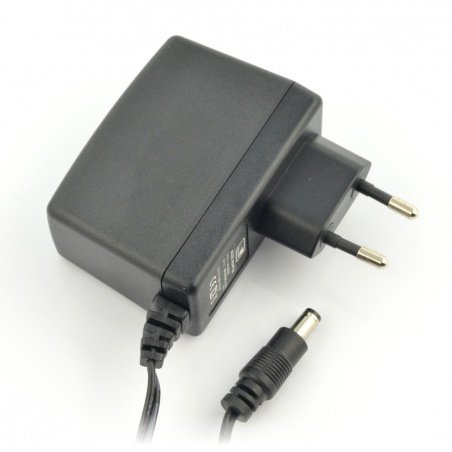

|7||Stabilized power supply- 230 V AC socket. The output voltage is 12 V DC. Output current: 1.5 A - 2 A. Is used to power the Arduino.|

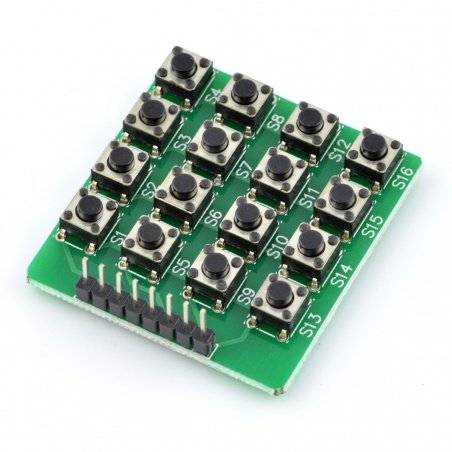

|8||Keyboard - matrix 16 x tact switch- matrix consisting of 16 buttons of type tact switch, distributed in four rows and four columns.|

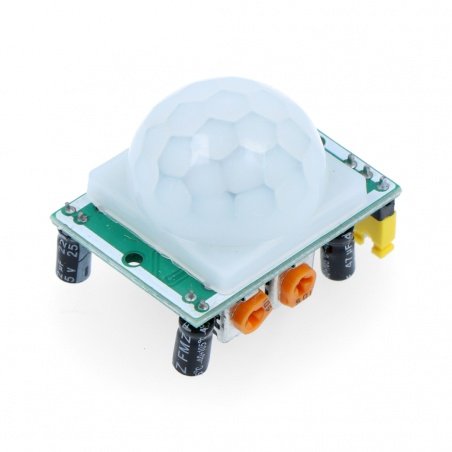

|9||The PIR sensor - enables the detection of movement. Used to detect objects in the premises, alarm and lightingsystems.|
Transistors BC547 NPN- 5 PCs - models of the semiconductor, allowing, in particular, to control the elements that consume more current than can provide a single pin of the microcontroller.
|11||Photoresistors - sensor for measuring the intensity of the incident light, allows, for example, to detect if the room is dark or light.|
|12||Temperature sensor DS18B20- 2 PCs - with 1 wire interface. Works in range from -55 °C to 125 °C. is supplied with the voltage from 3.0 V to 5.5 V.|
|13||Temperature sensor LM35 analog- 2 pcs - popular, easy to use thermometer, connected to the analog inputs of the Arduino. Operates in the range from 0 °C to 100 °C. Is supplied with the voltage from 4.0 V to 30 V.|
|14||The DHT11 sensor - with a digital single circuit interface, designed to measure temperature and humidity.|

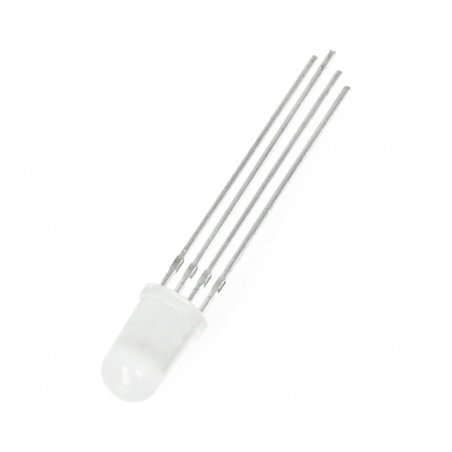

|15||2 xLed RGB - three colors, matted al. the cathode in housing 5 mm.|

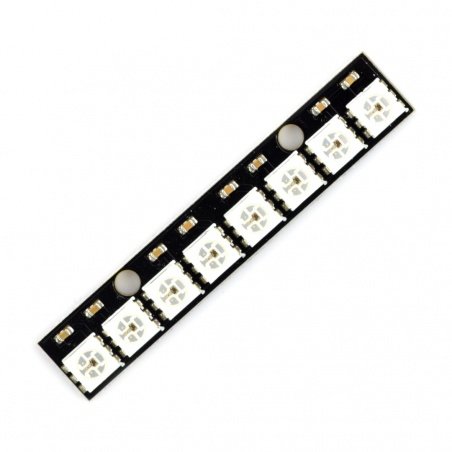

|16||LED strip RGB WS2812 x 8- consists of 8 individually addressed LEDs with built in driver. To use the module, one pin of the Arduino is only needed.|

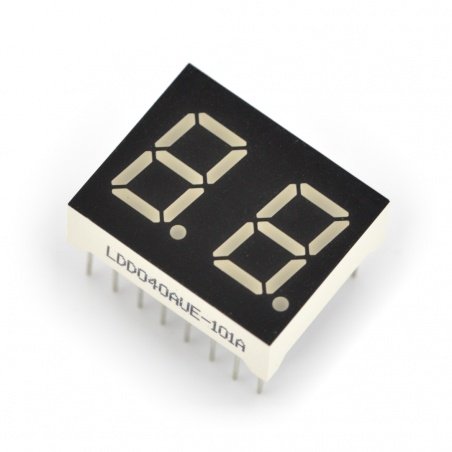

|17||7 segment display x2 - 10mm- dual display allows you to display two digits with dots and some letters.|

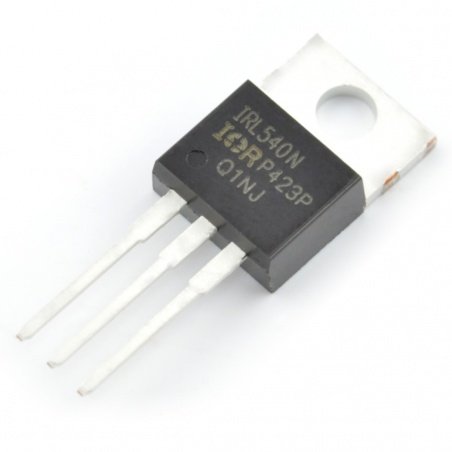

|18||Transistor N-MOSFET IRL540NPBF- with parameters: Vds: 100 V Id: 36A. Rdson: 0,044 Ohm. In the case: TO-220.|
|19||Electrolytic capacitors- 10 PCs - 100uF/35V 105C THT|
|20||Fixed resistors - 30 PCs - 10 kω, 1/4 W|
|21||Fixed resistors- 30 pieces - 1.0 kW, 1/4 W|
|22||Fixed resistors- 30 PCs - 4.7 kω, 1/4 W|

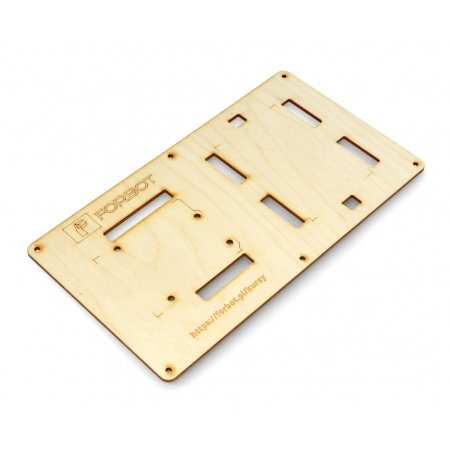

|23||Pad made of plywood - with the ability to mount the breadboard and the Arduino module.|

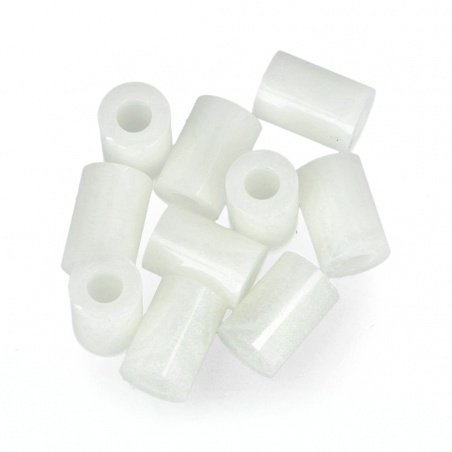

|24||Nylon distances - 10 pieces - made of plastic, allow for installation of Arduino tile to mount|

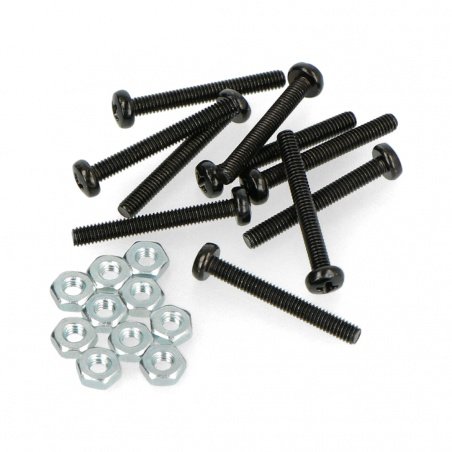

|25||Screws and nutsfor mounting the Arduino.|

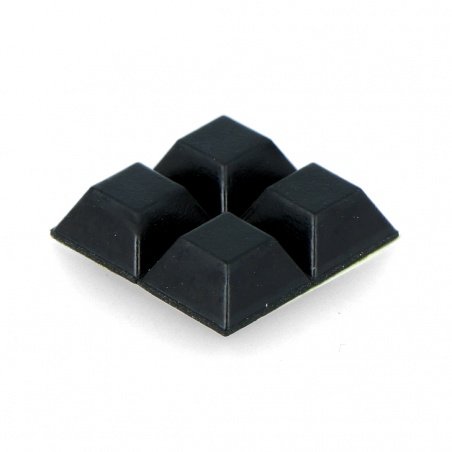

|26||Square feet, self-adhesive- 8 pieces - as mounts for the disk on which the projects will be done.|
|27||A trunkfor carrying items of kit.|
