Description

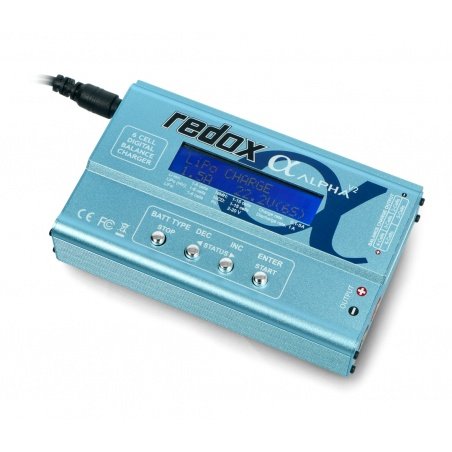

Charger/discharger with built-in balancer of links Redox Alpha, is a great choice for the beginning and advanced robotic engineers and modelers. It has a user interface with backlight that allows selection of parameters and continuous monitoring of battery status during charging. The set also includes a dedicated 230 V power supply.
Specification
- Working voltage of the charger: DC 11 V to 18 V
- Output power:
- max. charging power 50 W
- max. discharge power 5W
- Charging current: from 0.1 A to 5.0 A
- Discharging current: 0.1 A to 1.0 A
- The number of supported NiCD / NiMH links: 1-15
- The number of supported Li-Po / Fe / Ion cells: 1-6
- Supported batteries Pb: 2 V to 20 V
- Built-in memory of the charger: max. 5 packages
- Function of cycling of the packages
- 4 programming buttons
- Dimensions: 134 x 86 x 28 mm
- Weight (without wires): 400 g

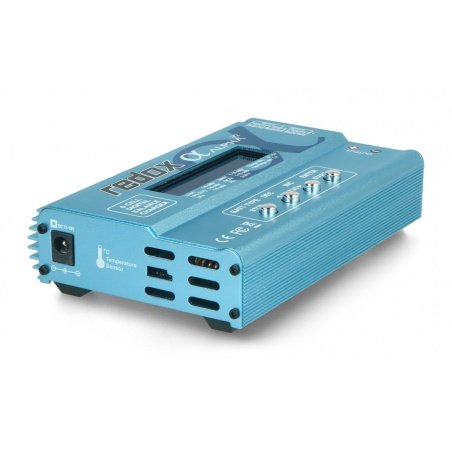

- Built-in slots:
- slot for balancer 2s, 3s, 4s, 5s, 6s
- slots for plugs Gold 4 mm
- slot of Jack type (power supply 12 V DC)
- slot for an additional temperature sensor
The contents of the set:
- Redox Alpha V2
- Redox AC / DC 230 V 5 A power supply
- 12V DC power cord (Jack - Crocodile clips)
- 1 x Gold 4 mm adapter - DEAN plug
- Additional extension adapters for the Gold 4 mm adapter - DEAN plug:
- 1 x DEAN Socket Adapter - Crocodile Clips
- 1 x Adapter DEAN Socket - Servo Socket (futaba)
- 1 x Adapter Socket DEAN - XT60
- 1 x Adapter DEAN Socket - Tamiya Plug (large)
- User manual in Polish
