Grove - force sensor FSR402 with module - 2kg

Index: SEE-12595
BOTLAND B. DERKACZ SPÓŁKA JAWNA Opinie z ekomi-pl.com

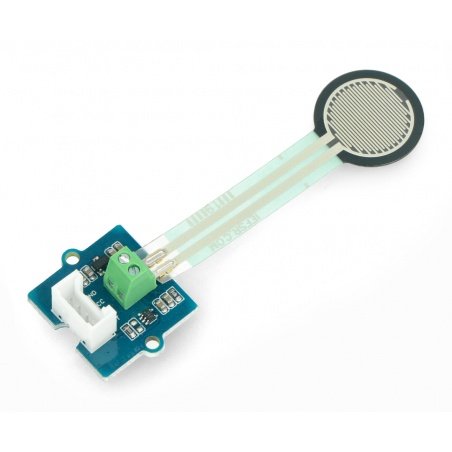

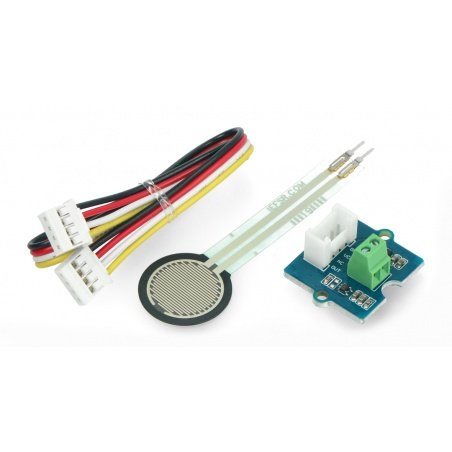

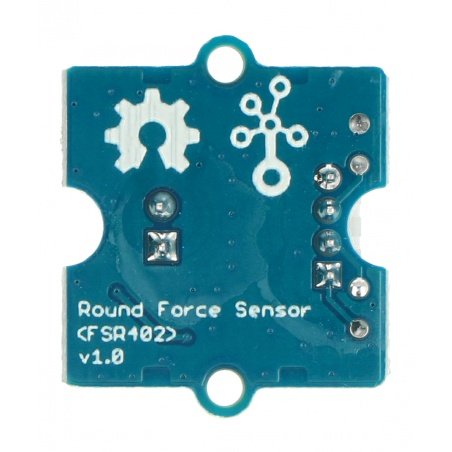

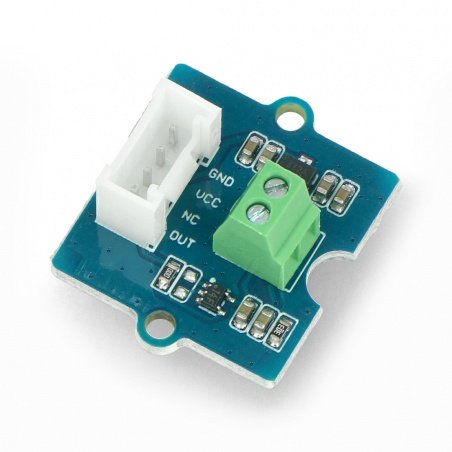

Module from the Grove series, is equipped with a sensor of pressure force FSR402. The sensor communicates with the analog voltage signal.

It is able to detect a pressure in the range from 0.2 N to 20 N. It is supplied with the voltage from 3.3 V to 5V. It has an analog output that makes it compatible with most of the commissioning modules, including Raspberry Pi and Arduino.

€13.25
€10.77 tax excl.

In stock, shipping 24 hours!
(Check quantity)
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Seeedstudio
Compatibility: Arduino Raspberry Pi

Description

Module from the Grove series, is equipped with a sensor of pressure force FSR402. The sensor communicates with the analog voltage signal. It is able to detect a pressure in the range from 0.2 N to 20 N. It is supplied with the voltage from 3.3 V to 5V. It has an analog output that makes it compatible with most of the commissioning modules, including Raspberry Pi and Arduino.

Connection

The module is equipped with Grove interface that facilitates its connection tothe Arduinoalong withBase Shield v2.0orRaspberry using Hat from GrovePi+.

Czujnik siły nacisku

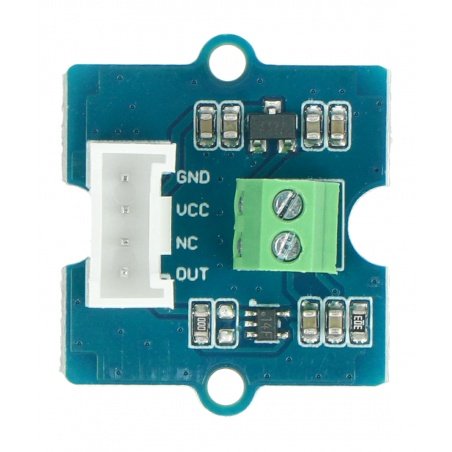

Pin Description
GND The ground of the system.
VCC Supply voltage of 3.3 V or 5 V.
NC Not connected.
OUT The output signal.

The product is compatible with Arduino

The manufacturer provides auser manualforArduino.

Specification

  • Supply voltage: 3.3 V or 5 V
  • Pressure sensor: FSR402
  • Analog output: 0 to 650
  • Sensitivity range: from 0.2 N to 20 N
  • Dimensions: 20 x 20 x 13 mm
  • Weight: 9 g

Sensor - type force
