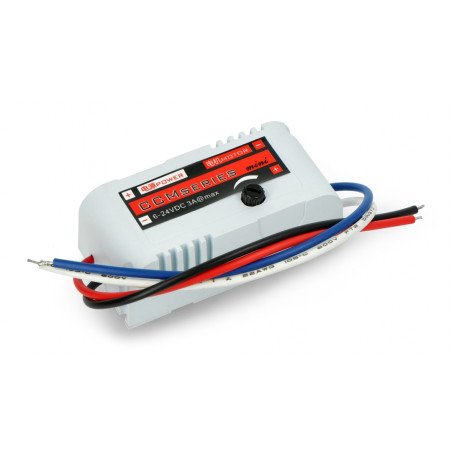

PWM motor driver DC 6-24V / 3A / 72W - with a speed control knob

Index: PLL-06667

Module with built-in rotary potentiometer for DC motor speed control by filling the PWM signal. It operates with motors from 6 V to 24 V up to 72 W (current consumption up to 3 A).

€7.42
€6.03 tax excl.

Available, 24h shipping!
(Check quantity)
Shipping in 24 hours
30-day returns

Product description: DC motor controller 6-24 V / 3 A / 72 W - with speed control knob

Module with built-in rotary potentiometer for DC motor speed control by filling the PWM signal. It operates with motors from 6 V to 24 V up to 72 W (current consumption up to 3 A).

Specification

  • Adjustment range: 6 V to 24 V
  • Current: up to 3 A
  • Power: up to 72 W
  • Connection through wires with insulation removed (16 cm each):
  • Dimensions: 66 x 32 x 23 mm

terownik silnika DC 6-24V / 10 A / 72W - z gałką do regulacji prędkości

Connection

The module has four leads in the form of wires with the insulation removed.

The cableDescription
Red Module supply voltage.
Black The weight of the system.
White The engine's out.
Green The engine's out.
Knob Potentiometer for motor speed control.

Voltage to 6.0 V
Voltage from 24.0 V
Current 4 A
Channels 1
Manual adjustment yes
