Description

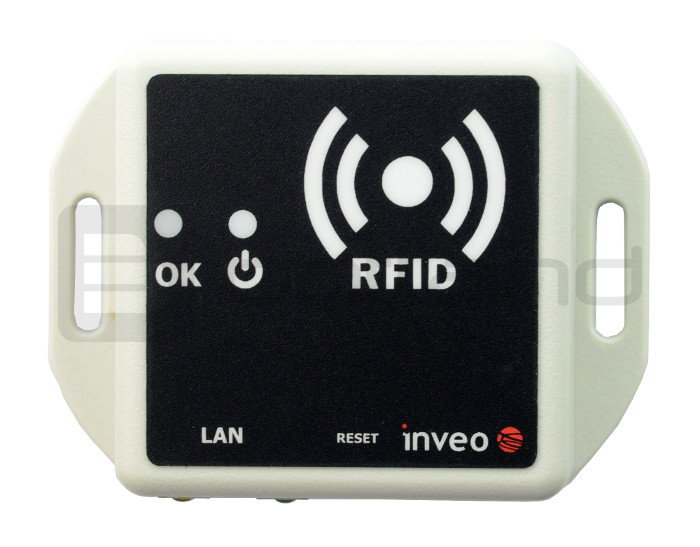

Inveo module that enables reading of transponders in Unique standard via Internet. It was created with the aim of integrating with the client's software. Supply voltage from 12V to 24V via DC Jack or PoE.
Communication with the device can be accomplished in several ways:
- using the built-in WEB server
- HTTP client mode or server
- using the MODBUS TCP Protocol
- using the SNMP Protocol
| The manufacturer provides a detailed manual for the Nano RFID module. |
Specification
- Supply voltage: from 12V to 24V (DC Jack or PoE)
- Power: 1.5V
- Interface: RJ45 (10Base-T)
- Standard for reading tags: Unique
- Reading distance: 8cm
- Supported protocols:
- HTTP
- TCP
- SNMP
- MODBUS TCP
- Operating temperature: 5°C to 50°C
- Dimensions: 66 x 50 x 20mm

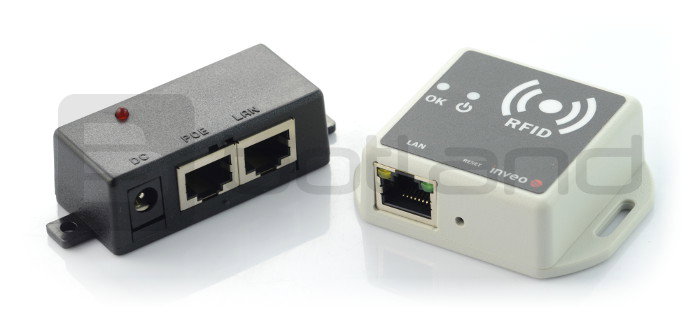

Included
- Nano RFID
- Power module
