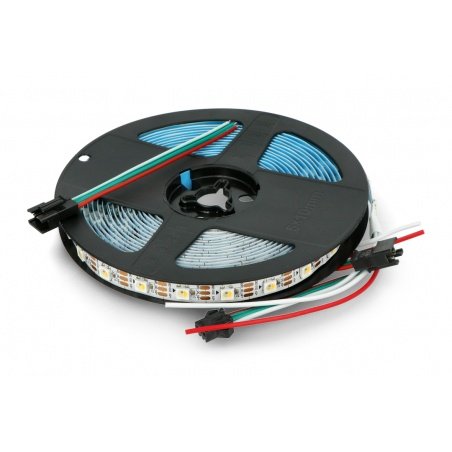

RGBW LED strip SK6812 - digital, addressed - IP30 60 LED / m, 5V - 5m - white

Index: DNG-18695 EAN: 5903351247450
BOTLAND B. DERKACZ SPÓŁKA JAWNA Opinie z ekomi-pl.com
Digital RGBW LED strip allowing for individual control of each diode. It has been equipped with SK6812 chip. On one meter of the strip there are 60 LEDs. The diodes can be freely programmable, accepting color from a 24-bit color palette. A voltage of 5 V is used to power the chain, and the power consumption is 18 W per meter of the strip. The control is done by a single microcontroller pin connected to the strip. The distance between the individual diodes is about 17 mm.
PLN202.44
PLN202.44 tax excl.
Unavailable
Waiting for delivery
30-day returns
PayPal payment
Manufacturer: BTF-LIGHTING

Product description: RGBW LED strip SK6812 - digital, addressable - IP30 60 LED/m, 5V - 5m - white

Digital RGBW LED strip allowing for individual control of each diode. It was equipped with a chip SK6812. On one meter of the strip there are 60 LEDs. The diodes can be freely programmable, they adopt colours from a 24-bit colour palette. A voltage of 5 V is used to power the chain, and the power consumption is 18 W per meter of the strip. The control is done by a single microcontroller pin connected to the strip. The distance between the individual LEDs is about 17 mm.

Pasek LED można przycinać do dowolnej długości. Należy skracać go po każdej diodzie w oznaczonym miejscu.

The LED strip can be cut to any length. It should be shortened after each diode in the marked place.

Combining several strips

LED strips can be connected together in series. The next string should be connected with the output connector. The 5 V, GND and DOUT leads of the DIN must be connected. When using 500 or more LEDs, the RAM available to the Arduino UNO may not be sufficient. In such a situation, use a controller with more RAM such as Arduino Mega or Raspberry Pi minicomputer. Connecting more LEDs is also associated with higher power consumption.

How to connect the LED strip

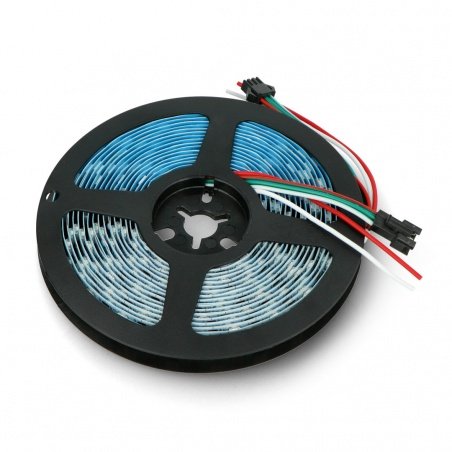

The strip has a 3-pin connector with the following leads:

  • GND (white wire) - module ground.
  • 5 V (red wire) - supply voltage, for one strip you should connect a source with current capacity of at least 1.8 A per meter.
  • DAT (green wire) - digital control signal from the microcontroller.

Product compatible with Arduino and Raspberry Pi

Schemat podłączenia paska.Circuit diagram of the strip.

Zagęszczenie wynosi 60 diod LED na metr paska.

The density is 60 LEDs per meter of strip.

Installing Adafruit library for Arduino

  1. Download the library from GitHub by expanding the green Code button, then selecting Download ZIP
  2. Unzip the downloaded ZIP file (you should see a folder containing the files: Adafruit_NeoPixel.cpp, Adafruit_NeoPixel.h and other subfolders)
  3. Rename the main folder to: Adafruit_NeoPixel
  4. Move this folder to Arduino libraries directory
  5. Restart your Arduino environment, the library will appear in Menu: File -> Examples

First time run - simple example

  • Run the test program by selecting in the Arduino environment:
    • File -> Examples -> Adafruit_Neopixel -> simple
  • Select the pin from which the diodes will be controlled. By default it is pin 6:
    • Line11 #define PIN 6
  • Select the number of pixels to be controlled. The default is 16:
    • Line 14 #define NUMPIXELS 16
  • Upload the program to Arduino. The pixels should switch on one by one up to the number you specified in line 14.
  • If you want to change the light color specify other values in the function:
    • Line 40 pixels.setPixelColor(i, pixels.Color(0,150,0))
      The RGB components are given in brackets, the maximum value of each component is 255
  • Changing the lighting speed of individual pixels is possible by editing the values:
    • Line 21 int delayval = 500;

LED strip specification

  • Supply voltage: 5 V
  • Power: 90 W
  • Current consumption: 3.6 A/m
  • Addressable pixel: 1 RGBW diode
  • Level of security: IP30
  • PCB color: white
  • Chain length: 5 m

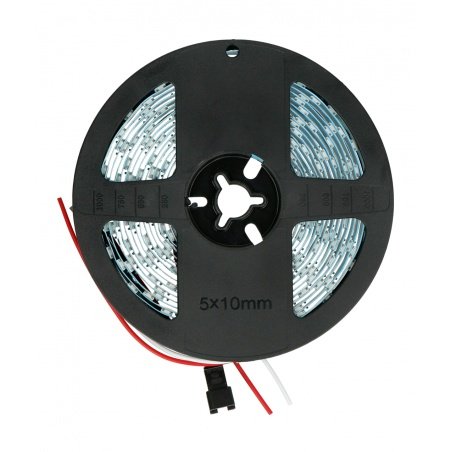

Pasek nawinięto na wykonaną z tworzywa sztucznego rolkę, która ułatwia transport i przechowywanie paska.

The product is wound on a roll for easy transport and storage.

Cable length 5.0 m
Voltage to 5.0 V
Voltage from 5.0 V
Nominal power 90 W
Tightness class IP30
LED - color RGBW
LED - type SK6812
LED - digital yes
