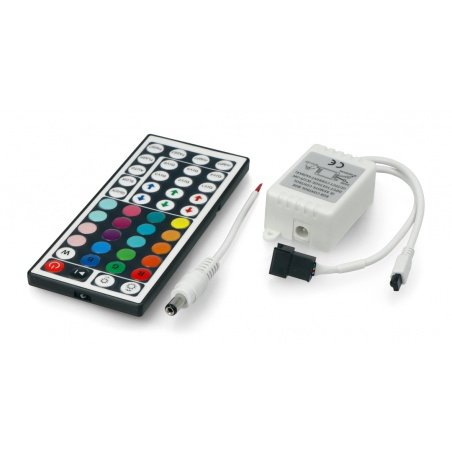

LED RGB strip driver with IR remote - 44 keys

Index: LED-06489

A module that allows you to control the brightness of monochrome panel with LED backlight and brightness and LED RGB color panel. It has lots of preset functions. Equipped with a 4-pin screw terminal power connector Jack DC IN. The controller is supplied with an IR remote control.

€6.95
€5.65 tax excl.

In stock, shipping 24 hours!
(Check quantity)
Shipping in 24 hours
30-day returns

Description

A module that allows you to control the brightness of monochrome panel LED and brightness and RGB LED panel. It has lots of preset functions. Equipped with a 4-pin screw terminal power connector Jack DC IN. The controller is supplied with an IR remote control.

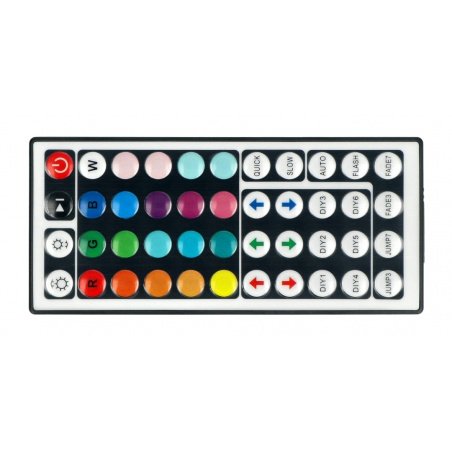

Functions of remote control

  • ON / OFF - switching on and off
  • PAUSE / PLAY - start and stop sequence
  • SPEED - / SPEED + - speed management sequence
  • 20 buttons with fixed colors:
    • Red
    • Green
    • Blue
    • White
    • + after the 4 shades of each of these colors
  • Buttons to control the degree of illumination
  • AUTO - display mode demostracyjnego
  • FLASH - strobe function for white color
  • JUMP3 - activator RGB color
  • JUMP7 - activator colors: white, blue, yellow, green, purple, blue, red
  • FADE3 - activator of RGB colors with a smooth transition
  • FLASH - strobe function for the following colours: white, red, green, yellow, blue, purple, turquoise
  • FADE7 - launching crossfading the following colors: red, yellow, green, cyan, blue, purple, white
  • 6 DIY button for define custom colors and store them in memory
  • 6 buttons to change the intensity of RGB colors


Specification

  • Input voltage: 12 to 24V DC
  • Output voltage: 12 to 24V DC
  • Output: 3 channels
  • the maximum drive current of 2 A for each channel
  • Operating temperature: -20 °C to 60 °C
  • Dimensions: 50 x 35 x 22 mm
  • Weight: 25 g


Our product range includes connectors for the appropriate driver.
