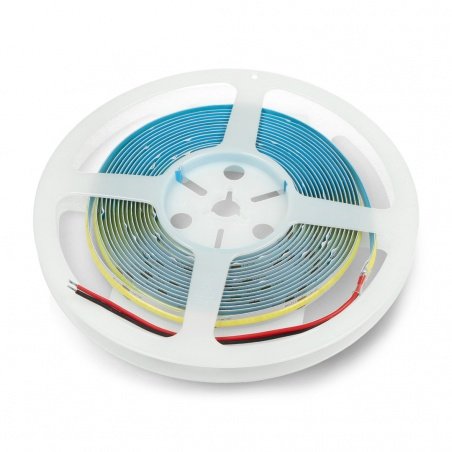

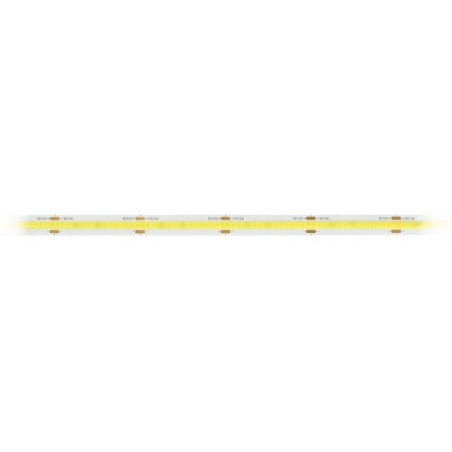

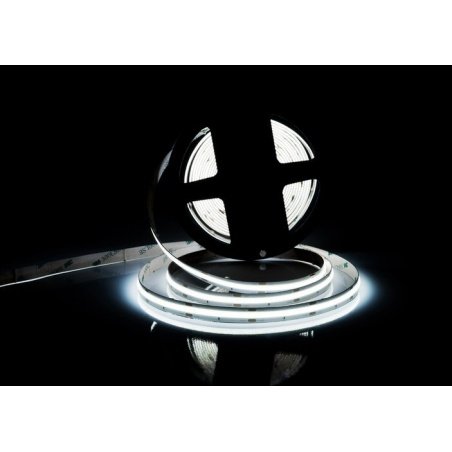

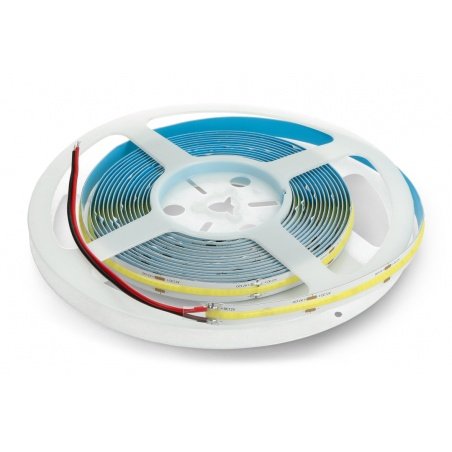

Product description: LED strip COB 12 V IP20 10 W/m 480 LEDs/m - cold white color - 5 m
High quality LED strip with a length of 5 m with 480 LEDs on one meter spaced at 25 mm. The diodes emit white light with a cold color with an angle of 120°. They have a low power consumption of 10 W/m. Recommended supply voltage is12 V. The strip has an ingress protection class IP20 and energy class A+.
A roll of 5 m has 480 diodes on each metre.Technical specification
- LED type: COB
- Light Colour: white
- Colour: cold
- Light colour: from 6100 K to 6500 K
- Substrate colour: white
- Luminous angle: 120°
- Supply voltage: 12 V DC
- Recommended power supply current: 0.83 A/m
- Power consumption: 10 W/m
- Voltage drop:< 0,5 V
- CRI color rendering index: >90
- Luminous flux: 1000 lm/m
- Operating temperature: from -40°C to 60°C
- Double PCB laminate
- Degree of protection: IP20
- Energy class: A+
- Diode pitch: every 25 mm
- Density: 480 diodes/m
- Roll length: 5 m
- Strip width: 8 mm
- Dimensions per diode: 2.8 x 3.5 x 3 mm
