Voltage monitoring module - for intelligent robots - DFRobot DFR0673

Index: DFR-19013 EAN: 5903351246637
BOTLAND B. DERKACZ SPÓŁKA JAWNA Opinie z ekomi-pl.com
A module that allows real-time voltage monitoring. Designed for intelligent robots that are powered by batteries and rechargeable batteries. Its task is to protect against excessive discharge, by continuously monitoring voltage of power supply elements. The module detects DC voltage in the range of 2.5 V to 30 V DC. It does not require an external power source, because it draws energy from the monitored element. The measured values are presented on a 0.36'' segmented display with red LEDs. The measurement error is approximately 1%.
€4.48
€3.64 tax excl.

Available
(Check quantity)
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: DFRobot

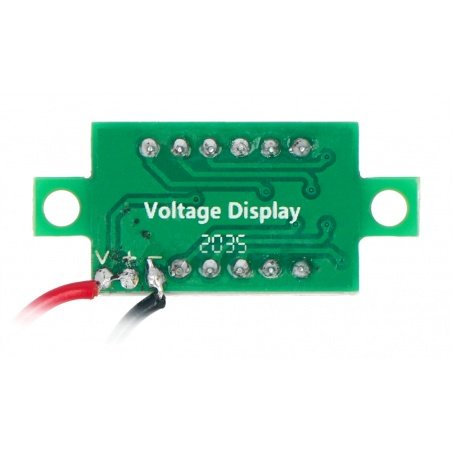

Product description: Module for voltage monitoring - for intelligent robots - DFRobot DFR0673

A module that allows you tomonitor voltage in real time. Designed forintelligent robots that are powered bybatteriesand rechargeablebatteries. Its task is, among others, toprotect against excessive discharge, by continuously monitoring the voltage of power supply elements. The module detects DC voltage in the range of2.5 V to 30 V DC. It does not require an external power source, because it draws energy from the monitored element. The measured values are presented on a 0.36'' segmenteddisplaywith red LEDs. The measurement error is approximately1%.

Moduł do monitorowania wyprodukowany przez DFRobot pozwala obserwować napięcie w czasie rzeczywistym, co przyczynia się do optymalizacji pracy monitorowanego urządzenia.

The monitoring module produced by DFRobot allows to observe the voltage in real time, which contributes to optimizing the operation of the monitored device.

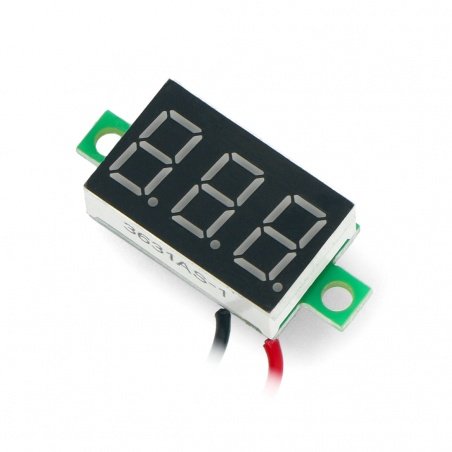

Wyświetlacz segmentowy prezentuje pomiar za pomocą czerwonych diod LED.

The segmented display shows the measurement by means of red LEDs.

Technical specifications of the monitoring module

  • Voltage detection range: from 2.5 V to 30 V DC
  • Supply voltage: from 2.5 V to 30 V DC (taken from the monitored component)
  • Maximum input voltage: 30 V DC (higher voltage may permanently damage the product)
  • Measurement error: ± 1%
    • voltage > 10 V - measurement error ± 0,3 V
    • voltage < 10 V - measurement error ± 0,10 V
  • Input impedance: > 100 kΩ
  • Operating current: < 23 mA
  • Refresh rate: approximately 300 ms
  • Display type: segmented with LEDs
  • Display diagonal: 0.36''
  • Number of displayed digits: 3
  • LED colour: red
  • Working temperature range: from -10°C to 65°C
  • Cable length: 20 cm
  • Module dimensions: 23 x 15 x 10 mm
  • Module dimensions with mounting brackets: 33 x 15 x 10 mm

Kit contents

  • Voltage Monitoring Module from DFRobot
  • Mounting bracket
  • Mounting elements:
    • copper spacer - 2 pcs.
    • Mounting screws - 4 pcs.

In our shop you will also find intelligentmicro:Maqueenrobots.

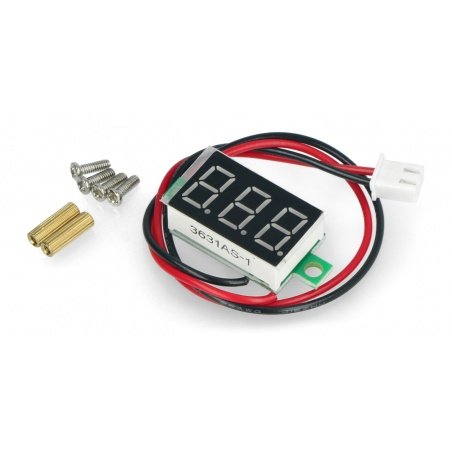

Do zestawu dołączono niezbędne elementy montażowe w postaci miedzianych tulei dystansowych i śrubek.

The kit includes the necessary mounting elements in the form of copper spacers and screws.
