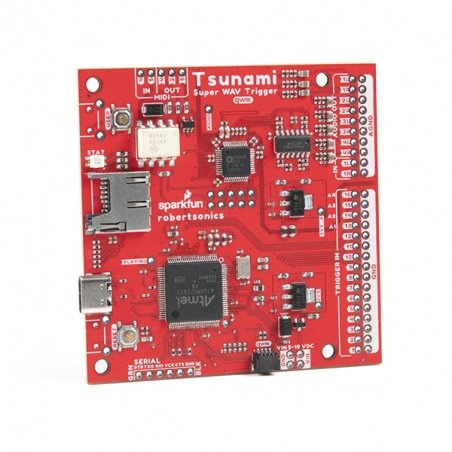

Tsunami Super WAV Trigger Qwiic - WAV Player - SparkFun WIG-18159

Index: SPF-20233
BOTLAND B. DERKACZ SPÓŁKA JAWNA Opinie z ekomi-pl.com
Tsunami Super WAV Trigger Qwiic is a WAV player produced by SparkFun. Based on a new generation ARM Cortex M7 processor and equipped with convenient Qwiic connectors. It expands polyphony up to 4096 uncompressed 16-bit, 44.1 kHz mono or stereo WAV files in CD quality. It lets you play and mix files, start and stop them independently at any time, loop them at any point in the track, and adjust the volume, leading to an interactive mix of music, dialogue, and sound effects.
€103.28
€83.96 tax excl.
On request. Waiting time 4-6 weeks.
Waiting for delivery
30-day returns
PayPal payment
Manufacturer: SparkFun

Product description: Tsunami Super WAV Trigger Qwiic - WAV player - SparkFun WIG-18159

Tsunami Super WAV Trigger Qwiic is a WAV player produced by SparkFun. Based on new generation ARM Cortex M7 processor, equipped with convenient Qwiic connectors. It expands polyphony up to 4096 uncompressed 16-bit, 44.1 kHz mono or stereo WAV files in CD quality. Allows you to play and mix files, start and stop them independently at any time, loop them at any point in the track, and adjust the volume, leading to an interactive mix of music, dialogue and sound effects.

Product compatible with Arduino IDE

A detailed user guide is available on the manufacturer's website. It includes information such as hardware overview, assembly, and instructions for connecting the player.


Tsunami Super WAV Trigger Qwiic - odtwarzacz WAV.
Tsunami Super WAV Trigger Qwiic - WAV player.

Special features of the WAV player

  • Supports up to 4096 uncompressed 16-bit, 44.1 kHz mono or stereo WAV files in CD quality
  • Polyphonic - allows you to play and mix 32 mono or 18 stereo tracks, independently and at the same time
  • Dynamic routing to 8 mono or 4 stereo outputs
  • Seamless looping of a song on any track length
  • Adjust volume and playback speed in real time
  • Pause and resume individual tracks or entire lists
  • Minimum audio trigger delay: 8 ms typical, 12 ms maximum
  • Output volume adjustable from +10 dB to -70 dB
  • Programmable using Arduino IDEenvironment

Tsunami Super WAV Trigger only works correctly if the microSD card is formatted with the correct file allocation size (32 kB). If this is set incorrectly during formatting,Tsunami Super WAV Trigger will work inconsistently and will start to hang during use.

Technical Specifications Tsunami Super WAV Trigger Qwiic

  • Processor: ARM Cortex M7
  • Input voltage range: 5 V to 10 V
  • Input connector: USB Type C and PTH
  • Playback of up to 4096 uncompressed files:
    • 18 stereo WAV files
    • 32 mono WAV files
  • Audio outputs:
    • 8-channel (mono)
    • 4-channel (stereo)
  • Audio input: line-level stereo
  • Interfaces:
    • Trigger: 16 (3.3 V)
    • Serial: yes (3.3 V)
    • Qwiic (I2C): yes (3.3 V)
  • I2C interface address: 0x13 (default)
  • Status indication: RGB LED
  • Hot-swappable microSD card: yes (using RESET button)
  • Software update: via microSD card
  • MIDI: dedicated I/O pins
  • New audio codec
  • Digital filters
Tsunami Super WAV Trigger Qwiic - odtwarzacz WAV - widok z tyłu.

Tsunami Super WAV Trigger Qwiic - WAV player - rear view.
