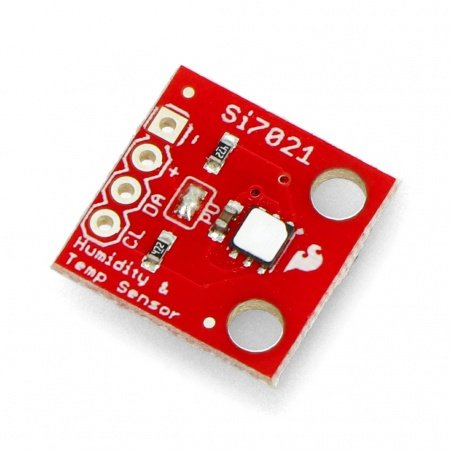

Humidity and Temperature Sensor Breakout - Si7021 - SparkFun SEN-13763

Index: SPF-06554 EAN: 5904422375126

Humidity and temperature sensor powered by the voltage from 1.9 V to 3.6 V with I2C interface. The measurement of temperature is from -10°C to 85°C, humidity from 0 to 80% RH.

Humidity and Temperature Sensor Breakout - Si7021 - SparkFun SEN-13763
€14.90 -5%
€14.16
€11.51 tax excl.
Lowest price 30 days: €13.57
Available
Shipping in 24 hours
PayPal payment
Manufacturer: SparkFun
Compatibility: Arduino Raspberry Pi

Description

Easy to use temperature and humidity sensor, powered by 2.5 V to 5.0 V. Communicates through an I2C interface. The sensor is used, i.a. for meteorological stations and systems of control of the conditions in the premises.


For proper operation, it is sufficient to connect power and I2C bus lines: of SDA data and of SCL clock. On board mounted are resistors pulling-up the 4.7 kΩ, if other devices are attached to the I2C bus, these resistors can be disabled.



The product is compatible with Arduino

The manufacturer has prepared auser guideanda library along with a sample programfor Arduino users.



Pins are the solder fields, for solderinggoldpin connectors- pitch of 2.54 mm. Therefore, it is possible to connect the system with the breadboardor the main module, usingwires. The set does not containgoldpin connectors, you can purchase them separately.

Specification

  • Supply voltage: 1.9 to 3.6 V
  • Current consumption: 150 µA
  • Current consumption in sleep mode: up to 60 nA
  • Module dimensions: 15 x 15 mm
  • Two mounting holes with a diameter of 3 mm
  • Temperature
    • Measuring range: -10 to 85°C
    • Resolution: 11 to 14 bit (max. of 0.01°C)
    • Accuracy: ± 0,4°C
  • Humidity:
    • Measuring range: 0% RH to 80%RH
    • Resolution: from 8 to 12 bits (max. ±0.025%RH)
    • Accuracy: ± 3%RH*



*RH - relative humidity is expressed in percents. It is the ratio of actual humidity in the air to its maximum number that can keep the air at a given temperature.



Interface I2C
Sensor - Temperature to 85 °C
Sensor - Temperature accuracy +/- 0.4 °C
Sensor - Temperature from -10 °C - 85 °C
Package width 4 cm
Package height 2.2 cm
Package depth 4 cm
Package weight 0.001 kg
