Product description: NanoPi NEO3-LTS - RK3328 Quad-Core 1,3 GHz + 1 GB RAM

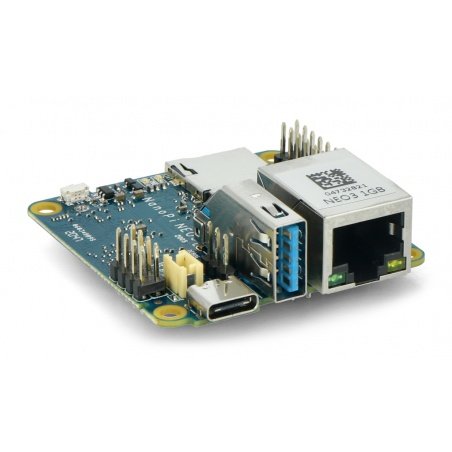

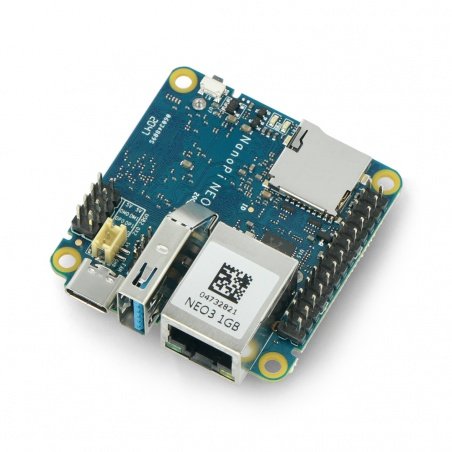

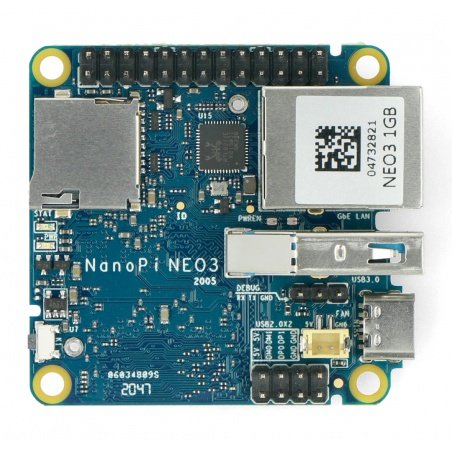

NanoPi Neo3 minicomputer is based on the RockChip RK3328 ARM Cortex-A53 processor clocked at 1.29 GHz. It features 1 GB of DDR4 RAM, a Gigabit Ethernet port with a unique MAC address, a USB 3.0 slot, a USB Type-C power slot, a microSD card slot and 26 GPIOs. The module runs the FriendlyWrt / Ubuntu operating system.
What you need to run NanoPi Neo3?
- MicroSD memory card - the carrier of the operating system.
- AC adapter with microUSB plug - 5V with 1A current capacity with USB type C connector.
Operating system for NanoPi
NanoPi minicomputer works with systems prepared by the manufacturer: FriendlyWrt and Ubuntu. The operating system can be installed on a microSD memory card.
Communication of NanoPi Neo3 minicomputer
The module is equipped with communication interfaces that can be found on standard PCs.
- 1x USB 3.0 type A + 2 USB 2.0 ports on 2.54 mm pins, where you can connect WiFi adapter, mouse or keyboard. The number of connectors can be increased by using the USB hub.
- 1x Ethernet 1 Gb/s socket for wired LAN connection.
- GPIO x 26 pins - general purpose inputs / outputs, which can be used to operate LEDs, buttons, motor drivers. These include such interfaces as I2C, I2S, SPI and UART.
- MicroSD card slot - a slot for a microSD card which is a carrier for the operating system.
|Comparison of NanoPi Neo2 and NanoPi Neo3|
|Model||NanoPi Neo2||NanoPi Neo3|
|Processor||Allwinner H5||RockChip RK3328|
|Architecture||Cortex A53||Cortex A53|
|Clocking||400 MHz to 1.2 GHz||400 MHz to 1.296 GHz|
|Core voltage||1.1 V / 1.3 V, two-step voltage adjustment||0.96 V to 1.3 V, 6-level dynamic scaling and voltage adjustment|
|Number of cores||4||4|
|Memory bus||DDR3 16-bit||DDR4 32-bit|
|RAM Frequency||504 MHz||786 MHz to 1056 MHz, dynamic scaling|
|Ethernet||10/100/1000 Mb/s, software generated MAC address||10/100/1000 Mb/s, unique MAC address|
|USB||USB 2.0||USB 3.0|
|Power connector||microUSB||USB type C|
|OS||FriendlyWrt / Ubuntu core 16.4||FriendlyWrt / Ubuntu core 18.04|
|Dimensions||40 x 40 mm||48 x 48 mm|
NanoPi Neo3 specification
- CPU: RockChip RK338 ARM Cortex A53 Quad-Core 1.3 GHz
- RAM: 1 GB DDR4
- MicroSD slot
- Ethernet: 10/100/1000 Mbps with unique MAC
- 1x USB 3.0
- 2x USB Host on 2.54 mm pin
- USB Type C for power
- Pin Connector: 26-pin GPIO 2.54mm I2C, I2S, SPI, UART
- PWR LED (red)
- STAT LED (green)
- Button: 1x general purpose button
- Operating temperature: from -20°C to 70°C
- Power supply: 5 V / 1 A USB C
- PCB: 6 layers
- Dimensions: 48 x 48 mm
- Weight: 22 g
