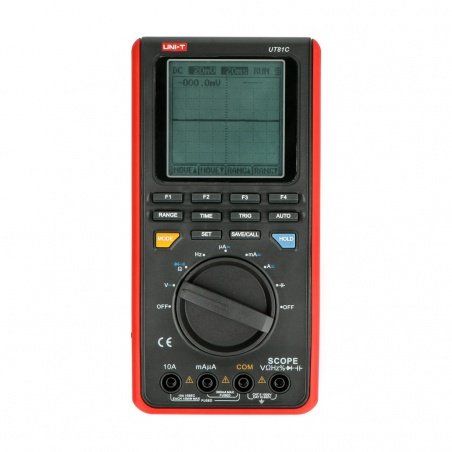

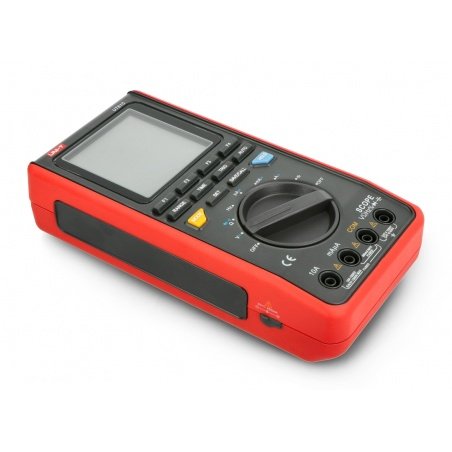

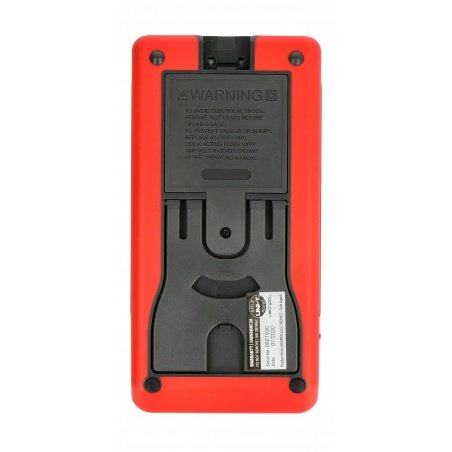

Oscilloscope with meter function UNI-T UT81C
Oscilloscope with meter function UNI-T UT81C
Oscilloscope with meter function UNI-T UT81C
Oscilloscope with meter function UNI-T UT81C
Oscilloscope with meter function UNI-T UT81C
Oscilloscope with meter function UNI-T UT81C - zdjęcie 1
Oscilloscope with meter function UNI-T UT81C - zdjęcie 2
Oscilloscope with meter function UNI-T UT81C - zdjęcie 3
Oscilloscope with meter function UNI-T UT81C - zdjęcie 4
Oscilloscope with meter function UNI-T UT81C - zdjęcie 5

Oscilloscope with meter function UNI-T UT81C

Index: LEC-18494 EAN: 5903351246477
BOTLAND B. DERKACZ SPÓŁKA JAWNA Opinie z ekomi-pl.com
Two measuring instruments in one device: a digital oscilloscope with universal measuring function. The multifunctional automatic multimeter has a comfortable monochrome LCD display with a resolution of 160 x 160 px. It allows you to measure AC/DC voltages, AC/DC currents, frequency, capacity, pulse fill factor, resistances, test diodes, and check the continuity of the circuit. It has a bandwidth of 16 MHz and a real sampling rate of 802 MSa/s. It enables measurements of AC/DC electric motors, transducers and other industrial equipment. The meter is powered by four 1.5 V (R6) batteries, which are included in the set.
PLN795.93
PLN795.93 tax excl.

Available
(Check quantity)
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: UNI-T

Product description: Oscilloscope with meter function UNI-T UT81C

Two measuring instruments in one device: a digital oscilloscope with universal measuring function. The multifunctional automatic multimeter has a comfortable monochrome LCD display with a resolution of 160 x 160 px. It allows you to measure AC/DC voltages, AC/DC currents, frequency, capacity, pulse fill factor, resistances, test diodes, and check the continuity of the circuit. It has a 16 MHz bandwidth and a real sampling rate of 80 MSa/s. It enables measurements of AC/DC electric motors, transducers and other industrial equipment. The meter is powered by four 1.5 V (R6) batteries, which are included in the set.

Oscyloskop z miernikiem UNI-T UT81C.

Oscilloscope with UNI-T UT81C meter.

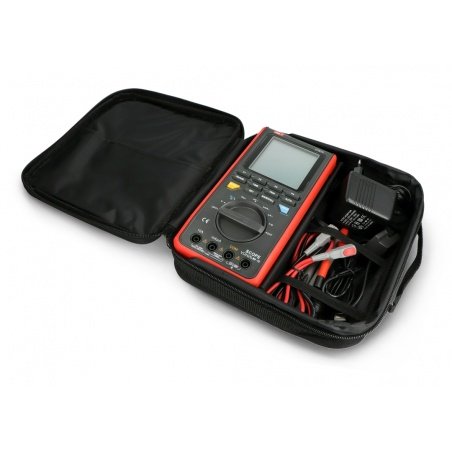

W zestawie znajduje się wygodny pokrowiec do przechowywania urządzenia i akcesoriów.

The set includes a convenient case for storing the device and accessories.

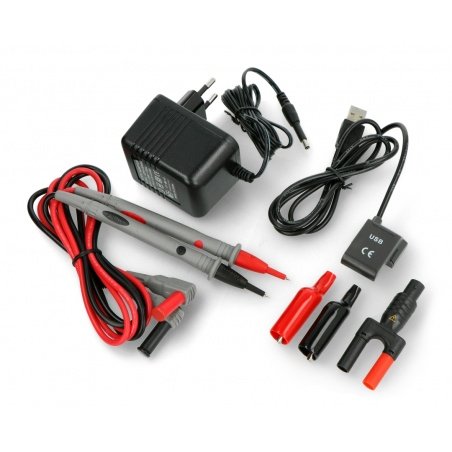

Set contents

  • UT81C meter
  • Test leads - 1 set
  • Power supply
  • USB connection cable
  • BNC banana adapter
  • Crocodiles - 1 set
  • Device cover and accessories
  • Battery 1.5 V R6 - 4 pcs.
  • Operating instructions

Technical Specification UNI-T UT81C

Parameter Scope
Bandwidth 16 MHz
Sampling 80 MSa/s (real time)
DC DC voltage 400 mV / 4 V / 40 V / 400 V / 1000 V ±(0.8%+8)
AC alternating voltage 4 V / 40 V / 400 V / 750 V ±(1%+15)
DC current intensity 400 µA / 4000 µA / 40 mA / 400 mA / 4 A / 10 A ±(1%+8)
AC current intensity 400 µA / 4000 µA / 40 mA / 400 mA / 4 A / 10 A ±(1.5%+8)
Resistance 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ ±(1%+5)
Capacity 40 nF / 400 nF / 4 µF / 40 µF / 100 µF ±(3%+8)
Frequency 0 to 10 MHz ±(0.1%+3)
Operating temperature from 0°C to 40°C
Storage temperature from -10°C to 50°C
Automatic/manual range selection Yes
Transmission of data Yes
Automatic shutdown Yes
Diode tester Yes
Checking the continuity of the circuit Yes
Data Hold function Yes
Memory 10 screens and settings
Battery indicator Yes
Backlighting Yes
Trigger types Free Run / Normal / Single Shot
Display LCD 60 x 60 mm
resolution: 160 x 160 px
largest reading: 3999, 2-3 readings/sec.
Dimensions 200 x 100 x 48 mm
Power supply
  • battery 1.5 V R6 - 4 pcs.
  • mains adapter
Mass 498 g (with batteries)

Meter - DC voltage yes
Meter - Diode tester yes
Meter - Frequency yes
Meter - AC voltage yes
Meter - AC current yes
Meter - Capacitance yes
Meter - Auto Range yes
Meter - DC current yes
Meter - Resistance yes
Meter - Transistor tester yes
Meter - Inductance yes
Meter - Backlight yes
Meter - Data Hold yes
Oscilloscope - Type digital
