Transistor tester LCR-TC1
Transistor tester LCR-TC1
Transistor tester LCR-TC1
Transistor tester LCR-TC1 - zdjęcie 1
Transistor tester LCR-TC1 - zdjęcie 1
Transistor tester LCR-TC1 - zdjęcie 3

Transistor tester LCR-TC1

Index: DNG-18505 EAN: 5903351249218
BOTLAND B. DERKACZ SPÓŁKA JAWNA Opinie z ekomi-pl.com
Tester equipped with a large, clear 1.8" TFT display. It can be used to test various types of transistors and diodes, resistors, capacitors, inductors and batteries. In addition, the meter is equipped with an infrared receiver, which allows to check the proper operation of e.g. the remote control of a TV, home cinema or a set-top box. The meter is powered by a 1S lithium cell, the device also features a charging system with a microUSB port.
PLN72.36
PLN72.36 tax excl.
Unavailable
Waiting for delivery
30-day returns
PayPal payment

Product description: Transistor tester LCR-TC1

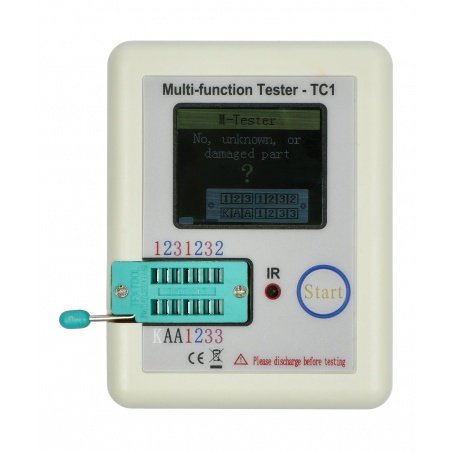

Tester equipped with a clear 1.8" TFT display. It can be used to test various types of transistors, diodes, resistors, capacitors, inductors and batteries. In addition, the meter has been equipped with an infrared receiver, which allows to check the correctness of operation of e.g. the remote control of a TV, home cinema or a set-top box. The meter is powered by a 1S lithium cell, the device also has a charging system with a microUSB port. The meter constantly informs the user about the current state of the battery, which significantly reduces the risk of unexpected discharging of the device. The operation of the device is incredibly simple, all you have to do is place the element you are interested in in the tester and run it with the "Start" button, the meter will automatically recognise the element and display the data characterising the given element.

Do ładowania miernika wykorzystywane jest złącze microUSB.

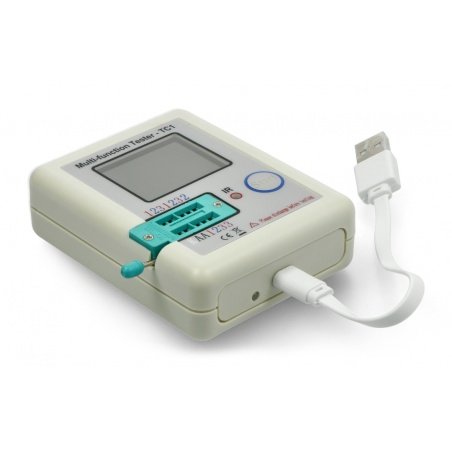

The microUSB connector is used to charge the meter.

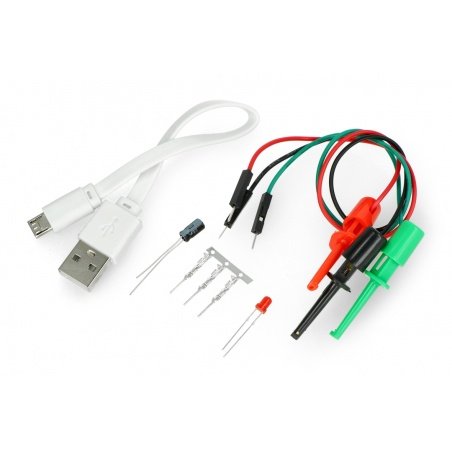

Additional accessories included in the set.

Technical specifications

  • Measurement ranges:
    • Resistance: from 0.01 to 50 MΩ
    • Capacitance: from 25 pF to 100 mF
    • Inductance: from 0.01 mH to 20H
    • Zener diode measuring range:
      • in K A connectors: from 0.01 to 30 V
      • in connectors: 1 2 3: from 0.01 to 4.5 V
    • Triac and thyristor range: IGT less than 6 mA
    • Transistor detection area: 0.01 to 4.5 V
  • Display: 1.8" TFT screen
  • Automatic switch off after 20 seconds of inactivity
  • Dimensions: 90 x 70 x 27 mm
  • Weight: 96 g
Meter - DC voltage no
Meter - Diode tester yes
Meter - Battery tester yes
Meter - Frequency no
Meter - AC voltage no
Meter - AC current no
Meter - Capacitance yes
Meter - Auto Range yes
Meter - DC current no
Meter - Resistance yes
Meter - Transistor tester yes
Meter - sound no
Meter - Inductance yes
Meter - Backlight yes
Meter - Temperature no
Meter - Data Hold yes
