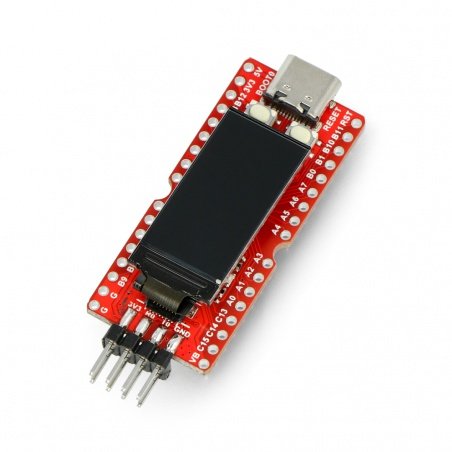

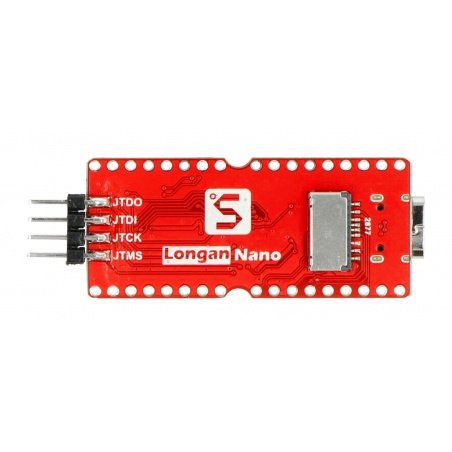

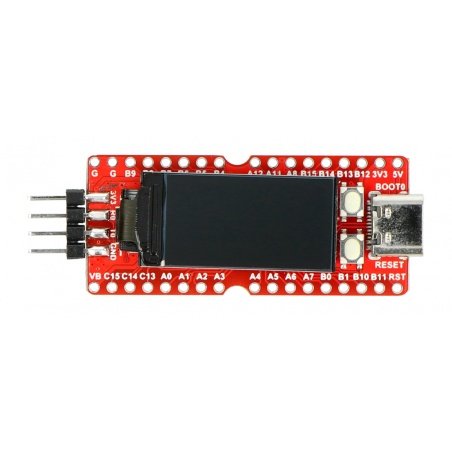

Sipeed Longan Nano RISC-V - GD32VF103CBT6 development board -
 - zdjęcie 1
 - zdjęcie 2
 - zdjęcie 3
Sipeed Longan Nano RISC-V - GD32VF103CBT6 development board - - zdjęcie 4
 - zdjęcie 5

Sipeed Longan Nano RISC-V - GD32VF103CBT6 development board - Seeedstudio 114992425

Index: SEE-18802 EAN: 5903351248600
BOTLAND B. DERKACZ SPÓŁKA JAWNA Opinie z ekomi-pl.com
Sipeed Longan Nano development board from Seeedstudio. It uses the GD32VF103CBT6 microcontroller, which was developed in collaboration between GigaDevice and Nuclei System Technology. It is based on the Bumblebee core, which runs the open source RISC-V instruction set. The board can be programmed via USB DFU, UART ISP and JTAG. It supports communication interfaces: 3 x USART, 2 x I2C, 3 x SPI, 2 x I2S, 2 x CAN, 1 x USBFS (OTG) and USB type C. It also features an IPS LCD display with a resolution of 160 x 80 px and a diagonal of 0.96". The board is designed for students, engineers and enthusiasts working with next generation RISC-V processors.
PLN39.84
PLN39.84 tax excl.

Available
(Check quantity)
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Seeedstudio

Product description: Sipeed Longan Nano RISC-V development board GD32VF103CBT6 - Seeedstudio 114992425

Sipeed Longan Nano development board from Seeedstudio. It uses GD32VF103CBT6 microcontroller which was created in cooperation between GigaDevice and Nuclei System Technology. It is based on the Bumblebee core, which runs the open source RISC-V instruction set. The board can be programmed via USB DFU, UART ISP and JTAG. It supports communication interfaces: 3 x USART, 2 x I2C, 3 x SPI, 2 x I2S, 2 x CAN, 1 x USBFS (OTG) and USB type C. It also features an IPS LCD display with a resolution of 160 x 80 px and a diagonal of 0.96". The board is designed for students, engineers and enthusiasts working with next generation RISC-V processors.

 Sipeed Longan Nano zawiera także wyświetlacz LCD i przekątnej 0,96

The Sipeed Longan Nano also includes a 0.96" diagonal LCD display.

Special features of the development board

  • Equipped with GD32VF103CBT6 microcontroller with 32-bit RISC-V core
  • Included - 0.96" diagonal IPS LCD display with a resolution of 160 x 80 px
  • Low power consumption - consuming 1/3 the power of a traditional Cortex-M3
  • Pins in a two-row arrangement, which enable connection of Sipeed Loggan Nano to a contact board
  • Multiple programming options - via USB DFU, UART ISP and JTAG
  • In USB DFU programming mode you only need USB type C cable (not included)

Software

  • IDE: PlatformIO IDE, Arduino
  • Compile Toolchain & Debugger: GCC, OpenOCD
  • Operating System: RT-Thread LiteOS

Kit contents

  • Sipeed Longan Nano RISC-V development board
  • LCD display 160 x 80 px

A detailed user guide and technical documentation for the GD32VF103 is available on the manufacturer's website.

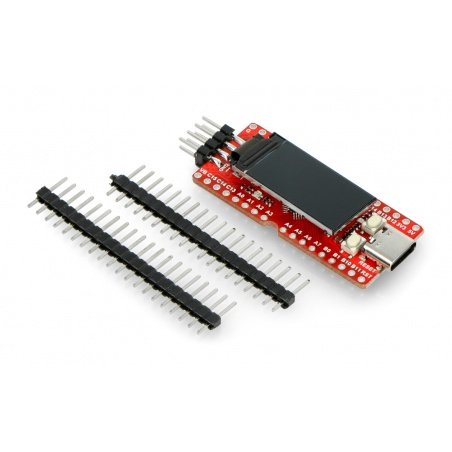

W zestawie znajdują się także złącza goldpin, które umożliwiają połączenie z płytką stykową oraz innymi urządzeniami peryferyjnymi.

Goldpin connectors are also included for connection to the contact board and other peripherals.

The development board comes with a USB Type C connector that can be used to connect to a computer.

Technical specification of Sipeed Longan Nano RISC-V

  • RISC-V processor:
    • chip: GD32VF103CBT6
    • Number of bits: 32
    • Flash memory: 128 kB
    • SRAM memory: 32 kB
    • power consumption: 1/3 moyc of a traditional Cortex-M3
  • Additional memory: TF card slot
  • Display: LCD IPS
    • diagonal: 0,96''
    • resolution: 160 x 80 px
    • colour range: RGB
  • Counters:
    • 4 x General Purpose 16-bit Timer
    • 2 x 16-bit Basic Timer
    • 1 x 16-bit Advanced Timer
    • Watchdog, RTC, Systick
  • Interfaces:
    • 3 x USART
    • 2 x I2C
    • 3 x SPI
    • 2 x I2S
    • 2 x CAN
    • 1 x USBFS (OTG)
    • USB type C
  • Debugging interface: 2 x 4-pin JTAG connector
  • Analog Converter:
    • 2 x ADC 10-channel
    • 2 x DAC
  • Passive 8M quartz oscillator
  • 32.768 kHz RTC oscillator
  • Leads: 2.54 mm goldpin connectors
  • Dimensions: 46.1 x 20 mm
UC - Microcontroller GD32
UC - Flash 128 kB
UC - A/C 10-bit
UC - USB USB C
UC - microSD yes
UC - I2C yes
UC - SPI interface yes
UC - LCD interface yes
UC - CAN interface yes
