Starter set introducing to the world, IoT (Internet of Things) for the Raspberry Pi. The set includes i.a.: sensors of light, sound, temperature, relay, display and many others. Connecting modules facilitates special cap GrovePi+ with wires. The kit includes an illustrated manual instruction.
The set is sent in a plastic box.
The set consists of:
|1||GrovePi+ - a cap tothe Raspberry Pito connect the sensor using the supplied cables.|
|3||Illustrated user manualin English, with exemplary programs.|

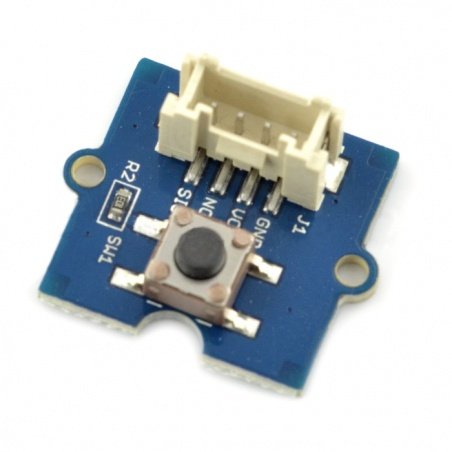

|3||Module with button - board with button tact switch and resistorlifted to mass. Communication is a digital signal 0/1.|

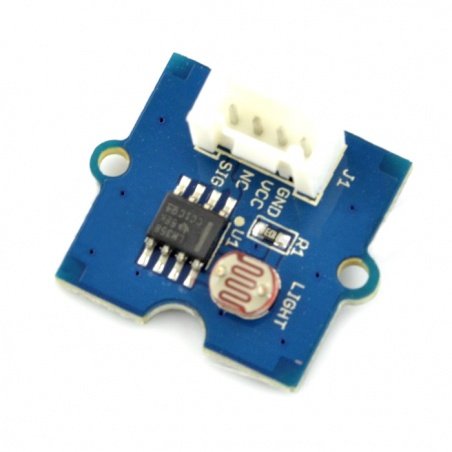

|4||Module with light sensor- a sensor measures the ambient light intensity. Based on the LM358 circuit.|

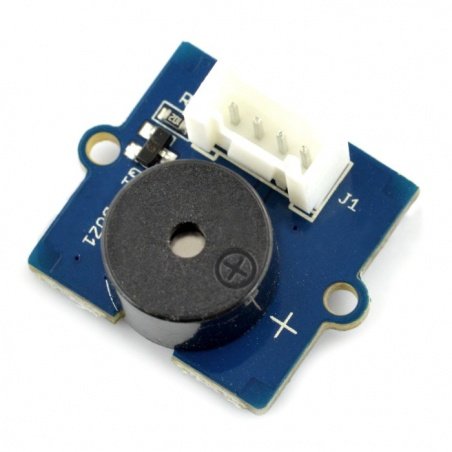

|5||Module with buzzer - simple sound signal generator.|

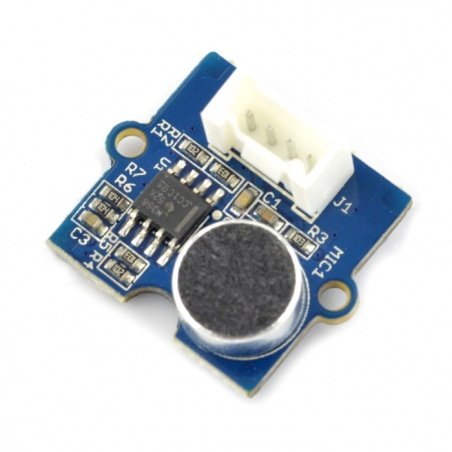

|6||Module with sound sensor- used to detect the sound level of the environment. Has an analog output. Microphone sensitivity at 1 kHz is 48 to 52 dB.|

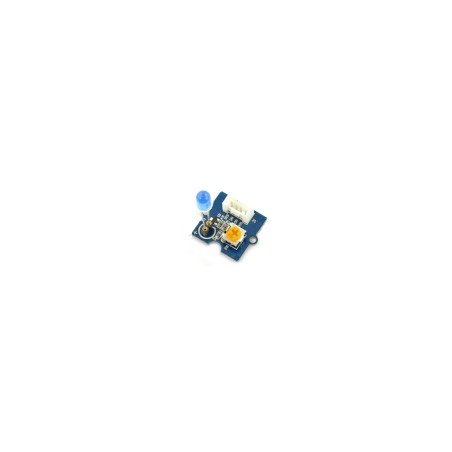

|7||3 modules with LED diode (included colors: blue, red and green) - has a built in resistor that limits the current on the diode, can be operated by PWM signal.|

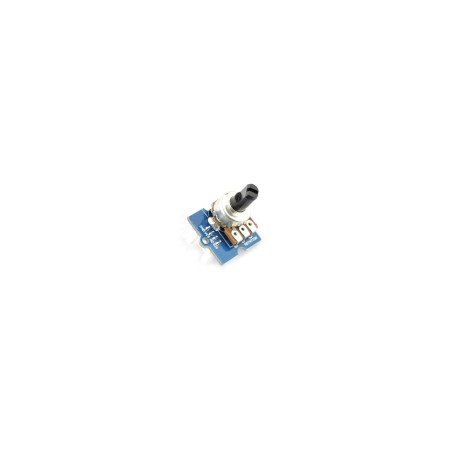

|9||Module with linear potentiometer -module with a range of 300° and a linear change of value. The resistance is 10kΩ.|

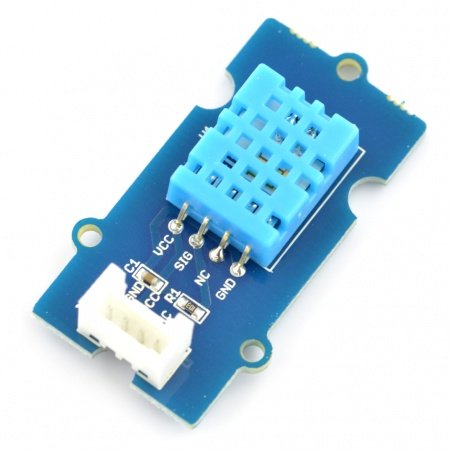

|10||Module with sensor of temperature and humidity -can measure temperature in the range from 0 to 50 °C and humidity in range from 20 to 90 % RH.|
|11||Module with ultrasonic distance sensor- detects objects at a distance of 3 cm to 400 cm with accuracy of 1 cm.|
|12||Module with relay- maximum supported voltage of 250V AC and a maximum current of 15 A. For safety, work with voltages up to 24 V.|
