ArduCam USB2 Camera Shield Rev.E - control overlay for MIPI enabled cameras - ArduCam B0175

Index: ACM-19887
BOTLAND B. DERKACZ SPÓŁKA JAWNA Opinie z ekomi-pl.com
ArduCam USB2 Camera Shield Rev.E is a universal overlay that can be used to control the camera via USB using Raspebbry Pi or PC. It's convenient to use thanks to Plug&Play function. The manufacturer also provides a ready-made SDK library and source code examples. The overlay from ArduCam supports various camera modules from 0.3 MPx to 21 MPx (or even higher).
PLN283.74
PLN283.74 tax excl.
On request. Waiting time 4-6 weeks.
Waiting for delivery
30-day returns
PayPal payment
Manufacturer: ArduCam
Compatibility: Raspberry Pi

Product description: ArduCam USB2 Camera Shield Rev.E - control overlay for MIPI enabled cameras - ArduCam B0175

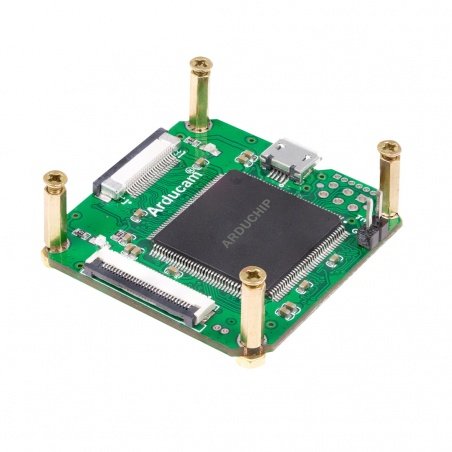

ArduCam USB2 Camera Shield Rev.E is universal overlay, with which you can control your camera via USB using Raspebbry Pi or PC. It's convenient to use thanks to Plug&Play function. The manufacturer also provides a ready-made SDK library and source code examples. The overlay from ArduCam supports various camera modules from 0.3 MPx to 21 MPx (or even higher). Not only does it support high resolution and high frame rate image sensors, but it can also be used with a stereoscopic camera. It features IRCUT control.

ArduCam USB2 Camera Shield Rev.E - nakładka sterująca do kamer z obsługą MIPI.

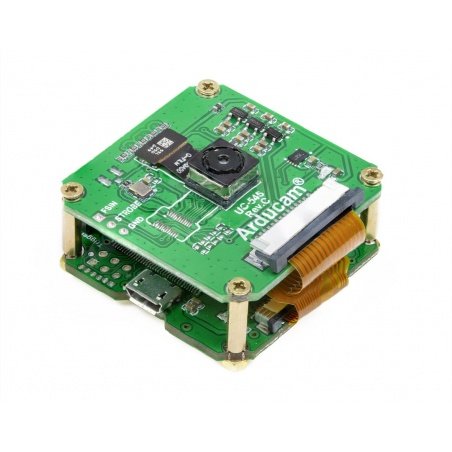

ArduCam USB2 Camera Shield Rev.E - control overlay for MIPI enabled cameras.

Product is compatible with Raspberry Pi!

Manufacturer provides a detailed user guide that makes it easy to get started with the overlay. It contains description of elements placed on the overlay, binary SDK library and sample source code of the program.

Przedmiotem sprzedaży jest nakładka do sterowania kamerą. Kamerę należy nabyć osobno.

The overlay for camera control is the subject of this sale. The camera should be purchased separately.

Features of ArduCam USB2 Camera Shield

  • Support for MIPI interface image sensors
  • Support for 12-bit parallel image sensors
  • Support for x86, ARM 32/64bit hardware platforms
  • Support for Windows and Linux operating system
  • Supports 8/10/12/14/16 bit color depth
  • Stereoscopic mode support for dual camera system
  • Built-in IRCUT control

Overlay technical specifications

  • Throughput: 480 mbps USB 2.0
  • Input/Output voltage standard: 3,3 V
  • Power consumption: 5 V / 300 mA
  • Connector: microUSB 2.0
  • Camera data bus: 16bit / 100 MHz
  • Operating temperature range: -10°C to 55°C
  • Dimensions: 40 x 40 mm
  • Weight: 20 g

Package contents

  • ArduCam USB2 Camera Shield (Rev.E)
  • MicroUSB 2.0 cable
  • FPC connecting tape - 15 pin 1 mm to 22 pin 0.5 mm - length 150 mm
  • FPC connecting tape - 22 pin 0.5 mm - length 80 mm

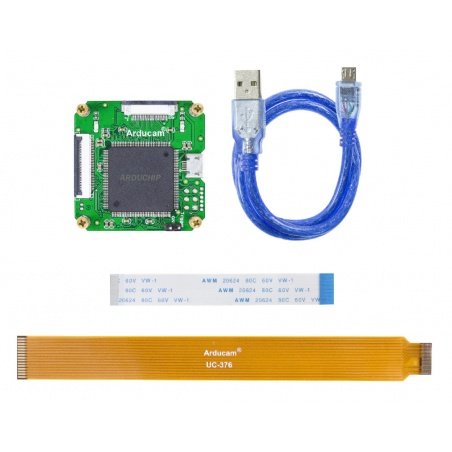

Zawartość zestawu z nakładką ArduCam USB2 Camera Shield (Rev.E).

Included with ArduCam USB2 Camera Shield (Rev.E).

In our offer you will also find an adapter to connect with the overlay.
