Touch screen DFRobot - capacitive 5'' 800x480px DSI for Raspberry Pi 4B/3B+/3B/2B

Index: DFR-12853 EAN: 5904422320133
BOTLAND B. DERKACZ SPÓŁKA JAWNA Opinie z ekomi-pl.com

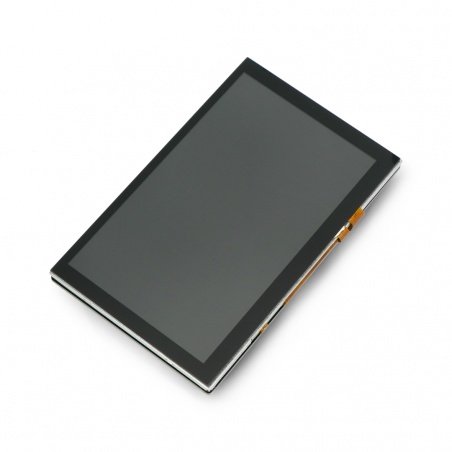

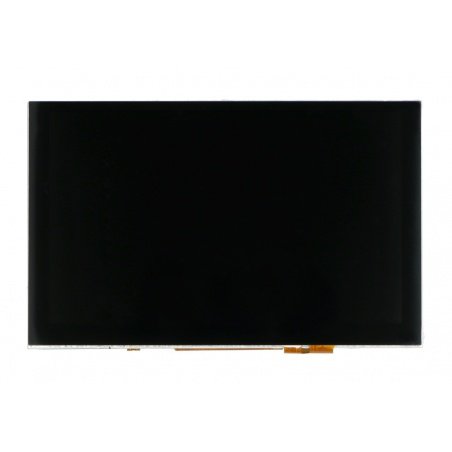

Touch screen, capacitive 5" for minicomputer Raspberry Pi. Display resolution 800 x 480 px. Touch screen supports up to 5 touches at once. Powered through connector for DSI Raspberry, does not need external power source.

€56.03
€45.55 tax excl.

In stock, shipping 24 hours!
(Check quantity)
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: DFRobot
Compatibility: Raspberry Pi

Description

Touch screen, capacitive 5" for minicomputerRaspberry Pi. Display resolution 800 x 480 px. Touch screen supports up to 5 touches at once. Powered through connector for DSI Raspberry, does not need external power source.

The screen requires no external power source, it feeds through the DSI connector on a Raspberry Pi. The display has a backlight adjustment using the potentiometer located on the rear panel.

Attention!

Supplier recomended using a copper distances between Raspberry and screen while using a Raspberry Pi 3 A+.

Specification

  • Working voltage: 3.3 V
  • Maximum current: 320 mA
  • The strength of the current when the screen is off: 100 mA
  • Interface: the DSI Raspberry Pi
  • Resolution: 800 x 480 px
  • The number of touch points: 5
  • Viewing angles: 60° / 70° / 70° / 70°
  • RGB888-16 Mega True Color
  • Refresh rate: 60 Hz
  • Luminous efficiency: 280 CD/m2
  • Operating temperature: -20 °C to 70 °C
  • Dimensions: 121 x 76 mm
  • Mounting holes: M2,5
  • Outer distance between the mounting holes: 113 x 68 mm
  • Inner distance between the mounting holes: 58 x 49 mm

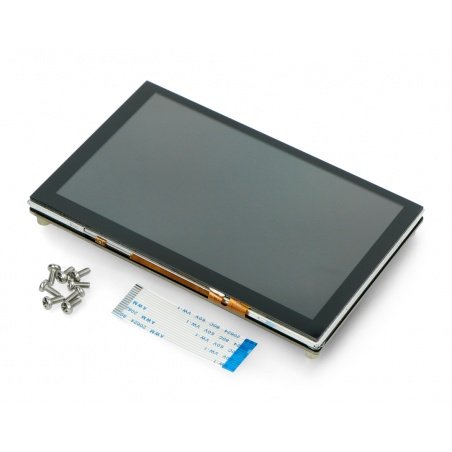

Set includes

  • 1x 5" screen with capacitive touch
  • Cable FFS 45 mm, raster 1 mm 15-pin
  • 8x spacer M2,5
  • 8-screw M2,5

Screen - type LCD TFT
Screen - diagonal 5''
Screen - interface LVDS
Screen - touch yes
Screen - resolution 800x480px
