IPS LCD capacitive touch screen 2.8 '' 480x640px DPI GPIO for Raspberry Pi - Waveshare 18628

Index: WSR-18532 EAN: 5903351244558
BOTLAND B. DERKACZ SPÓŁKA JAWNA Opinie z ekomi-pl.com
IPS capacitive touch screen from Waveshare with 2.8'' diagonal and resolution equal to 480 x 640 px. It works with Raspberry Pi, supports Raspberry Pi OS and Kali systems. It features a fully laminated tempered glass cover with 6H hardness and a wide 160° viewing angle. The display panel detects up to 5 simultaneous touch points. It is characterized by low power consumption.
€30.21
€24.56 tax excl.

Available
(Check quantity)
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Waveshare
Compatibility: Raspberry Pi

Product description: 2.8'' 480 x 640 px DPI GPIO LCD capacitive touch screen for Raspberry Pi - Waveshare 18628

IPS capacitive touch screen from Waveshare with 2.8'' diagonal and resolution equal to 480 x 640 px. It works with Raspberry Pi, supports Raspberry Pi OS and Kali systems. It features a fully laminated tempered glass cover with 6H hardness and a wide 160° viewing angle. The display panel detects up to 5 simultaneous touch points. It is characterized by low power consumption.

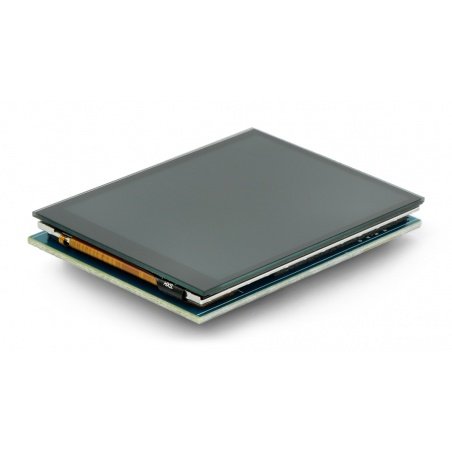

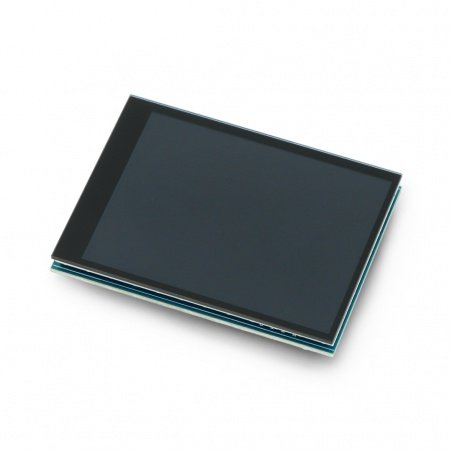

Wyświetlacz o przekątnej 2,8''.The display has a diagonal of 2.8''.

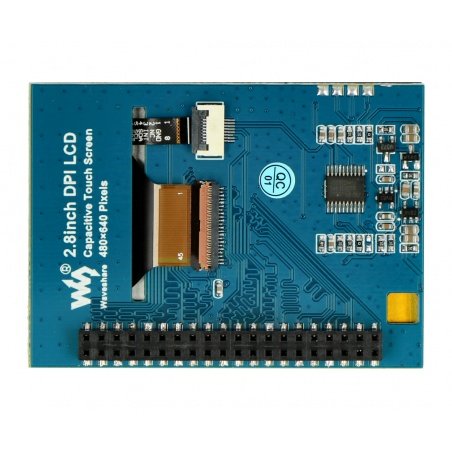

Wyświetlacz posiada wyprowadzenia GPIO do podłączenia z Raspberry Pi.Display has GPIO outputs for connection with Raspberry Pi.

Technical specification of the display

  • Type: capacitive touch screen
  • Diagonal size: 2,8''
  • Resolution: 480 x 640 px
  • Interface: I2C, GPIO, DPI
  • Number of GPIO pins: 40
  • Compatible with Raspberry Pi
  • Glass hardness: 6H
  • Dimensions: 66 x 48 mm
  • Weight: 340 g

Connection to Raspberry Pi

Connection of the display with Raspberry Pi is done by GPIO connectors. The display should be plugged in according to the example.

Software

Manufacturer has prepared ready configured system for Raspberry Pi. The system should be unzipped using a suitable program such as WinZip and uploaded to the card using Win32 Disk Imager.

The manufacturer has prepared detailed instructions for running the display with Raspberry Pi and configuring the basic settings.

Sposób podłączenia ekranu.How to connect the screen.

The subject of this sale is a screen from Waveshare. Raspberry Pi module needs to be purchased separately.

Screen - type LCD IPS
Screen - diagonal 2.8''
Screen - interface GPIO+DPI
Screen - interface I2C
Screen - touch yes
Sensor - type display
