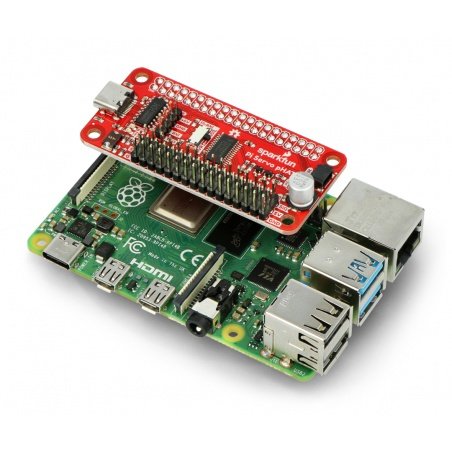

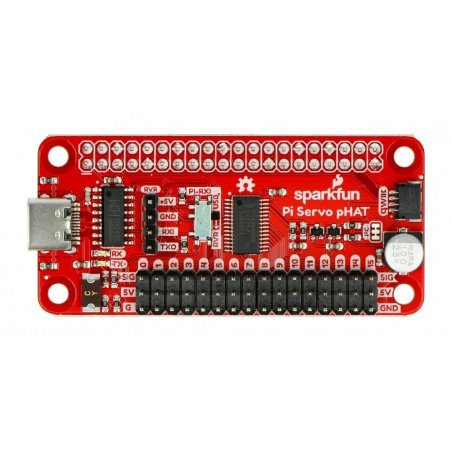

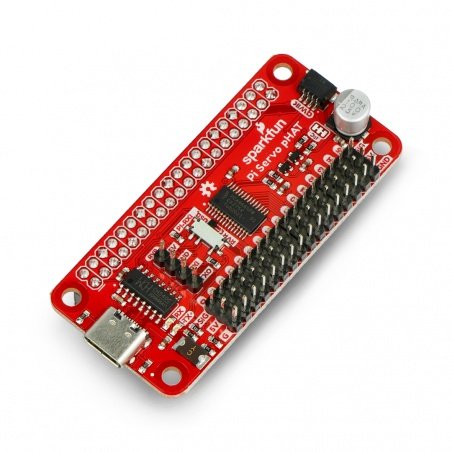

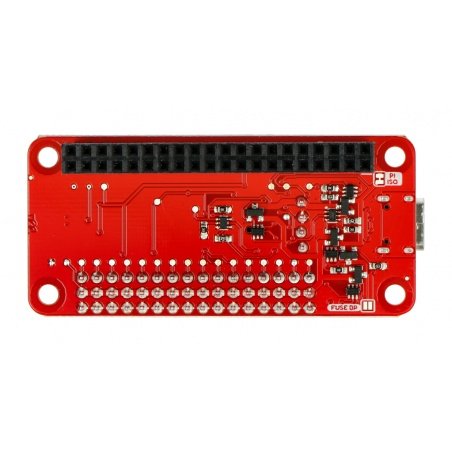

Servo pHAT - 16-channel PWM I2C driver for Raspberry Pi - SparkFun DEV-15316

Index: SPF-18725 EAN: 5903351248402
BOTLAND B. DERKACZ SPÓŁKA JAWNA Opinie z ekomi-pl.com
The Servo pHAT overlay from SparkFun allows you to control up to 16 servos via an I2C interface. The chip generates PWM signals up to 1.6 kHz with 12-bit precision. Using I2C communication does not occupy GPIO pins and allows to use them for other project purposes. The module has a Qwiic connector, which greatly simplifies connection, and a USB Type C connector, through which power can be supplied to both the overlay and the Raspberry Pi. The overlay increases the possibilities of using the Raspberry Pi to control complex, servo-based designs.
€14.18
€11.52 tax excl.
Unavailable
Waiting for delivery
30-day returns
PayPal payment
Manufacturer: SparkFun
Compatibility: Raspberry Pi

Product description: Servo pHAT - 16 channel I2C PWM controller for Raspberry Pi - SparkFun DEV-15316

TheServo pHAToverlay from SparkFun allows you tocontrolup to16 servosvia theI2Cinterface. The chip generates aPWMsignal of up to1.6 kHzwith12-bit precision. Using I2C communication does not occupy GPIO pins and allows to use them for other project purposes. The module has aQwiicconnector, which greatly simplifies connection, and a USB Type C connector, through whichpowercan be supplied to both theoverlayand the Raspberry Pi. The overlay increases the possibilities of using the Raspberry Pi to control complex,servo-basedstructures.

Product compatible with Raspberry Pi

There is a detaileduser guideand freeGitHub libraries and exampleson themanufacturer's website.

Nakładka do Raspberry Pi w postaci 16-kanałowego sterownika PWM.An overlay for Raspberry Pi in the form of a 16-channel PWM controller.

Technical specifications

  • Communication interface: I2C
  • Number of PWM channels: 16
  • Resolution: 12 bits
  • Maximum frequency: 1.6 kHz
  • Operating voltage: from 2.3 V to 5.5 V
  • Duty cycle: from 0% to 100% (adjustable)
  • I2C address: 0x40
  • Qwiic connector
  • 40-pin GPIO connector for connection to Raspberry Pi
