3D print module for Creality CP-01

Index: CRL-18620 EAN: 5903351245319
BOTLAND B. DERKACZ SPÓŁKA JAWNA Opinie z ekomi-pl.com
Printhead designed for Creality CP-01 multifunctional device. The module prints 3D models using FFF/FDM technology. Their maximum size is adapted to the CP-01 workspace, which has dimensions of 200 x 200 x 200 mm. The maximum temperature of the nozzle installed in the module is 260°C. The head allows creating 3D prints with layer heights from 0.1 to 0.4 mm with an accuracy of 0.1 mm. It is compatible with 1.75 mm diameter filament.
€79.88
€64.94 tax excl.
Unavailable
Waiting for delivery
30-day returns
PayPal payment
Manufacturer: Creality

Product description: Printhead for Creality CP-01

Printhead designed for Creality CP-01 multifunctional device. The module prints 3D models using FFF/FDM technology. Their maximum size is adapted to the CP-01 workspace, which has dimensions of 200 x 200 x 200 mm. The maximum temperature of the nozzle installed in the module is 260°C. The head allows creating 3D prints with layer heights from 0.1 to 0.4 mm with an accuracy of 0.1 mm. It is compatible with 1.75 mm diameter filament.

The Creality CP-01 printer kit comes with all three modules: print, laser engraver and CNC.

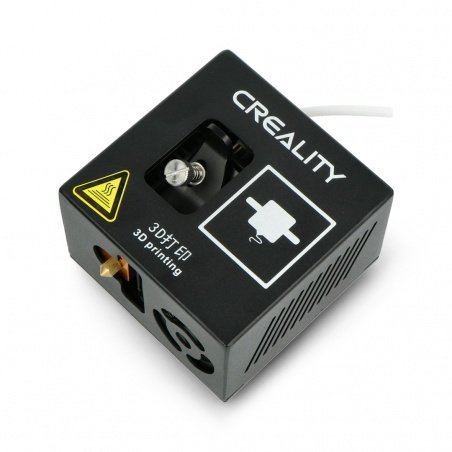

Głowica drukująca do Creality CP-01

Printhead for Creality CP-01.

Schemat montażu głowicy drukującej


Printhead assembly diagram.

Easy to assemble

The printhead is easy to assemble. All elements necessary for melting the material for printing were enclosed in a metal housing, which is mounted with screws on a sliding element placed on the transverse element of the printer frame. Such a solution, in addition to a trouble-free exchange of CP-01 modules, increases the safety of work because the access to heating elements of the hotend is limited.

Specification of 3D print head for Creality CP-01

Technical specification
Printing speed: 10 to 80 mm/s
Nozzle diameter 0.4 (standard); 0.6 mm and 0.8 mm (optional)
Nozzle temperature: up to 260°C
Layer height: 0.1 to 0.4 mm
Printing accuracy: 0.1 mm
Filament diameter: 1.75 mm
Supported Filaments: PLA, PETG, etc.
3D - type of printout FFF/FDM
3D - accuracy of printing 0.1 mm
3D - material amount 1
3D - filament diameter 1.75 mm
3D - printing thickness 0.1 - 0.4 mm
3D - nozzle temp 260 °C
