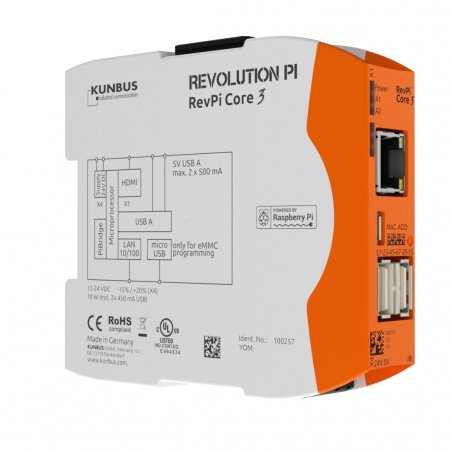

Revolution Pi RevPi Core 3 4GB eMMC - PLC module

Index: INX-18137 EAN: 4260498390236
BOTLAND B. DERKACZ SPÓŁKA JAWNA Opinie z ekomi-pl.com
Revolution Pi RevPi Core 3 minicomputer has been adapted for industrial applications. It is based on Raspberry Pi Compute Module 3 board with quad-core Broadcom BCM2837 ARM Cortex-A53 processor clocked at 1.2 GHz. The module is equipped with 1 GB of RAM and 4 GB of eMMC memory. RevPi runs on specially modified version of Raspbian system with RTC support preinstalled. It is powered from 12 V to 24 V DC and enclosed in a DIN rail mounted casing. It supports Modbus protocol and can be programmed in Node-RED environment.
PLN1,210.57
PLN1,210.57 tax excl.
Na zamówienie. Czas oczekiwania: 4-6 tygodni
Waiting for delivery
30-day returns
PayPal payment
Manufacturer: Kunbus

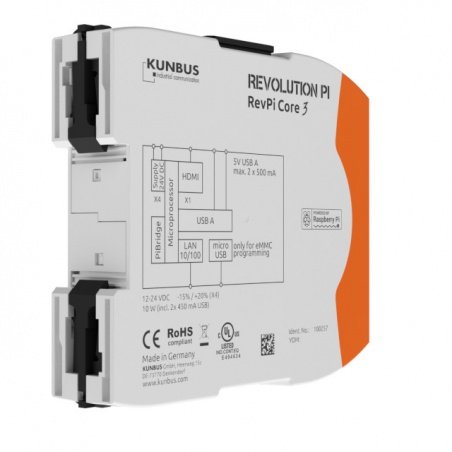

Product description: Revolution Pi RevPi Core 3 4GB eMMC

TheRevolution Pi RevPi Core 3minicomputer has been adapted for industrial applications. Based on the boardRaspberry Pi Compute Module 3with quad-core processor BroadcomBCM2837 ARM Cortex-A53 at 1.2 GHz. The module comes with 1GB of RAM and4GB of eMMC memory, as well as an Ethernet port, two USB 2.0 connectors, a microUSB port and microHDMI. RevPi runs on specially modified version of Raspbian system with RTC support preinstalled. It is poweredfrom 12 V to 24 V DCand enclosed in a DIN rail mounted enclosure. Supports Modbus protocol, can be programmed in Node-RED environment.

Zasilanie RevPi Core

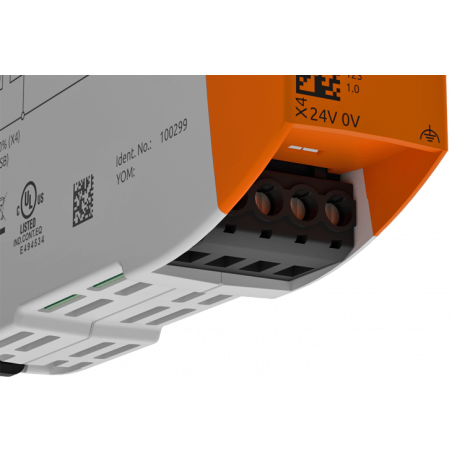

Screw connectors for power supply in RevPi Core 3.

Power supply for RevPi Core 3

One of the most important elements is the power supply for RevPi Core module. In order to generate the least heat from the power supply, ahigh quality DC-DC converter(with an efficiency of over 80%) is used, whose input voltage is24 V. However, Core can also work with lower voltage than 10.2V, but then the performance of USB ports will be lower, for correct operation of ports requires voltage higher than 11V. With 24V power supply, the loss of power supply up to25ms will not affect the RevPi Core performance (no load on the USB ports). The device is protected against high disturbances and electrical and electromagnetic discharges. Power to the RevPi Core is supplied throughscrew connectorslocated on the bottom of the device. Moreover, Revolution Pi is equipped withRTC24 h, so the date and time will always be up-to-date.

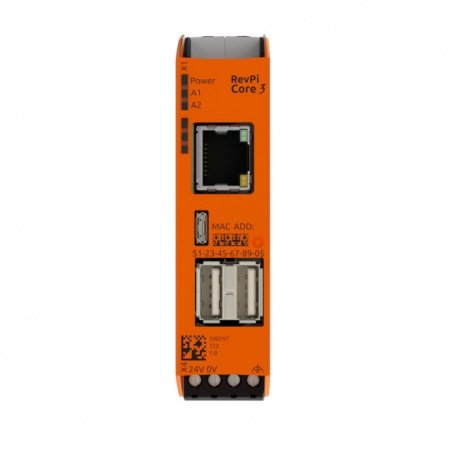

RevPi Core 3 interfaces

The Revolution Pi RevPi Core 3 module is equipped with a number of important interfaces.

  • RJ45 Ethernet port to connect to the LAN.
  • Two USB Type A connectors, to which you can connect USB 2.0 client devices. Both connectors have 5V / 500 mA output, which allows you to connect different types of USB drives, pendrives, without using an active USB hub.
  • The microUSB connector can work as USB host system, e.g. to connect the RevPi to your computer for the first flashing.
  • MicroHDMI connector for screen connection.

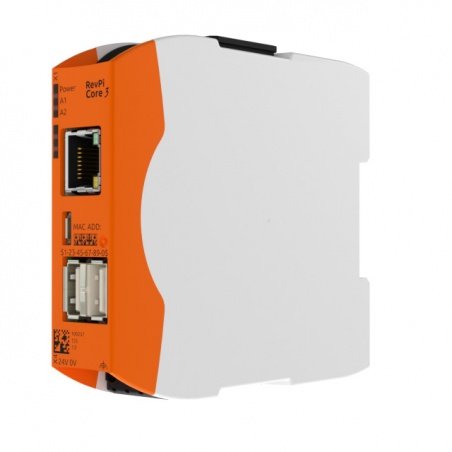

RevPi Core 3Revolution Pi RevPi Core 3.
Złącze PiBridge

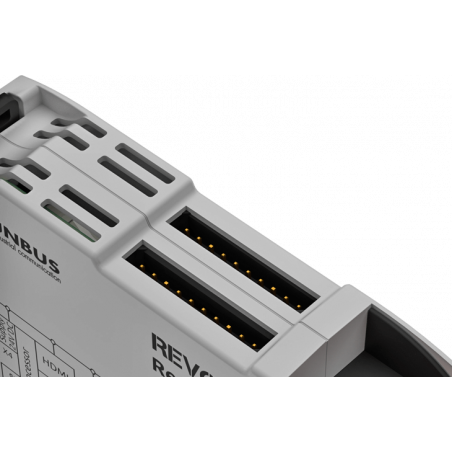

PiBridge connector on the Revolution Pi.

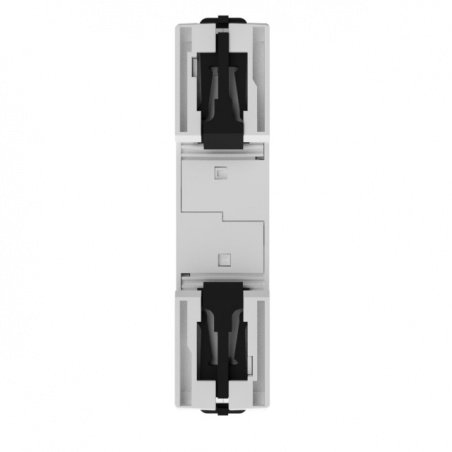

Modular design of the RevPi Core 3

Minicomputer is equipped withPiBridgeconnector on the top of the case, which is used to connect the expansion modules Revolution Pi, these are:

  • 4 PiBridge pins used to automatically detect the connected module when the RevPi starts up, the RevPi Core knows exactly what device is connected and what physical position it is in.
  • 4 PiBridge pins for fast exchange of small data packets via RS485. This channel is also used to configure the module during the boot-up phase. Once configured, it is used for cyclic data exchange between the RevPi Core and all connected IO modules.
  • 8 PiBridge pins for fast exchange of large data packets over the Ethernet port. Channel used only by gateway modules that can cyclically accumulate up to 512 bytes of data from almost all buses.

RevPi Core 3 meets industrial requirements

The main goal of Revolution Pi was to apply Raspberry Pi in industry to become a real IPC that meets EN 61131-2 standard.

  • Power supply: 12 V to 24 V DC, max. 10 W
  • Operating temperature: from -40°C to 55°C
  • ESD protection: 4 kV / 8 kV according to EN 61131-2 and IEC 61000-6-2
  • Shock tests: according to EN 61131-2 and IEC 61000-6-2
  • EMI tests: according to EN 61131-2 and IEC 61000-6-2
  • UL Certified (UL file number E494534)

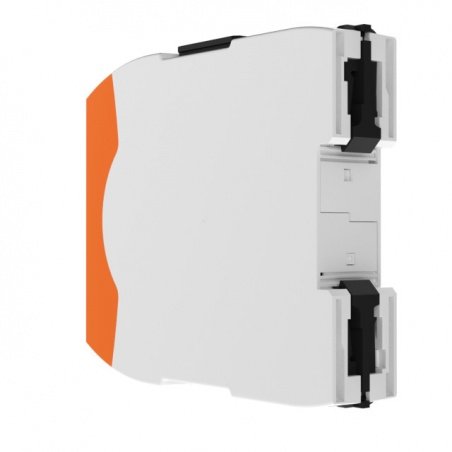

Wymiary RevPi core 3

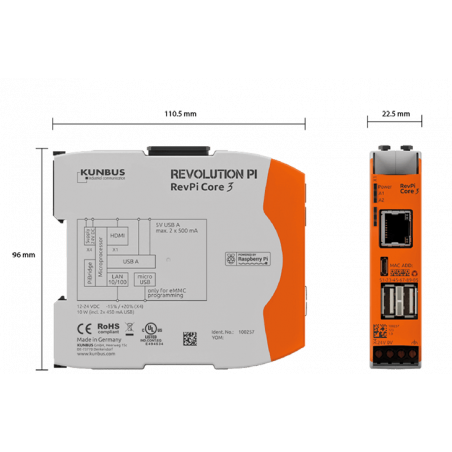

Dimensions of RevPi Core 3.

Raspberry Pi vs Revolution Pi

Standard versions of the Raspberry Pi are small modules equipped with interfaces found in standard PCs. The Raspberry Pi Foundation has created an inexpensive boardfor educational purposes. The Revolution Pi modules were based on the Raspberry Pi Compute Module board, for which Kunbus created an evaluation board, creating a controller with the same specifications as classicPLCs. Revolution Pi was created forindustrialapplications with the possibility of expanding its capabilities through modules with IO interfaces and communication modules.

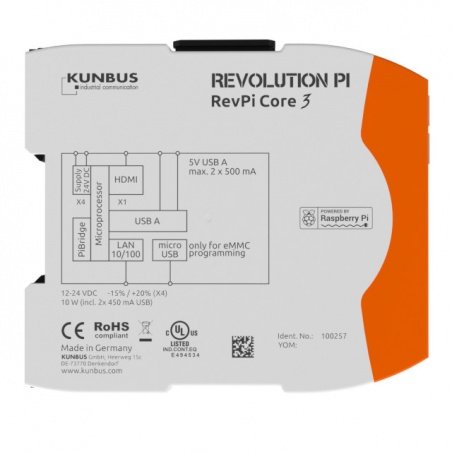

RevPi Core 3 specification
Processor Broadcom BMC2837 Quad-Core ARM Cortex-A53
Clocking 1.2 GHz
RAM 1 GB
EMMC memory 4 GB
Supply voltage 12 V to 24 V
Working temperature from -40°C to 55°C
Storage temperature from -40°C to 85°C
Operating humidity 93%
Degree of protection IP20
ESD protection 4 kV / 8 kV
EMI test according to EN 61131-2 and IEC 61000-6-2
Surge test according to EN 61131-2 and IEC 61000-6-2
Compliance CE, RoHS
UL certified yes, E494534
Dimensions 111 x 22.5 x 96 mm
Interfaces
1x Ethernet RJ45
2x USB 2.0
1x microHDMI
1x microUSB
2x PiBridge (for RevPi Con modules)
UC - Microcontroller BCM2837
UC - Flash 4 GB eMMC
UC - RAM 1 GB
UC - core 4. Quad Core
UC - External memory eMMC 4 GB
UC - freq 1.2 GHz
UC - Ethernet yes
UC - USB 2x USB
UC - HDMI yes
UC - Connector pins
UC - Linux yes
