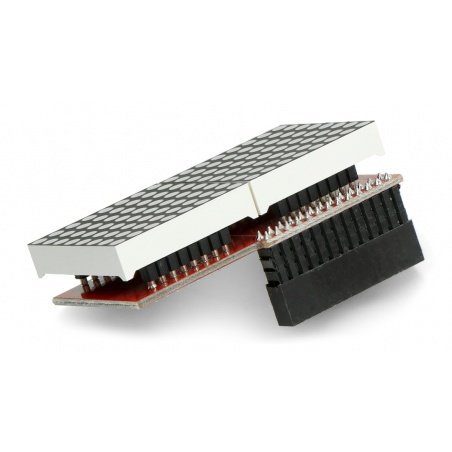

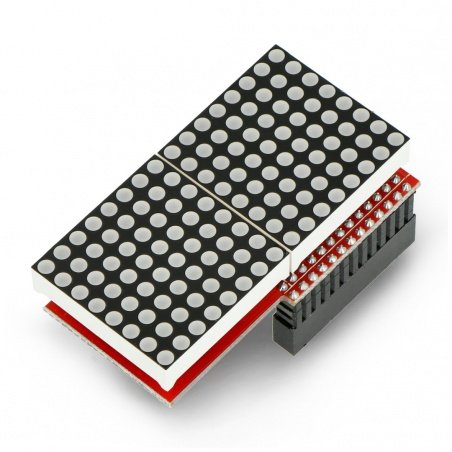

LED Matrix 16x8 MAX7219 for Raspberry Pi

Index: OST-18523 EAN: 5903351246385
BOTLAND B. DERKACZ SPÓŁKA JAWNA Opinie z ekomi-pl.com

The cover plate is equipped with two 64 LED matrices' slots. Two LED matrix modules with a total of 128 LEDs and red colour are included. The overlay module is based on the MAX7219 driver and is equipped with connectors matching the GPIO of Raspberry Pi.

PLN32.44
PLN32.44 tax excl.

Available
(Check quantity)
Shipping in 24 hours
30-day returns
PayPal payment
Compatibility: Raspberry Pi

Product description: Matrix 128 LED 16x8 MAX7219 for Raspberry Pi

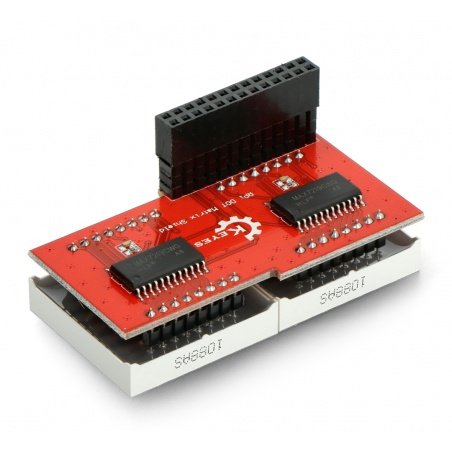

The cover plate is equipped with two 64 LED matrices' slots. Two LED matrix modules with a total of 128 LEDs and red colour are included. The overlay module is based on the MAX7219 controller and communicates with the SPI interface. It is equipped with connectors matching the Raspberry Pi GPIO ports.

Nakładka z Raspberry PiLED matrix cover for Raspberry Pi. The item is a LED matrix cover, mini computer can be purchased separately.
Nakładka z matrycą LEDLED matrix cover for Raspberry Pi.

Connecting the LED Master Cover

In the table there are descriptions of the GPIO Raspberry Pi pins used by the overlay. The module communicates through the SPI minicomputer interface and uses 26 GPIO Raspberry Pi pins.

Pin Symbol Description
1, 17 3.3V Supply voltage 3.3V.
2, 4 5V Supply voltage 5.0 V.
3, 5, 7, 8,
10, 11, 12,
13, 15, 16,
18, 21, 22,
26
NC Not used.
6, 9, 14,
20, 25
GND System weight.
19 MOSI SPI bus data line.
23 SCK SPI bus clock line.
24 CE0 Chip select, SPI bus device selection, activated by low state.

LED matrix cover plate specification

Parameter Value
Power supply From Raspberry Pi pins
Number of diodes 128
LED matrix 16 x 8 pixels
Color of the diodes Red
Controller MAX7219(documentation)
Interface SPI
It cooperates with Raspberry Pi 4B / 3B+ / 3B / 2B / Zero
Dimensions 64.3 x 35 x 26.5 mm
Screen - type Matryca LED
Screen - diagonal 2.9''
Screen - interface GPIO
Screen - touch no
Screen - resolution 16x8 px
