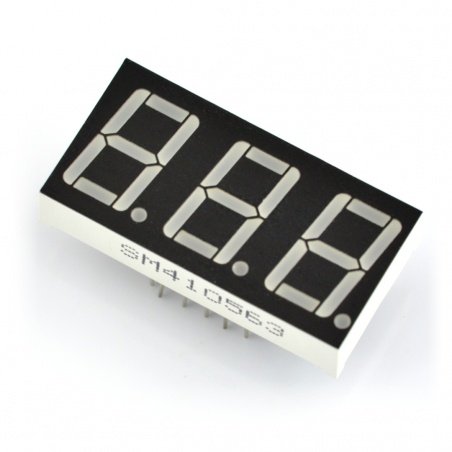

Eight-segment display x3 - 14mm red - common anode

Index: LCD-06447 EAN: 5904422357665

Triple 8-segment display allows you to display three digits along with points and some letters.

Eight-segment display x3 - 14mm red - common anode
€0.90
€0.73 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: OEM

Specification

  • Character height: 14.22 mm
  • Segment color: red
  • Number of segments: 8 (characters + points)
  • Module dimensions: 37,6 x 19 mm
  • Common anode
  • Marking: FJ5361BH



A detailed description together with the output markings are located inthe documentation.



Screen - type sectional LED
Screen - diagonal 0,66"
Screen - interface GPIO
Screen - touch no
Screen - resolution 3 cyfry
Package width 5.5 cm
Package height 2.1 cm
Package depth 3.5 cm
Package weight 0.007 kg

Tomek

04/04/22

Question: Why does a triple display have fewer legs than a double one? How to control it? Datasheet seems laconic

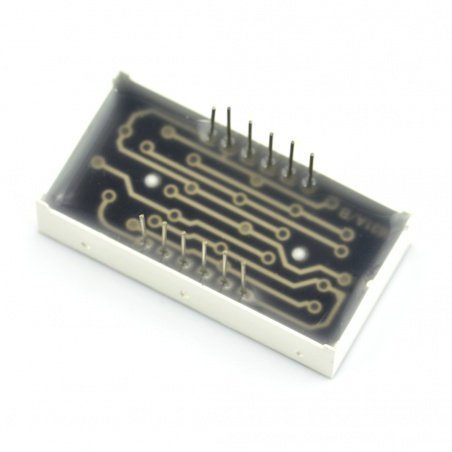

Answer: A description of the pins can be found in the documentation. Each pin corresponds to a given segment A, B, C, D, E, F, G, RDP, while pins 12, 9 and 8 correspond to a given digit (pin 6 is unconnected). Pins are counted from the lower left side, as shown in the documentation.

Product reviews

Eight-segment display x3 - 14mm red - common anode

5/5

Average grade

4

Customers opinion
The following opinions are collected
and verified by
an external partner Trustmate
and come from the post-purchase process.
Wojciech 15.04.2024 Confirmed purchase Translated review
Everything's fine
Kazimierz Z. 13.07.2022 Confirmed purchase Translated review
bdb
Paweł N. 05.02.2022 Confirmed purchase Translated review
A description of the outputs could be given, it would be easier. Product ok
