- Reduced price
Product description: 3D Snapmaker v2.0 model 1250 3D printer
Snapmaker 2.0 is a 3-in-1 device, it is a combination of a 3D printer, CNC milling machine and a laser plotter. By modifying the device we gain a tool that can prove extremely effective in the electronics workshop, a fan of new technologies or a DIY enthusiast.

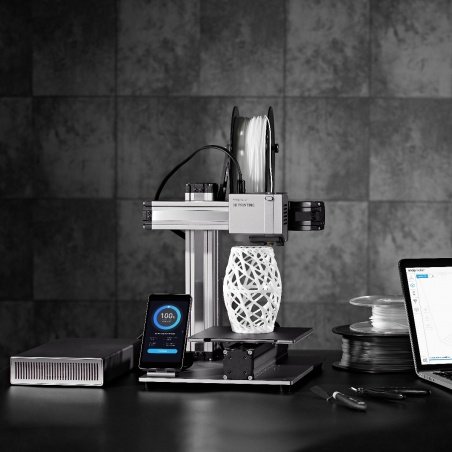

3D printing module in Snapmaker 2.0.
3D printing, the flagship feature of Snapmaker 2.0
Thanks to its stable construction and solutions used in the device, Snapmaker 2.0 allows for fast and precise printing. The device is good for both beginners and advanced users, for example because it has a very intuitive software to operate the device in printer mode, which allows for numerous modifications. Thanks to the heated workbench and direct-type extruder we can use many printing materials. Finally, the problems with the flexible filaments are over!
High quality not only on paper
Thanks to the combination of steel, aluminium and perfectly matched parts, the repeatability of the machine is as high as 0.005 mm, a result which allows even short series production. Snapmaker 2.0 will prove to you that there is no impossible, and it is a pleasure to work with it.

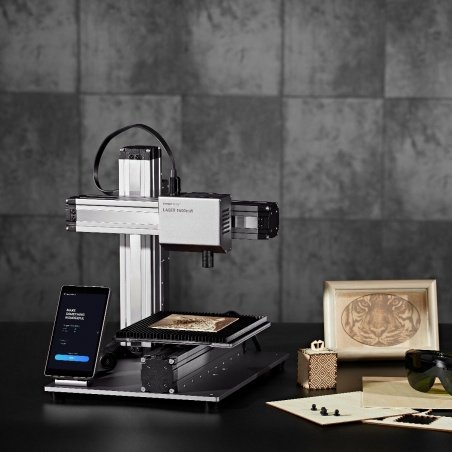

Laser module in operation.
Laser engraving and cutting
The laser module allows extremely precise cutting and engraving. You can create interesting elements made of wood, leather, material and acrylic. With a 1.6 W laser, you can cut the materials of your choice, bringing more professionalism to your projects. The laser module has a camera that allows you to perfectly match the work area to the current workpiece.
Are you impressed by the capabilities of Snapmaker 2.0 ? If so, then you need to know that the device's operating software allows you to control all the functions of Snapmaker 2.0! The configuration panel is designed so that you have access to all functions. No longer do you have to look for separate software for a 3D printer, laser router and CNC milling machine, everything is in one place.
Presentation of the software for device control.

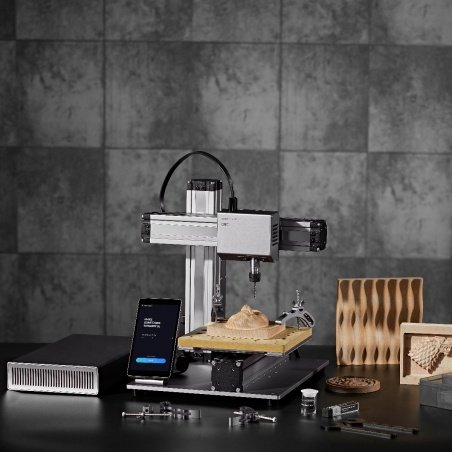

CNC module in operation.
CNC machining is just another advantage of Snapmaker 2.0
The CNC module allows precise machining of materials such as wood, acrylic, carbon fibre sheets or even PCB laminate. Start creating your own PCBs and create your own sculptures, see what you can use this feature for! For safe and trouble-free CNC work, a wooden table and a set of hooks are included to prevent the material from moving.
Snapmaker 2.0 modular design
Imagine that one construction can replace several tools in a workshop. This is the Snapmaker 2.0! Thanks to its modular design, it allows you to fully adapt its functionality to your needs. Not a series of machines, Snapmaker 2.0 is a powerful tool for people as creative as you.

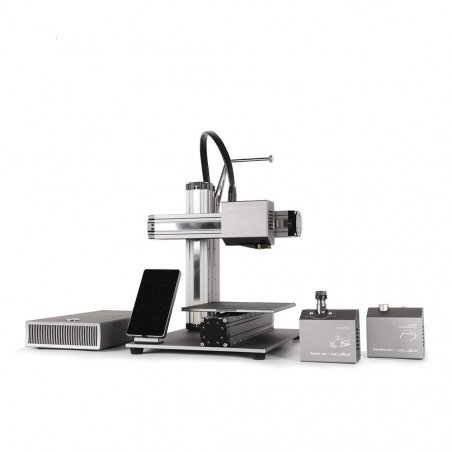

The device is built with modules that facilitate its expansion.
The process of assembling the device takes very short time.
The device is extremely easy to assemble!
Snapmaker 2.0 makes the folding process as easy as possible, the motors are built into the profiles and the plates to connect the components are fixed permanently to the linear systems, making the folding and use of the device safe. Unlike amateur counterparts that have to be folded for hours, folding Snapmaker 2.0 will only take a moment, additionally we are supported by a manual in both paper and electronic versions.
Wi-Fi connectivity and touch screen
For maximum convenience in configuring Snapmaker 2. 0 Wi-Fi communication has been introduced. As well as transferring files to the device, you can also easily update them, on devices on the local network you can run the console that controls the device. The touchscreen is equipped with Android and a fast processor, so you can control your device more efficiently than ever before!
Numerous device features for easy use
The device is equipped with numerous procedures, which will certainly facilitate the use of the Snapmaker. The automatic work table levelling eliminates the problem of platform self-calibration every few prints. Restoring work after the loss of voltage gives an extraordinary protection, we do not have to be afraid that during an accidental disconnection of the device from the power supply we will lose our work. The print cooling system, improved in relation to the previous version of the device, allows us to create elements that will be partially in the air without the use of supports. A flexible pad increasing the adhesion makes the printout stick to the table without additional preparations. We also do not have to use tools to unstick the printout from the platform, just bend it and the printout will fall off by itself. Camera built into the laser module It is an invaluable helper in determining the area where the laser works, no more setting up the center on an unusual shape. The linear modules have been fully enclosed, thus avoiding the possibility of blurring of moving elements by getting chips or dust.
Afraid that you will not be able to handle the device? You don't have to worry about it! The manufacturer provides step-by-step instructions on how to assemble the device and how to configure it for specific functions, which is a great advantage.
Snapmaker 2.0 device specifications
|Colour display:||5" touch screen|
|Frame material:||aluminium alloy, steel|
|Communication:||USB disk, USB cable, Wi-Fi|
|Power supply voltage:||100 V to 240 V AC|
|Supported systems:||Mac OS, Windows|
|Dimensions of the assembled device||700 (L) x 660 (W) x 580 (H) mm|

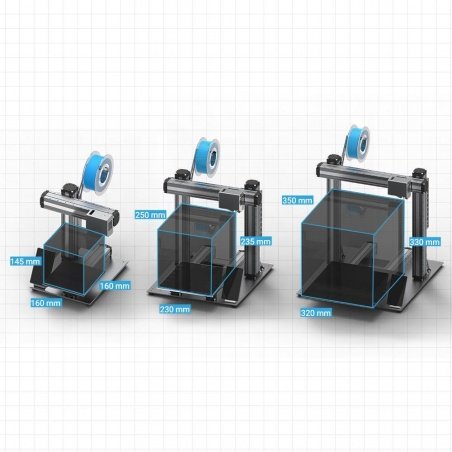

|Workspace for 3D printing:||160 (L) x 160 (W) x 145 (H) mm|
|Laser workspace:||160 (L) x 160 (W) mm|
|CNC workspace:||160 (L) x 160 (W) x 90 (H) mm|
|Nozzle diameter:||0.4 mm|
|Maximum print nozzle temperature:||275°C|
|Maximum working platform temperature:||110°C|
|Layer resolution:||50-300 microns|
|Supported materials:||PLA, ABS, PETG, TPU, PP, WoodFill, LayBrick|
|Diameter of the filament:||
|Supported file formats in Snapmaker Luban:||.stl, .obj|
|Laser power:||1600 mW|
|Supported materials:||wood, leather, plastic, fabric, paper, acrylic|
|Supported file formats in Snapmaker Luban:||.svg, .png, .jpg, .jpeg, .bmp, .dxf|
|Handle diameter:||0.5 mm to 6.35 mm|
|Spindle rotation:||6000 - 12000 RPM|
|Supported materials:||wood, acrylic, PCB, carbon fibre sheets|
|Supported file formats in Snapmaker Luban:||
.svg, .png, .jpg, .jpeg, .bmp, .dxf, .step, .dwg
The kit includes:
Laser module (1600 mW with built-in camera)
3D printing module
Controller (based on Cortex-M4 processor)
5" Intelligent touch screen (operated by Android, based on Quad Core A7 1.1GHz processor)
Power supply with power cords
Magnetic table for 3D printing with adhesive pad for increased adhesion
Aluminium table for working with the laser module
Wooden table for working with CNC module (module equipped with ER-11 handle)
Base of the device with non-slip feet
Work platform base
Mountings for linear modules
Cable set for connection of modules, work table, line modules and screen
Converters for cables
Clamping to the material while working with the CNC module
Tool set (Screwdriver with replaceable bits, wrenches, pliers, tweezers, spatula)
Leveling plates for the working platform
Instructions for assembly and use
Two pairs of safety glasses (for CNC and laser operation)
Filament spool (1 kg PLA)
Complete set of test materials
