Servo PowerHD WH-20KG waterproof

Index: PHD-18539 EAN: 5904422368043

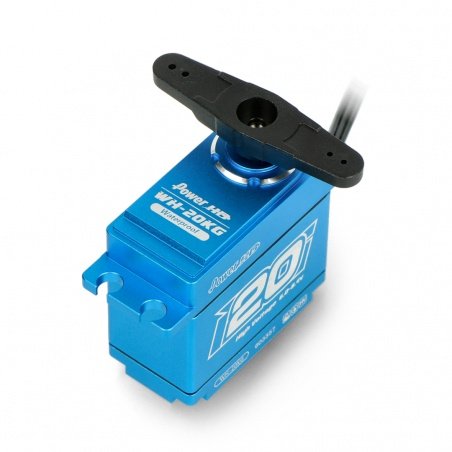

Servo PowerHD WH-20 KG is a high quality servo standard type, placed in an aluminum, waterproof housing. It is powered from 6 V to 8.4 V. The servo modes made of steel and titanium guarantee its reliable operation. Servo torque is 20 kg*cm. Dimensions 40.7 x 20.5 x 38.5 mm.
Servo PowerHD WH-20KG waterproof
€72.50
€58.94 tax excl.
Waiting time: 4-6 weeks
Only on request
PayPal payment
Manufacturer: PowerHD

Product description: Servo PowerHD WH-20KG waterproof

Digitalservostandard typePowerHD WH-20KGin an aluminum,waterproof housing. The servo is characterized by high quality workmanship. The mechanism has a double ball bearing and a gear made of titanium and steel.

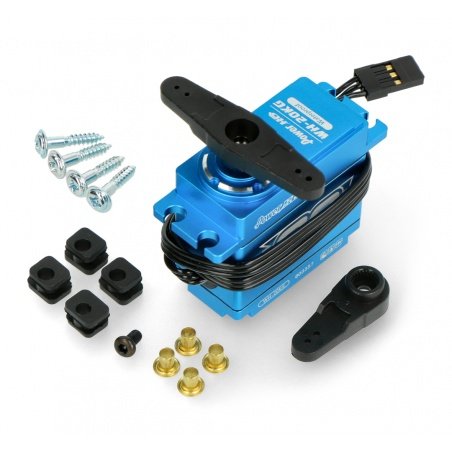

The angle of rotation of the servo is 90°, and its maximumtorque is 20 kg*cmat 8.4V supply voltage. The servo is powered by DC from 6 V to 8.4 V and is capable of operating in temperatures from -20°C to 60°C. The set includesservo horns, screws and all necessary accessories needed for its use.

WH-20KG servo specifications

  • Supply voltage: 6.0 V to 8.4 V
  • Type: digital
  • aluminum waterproof housing
  • Operating temperature: from -20°C to 60°C
  • Operating frequency: 1520 μs / 333 Hz
  • Cable length: 300 mm
  • Rotation angle: 90°
  • Two ball bearings
  • Gear made of steel and titanium
  • Dimensions: 40.7 x 20.5 x 38.5 mm
  • Weight: 82 g

  • Specifications for 6.0 V:
    • Torque: 15.0 kg*cm (1.47 Nm)
    • Speed: 0.11 s/60°.
  • Parameters for 7.4 V:
    • Torque: 18.0 kg*cm (1.77 Nm)
    • Speed: 0.09 s/60°.
  • Parameters for 8.4 V:
    • Torque: 20.0 kg*cm (1.96 Nm)
    • Speed: 0.08 s/60°.
Serwo PowerHD WH-20 kg
PowerHD WH-20KG servo.

Length 40.7
Width 20.5 mm
Height 38.6 mm
Voltage to 6.0 V
Voltage from 8.4 V
Torque 20,0 kg*cm
Mass 82 g
Servo - Range 90 °
Servo - Size standard
Servo - Speed 0,08 s/60°
Servo - Type digital
Package width 11.3 cm
Package height 3.7 cm
Package depth 7.6 cm
Package weight 0.158 kg
