Product description: Servo PowerHD WH-40KG - standard waterproof

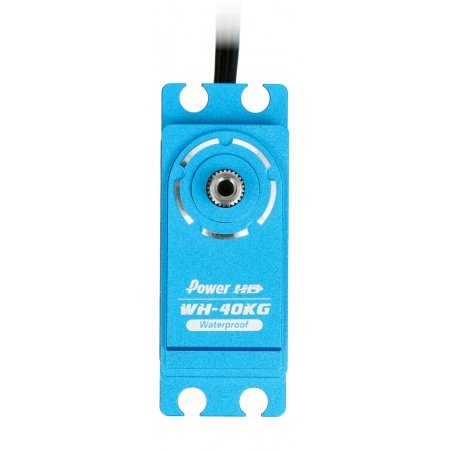

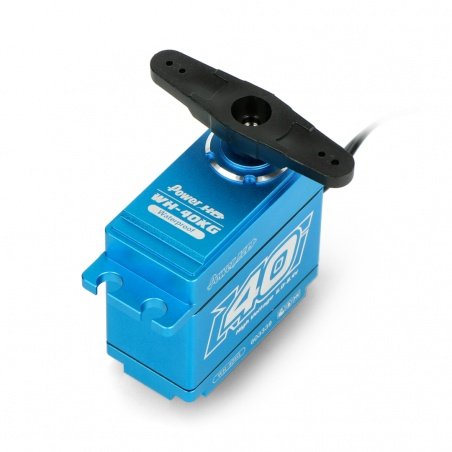

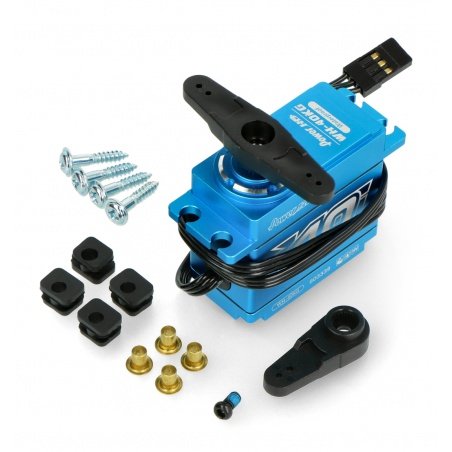

Digital servo standard type PowerHD WH-40KG placed in an aluminum, waterproof housing. Made of high quality materials. The servo has a double ball bearing and a gear made of titanium and steel. The rotation angle of PowerHD WH-40KG is 90° and the torque of the device is 40 kg*cm for 8.4V supply voltage. The module is supplied with voltage from 6 V to 8.4 V. The kit also includes orbs, screws and necessary accessories needed for proper operation of the servo.
WH-40KG servo specification
- Supply voltage: from 6.0 V to 8.4 V
- Type: digital
- Housing: aluminum, waterproof
- Operating temperature: from -20°C to 60°C
- Operating frequency: 1520 μs / 333 Hz
- Rotation angle: 90°
- Parameters for 6.0 V:
- Torque: 29 kg*cm (2.84 Nm)
- Speed: 0.20 s/60°
- Parameters for 7.4 V:
- Torque: 35 kg*cm (3.43 Nm)
- Speed: 0.18 s/60°.
- Parameters for 8.4 V:
- Torque: 40 kg*cm (3.92 Nm)
- Speed: 0.17 s/60°.
- Two ball bearings
- Gear made of steel and titanium
- Dimensions: 40.7 x 20.5 x 38.5 mm
- Weight: 82 g
