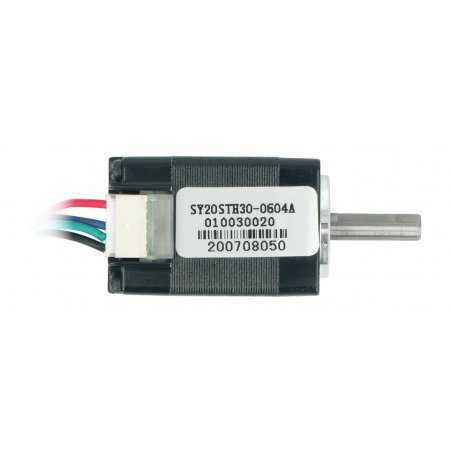

Stepper Motor SY20STH30-0604A 200 steps 3,9V/ 0,6A/ 0,017Nm - - zdjęcie 1

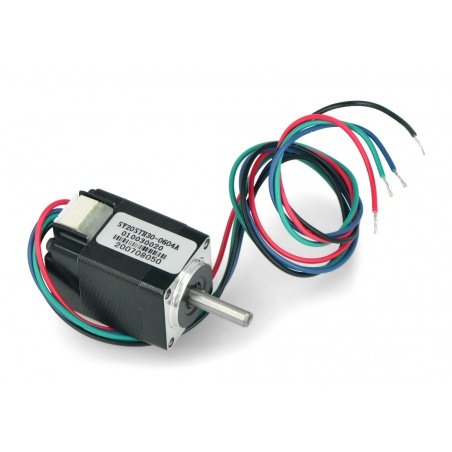

Stepper Motor SY20STH30-0604A 200 steps 3,9V/ 0,6A/ 0,017Nm - - zdjęcie 2

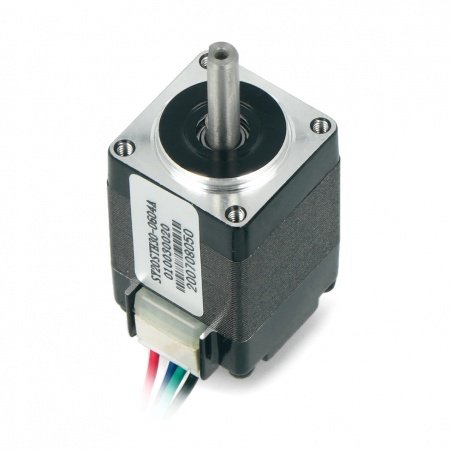

Stepper Motor SY20STH30-0604A 200 steps 3,9V/ 0,6A/ 0,017Nm - - zdjęcie 3
Stepper motor: 200 steps/rev 3.9V 600mA - zdjęcie 4
Stepper motor: 200 steps/rev 3.9V 600mA - zdjęcie 5
Stepper Motor SY20STH30-0604A 200 steps 3,9V/ 0,6A/ 0,017Nm - - zdjęcie 6

Stepper Motor SY20STH30-0604A 200 steps 3,9V/ 0,6A/ 0,017Nm - Pololu 1204

Index: PLL-01298

Bipolar stepper motor 200 steps (1.8 stage) supplied at 3.9 volts with 600 mA per coil, 0.18 kg*cm (0.017 Nm) torque. Dimensions: 20 x 20 x 30 mm (NEMA 8).

PLN87.40
PLN87.40 tax excl.

Available, 24h shipping!
(Check quantity)
Shipping in 24 hours
30-day returns
Manufacturer: Pololu

Description: Stepper motor SY20STH30-0604A 200 steps/rev 3.9V/ 0.6A/ 0.017Nm

The bipolar stepper motor has a resolution of 200 steps per revolution, i.e. a full step takes place every 1.8 degrees. Current consumption is 600mA per coil at 3.9V. The holding torque is 0.18 kg*cm (0.017 Nm). There is a 4 mm D-shaped shaft at the output.

Wiring and wiring diagram.

Stepper motor dimensions

The motor base is a 20 +/- 0.2 mm square. The height marked as length is 30 mm.

Accessories

Use of stepper motors:

  • printers
  • CNC equipment
  • 3D printers
  • lasers
  • manipulators

Stepper motor specification SY20STH30-0604A

  • Number of steps/rotation: 200 (1.8 degrees)
  • Rated voltage: 3,9 V
  • Current draw per coil: 600 mA
  • Coil resistance 6.5 Ω
  • Winding inductance: 1.7 mH
  • Holding torque 0.18 kg*cm (0.017 Nm)
  • Shaft diameter: 4 mm D-shaped
  • Weight: 60 g
  • Dimensions: 20 x 20 x 30 mm (without shaft) - NEMA 8

Length 20 mm
Width 20 mm
Height 30 mm
Voltage to 3.9 V
Voltage from 3.9 V
Torque 0.18 kg*cm
Mass 60 g
Motor - shaft 4 mm
Voltage nominal 3.9 V
Stepper - current: 0.6 A
Stepper - coil resist. 6.5 Ω
Stepper - resolution 200 steps
Stepper - induct. 1.7 mH
Stepper - fixing NEMA8
Stepper - type bipolar
