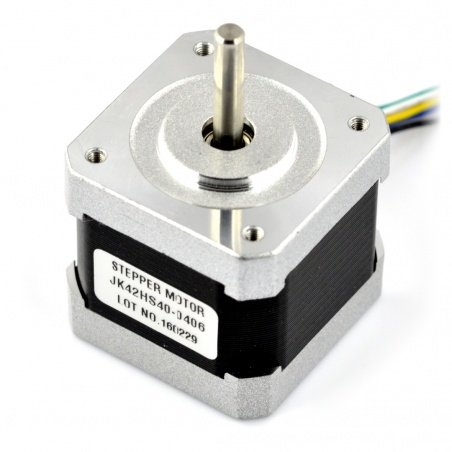

Stepper motor JK42HS40-0406 200 steps/rev 12V / 0.4A / 0.25Nm
 - zdjęcie 1
Stepper motor JK42HS40-0406 200 steps/rev 12V / 0.4A / 0.25Nm - zdjęcie 2

Stepper motor JK42HS40-0406

Index: MOT-06425 EAN: 5904422334611
BOTLAND B. DERKACZ SPÓŁKA JAWNA Opinie z ekomi-pl.com

Unipolar stepper motor, six-wire. Has a resolution of 200 steps per revolution (1.8 degrees). Powered by 12 V, draws 400 mA per coil. Torque is 2.6 kg*cm (0.25 Nm). Dimensions are 42 x 42 x 40 mm (NEMA 17).

€14.08
€11.45 tax excl.
Waiting for confirmation of delivery date
Product unavailable
30-day returns
PayPal payment
Manufacturer: OEM

Specification

  • Resolution: 200 steps/rev (1.8°)
  • Rated voltage: 12 V
  • Current consumption per coil: 0,4 A
  • Coil resistance 30 Ω
  • Winding inductance: 30 mH
  • Holding torque 2.6 kg*cm (0.25 Nm)
  • Outputs: unipolar (six wires)
  • Shaft diameter: 5 mm
  • Weight: 280 g
  • Standard: NEMA 17
  • Dimensions: 42 x 42 x 40 mm (without shaft)

Details in thetechnical documentation.

Description

Unipolar stepper motor, six-wire. Has a resolution of 200 steps per revolution (1.8 degrees). Powered by 12 V, draws 400 mA per coil. Torque is 2.6 kg*cm (0.25 Nm). Dimensions are 42 x 42 x 40 mm (NEMA 17).

Accessories

Our shop also offers accessories to make stepper motors easier to use:

Application of stepper motors:

  • printers
  • CNC equipment
  • 3D printers
  • lasers
  • manipulators

Length 42 mm
Width 42 mm
Height 40 mm
Voltage to 12.0 V
Voltage from 12.0 V
Torque 2,6 kg*cm
Motor - shaft 5.0 mm
Voltage nominal 12 V
Stepper - current: 0.4 A
Stepper - coil resist. 30.0 Ω
Stepper - resolution 200 steps
Stepper - induct. 30 mH
Stepper - fixing NEMA17
Stepper - type unipolar
