Stepper motor JK42HS40-1684 200 steps/rev 2,8V / 1,68A / 0,4Nm

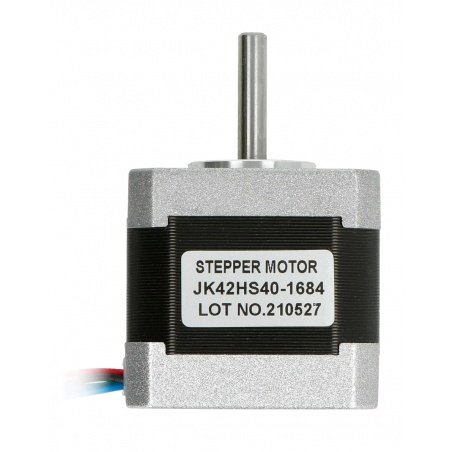

 - zdjęcie 1

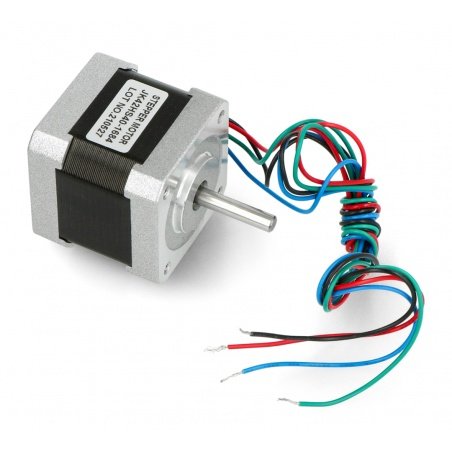

 - zdjęcie 2

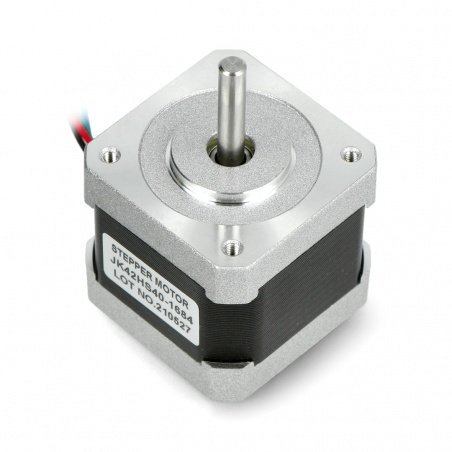

 - zdjęcie 3
Stepper motor JK42HS40-1684 200 steps/rev 2,8V / 1,68A / 0,4Nm - zdjęcie 4

Stepper motor JK42HS40-1684

Index: MOT-06427 EAN: 5904422334628
BOTLAND B. DERKACZ SPÓŁKA JAWNA Opinie z ekomi-pl.com

Bipolar stepper motor, four wire. It has a resolution of 200 steps per revolution (1.8 degrees). It is powered by 2.8 V and draws 1680 mA per coil. The torque is 4.0 kg*cm (0.4 Nm). Dimensions are 42 x 42 x 40 mm (NEMA 17).

€14.06
€11.43 tax excl.
Waiting for confirmation of delivery date
Product unavailable
30-day returns
PayPal payment
Manufacturer: OEM

Product description: JK42HS40-1684 stepper motor 200 steps/rev 2,8 V / 1,68 A / 0,4 Nm

Bipolar stepper motor, four wire. It has a resolution of 200 steps per revolution (1.8 degrees). It is powered by 2.8 V and draws 1650 mA per coil. The torque is 4.0 kg*cm (0.4 Nm). Dimensions are 42 x 42 x 40 mm (NEMA 17).

Accessories

There are also accessories available in our shop to make stepper motors easier to use:

  • Stepper motordriver - simple to use, small modules allowing to control direction, speed and resolution. We have also prepared instructions for connecting different types of stepper motors.

Sterowniki silników krokowych

Applications of stepper motors:

  • printers
  • CNC devices
  • 3D printers
  • laser devices
  • manipulators

Silnik krokowy JK42HS40-1684 200 kroków/obr 2,8V/1,68A/0,4Nm

JK42HS40-1684 stepper motor 200 steps/rev 2,8 V / 1,68 A / 0,4 Nm.

Specification of the JK42HS40-1684 stepper motor

  • Resolution: 200 steps/rev (1.8 °)
  • Rated voltage: 2,8 V
  • Current consumption per coil: 1,68 A
  • Coil resistance 1.65 Ω
  • Winding inductance: 3.2 mH
  • Holding torque 4.0 kg*cm (0.4 Nm)
  • Leads: bipolar (four wires)
  • Shaft diameter: 5 mm
  • Weight: 280 g
  • Standard: NEMA 17
  • Dimensions: 42 x 42 x 40 mm (without shaft)

See technical documentation for details.

Length 42 mm
Width 42 mm
Height 40 mm
Voltage to 2.8 V
Voltage from 2.8 V
Torque 4.0 kg*cm
Mass 280 g
Motor - shaft 5.0 mm
Voltage nominal 2.8 V
Stepper - current: 1.68 A
Stepper - coil resist. 1.65 Ω
Stepper - resolution 200 steps
Stepper - induct. 3.2 mH
Stepper - fixing NEMA17
Stepper - type bipolar
