Specification
STM32L152RBT6 microcontroller:
128 KB Flash
16kB RAM
Housing LQFP64
- The microcontroller STM32F407VGT6:
- Core: Cortex M4F
- The Clock Frequency Of 168 MHz
- 1 MB Flash
- 192 kb RAM
- Case LQFP100
- The debugger ST-Link/V2 is placed on the board with the ability to work as a standalone device with the SWD output.
- The system is powered via USB or via external power supply: 5V/3.3 V
- Board also has:
- 3-axis accelerometer
- Eight LEDs
(four at user's disposal) - Two buttons (user's and reset)
- Connector micro-AB USB
- Leads goldpin for I/O ports
A detailed description and sample the programs are on the website of the manufacturer.

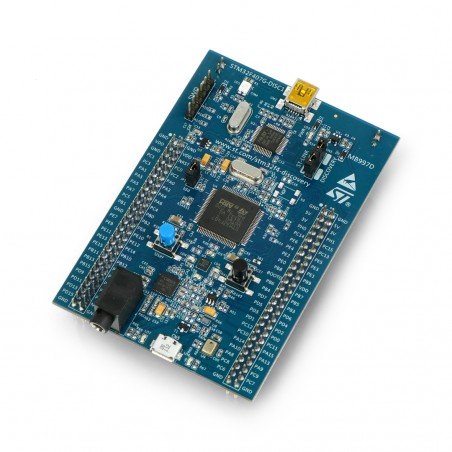

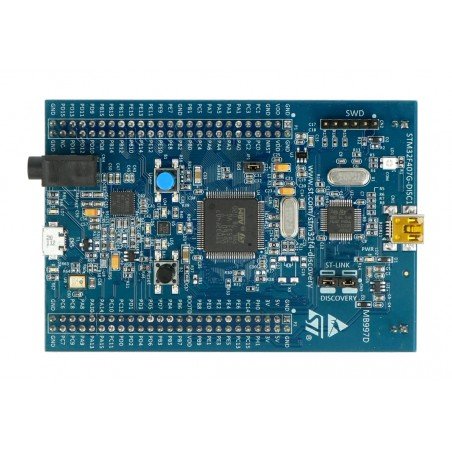

The module allows to implement projects based on the popular 32-bit microcontroller from family STM32. Due to the discovery, the user can discover the opportunities offered by the latest ARM Cortex M4F core with hardware floating point unit. The libraries and many examples available on the website of the company ST, facilitate creating the software. In addition, the board has an accelerometer, i.e. the sensor which can measure acceleration (including the earth acceleration).
For programming of the system, you only have to have the mini USB cable and a development environment, for example, the free CooCox. The breadboard and hook-up wires will allow to mount the systems.
