M5Stack UnitV2 M12 - AI recognition module - camera version - M5Stack

Index: MSS-20443
M5Stack UnitV2 is an AI recognition module equipped with powerful components. Manufactured by M5Stack, it features the Sigmstar SSD202D - an integrated dual-core 1.2 GHz Cortex-A7 processor, 128 MB-DDR3 RAM, 512 MB NAND Flash, and a 1080P camera. Also included are two lenses - one with an 85° FOV and a Wide-Angle Fisheye FOV of 150°.
€149.38
€121.45 tax excl.
Waiting for confirmation of delivery date
Product unavailable
30-day returns
PayPal payment
Manufacturer: M5Stack

Product description: M5Stack UnitV2 M12 - AI recognition module - camera version - M5Stack

M5StackUnitV2 is an AI recognition module equipped with powerful components. Manufactured by M5Stack, it features the Sigmstar SSD202D - an integrated dual-core Cortex-A7 1.2 GHz processor, 128 MB-DDR3 RAM, 512 MB NAND Flash memory and a 1080P camera. Also included are two lenses - one with an 85° FOV and a Wide-Angle Fisheye FOV of 150°.

A detailed user guide is available on the manufacturer's website. It contains essential information and instructions to help you get started with the M5Stack UnitV2 M12.

M5Stack UnitV2 M12 w zestawie z dwoma obiektywami.

M5Stack UnitV2 M12 comes with two lenses.

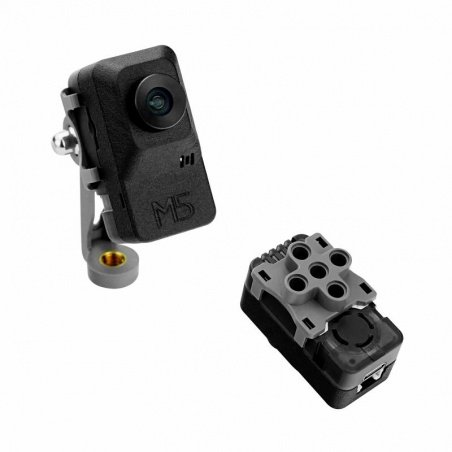

Elementy montażowe pozwalają na wygodne umocowanie modułu w dedykowanym miejscu.

Specially designed mounting elements allow you to conveniently fix the module in a dedicated location.

Special features of M5Stack UnitV2 M12

  • Equipped with dual-core Cortex-A7 1.2 GHz processor
  • Comes with two lenses - a standard lens with an 85° viewing angle and a Wide-Angle Fisheye lens with an FOV of 150°
  • Includes a built-in microphone
  • Supports 2.4 GHz WiFi wireless communication
  • Equipped with 12 AI image recognition functions - QR code, face detection, line tracking, motion, shape matching, image streaming, classification, color tracking, face recognition, target tracking, shape detection, custom object recognition
  • Possibility of online preview on the Internet, UIFlow (used as serial port json format)
  • Linux system (OpenCV, SSH, JupyterNotebook)
  • It is used in applications of learning and machine vision, object classification and visual recognition, and wide-ranging applications with AI recognition functions

Technical specification of M5Stack UnitV2 M12

  • Type: AI recognition module
  • Embedded chip: Sigmstar SSD202D
  • Processor: dual-core Cortex-A7 1.2 GHz
  • Flash Memory: 512 MB NAND
  • RAM: 128 MB-DDR3
  • Camera: GC2053 1080P
  • Lens:
    • 1x standard lens with 85° FOV
    • 1x Wide-Angle Fisheye lens with 150° FOV
  • Input voltage: 5 V / 500 mA
  • Peripherals: 1x USB type C, 1x UART, 1x TF memory card slot, 1x utility button, 1x built-in microphone, 1x built-in cooling fan
  • Operating status indication: LED (red and white)
  • Wireless communication: WiFi
  • WiFi standard: 150M bps 2.4 GHz 802.11b/g/n
  • Ethernet: SR9900

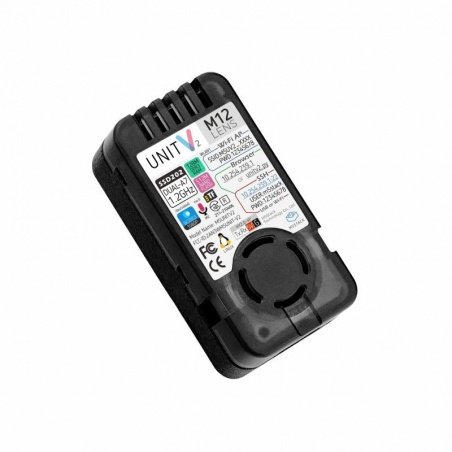

Widok z tyłu.

Rear view.

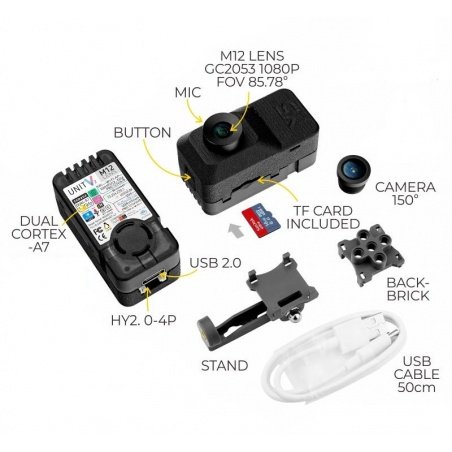

Zawartość zestawu.
Kit Contents.

Contents of the kit

  • M5Stack UnitV2 M12 module
  • 16G TF memory card
  • USB Type C cable 50 cm long
  • Mounting hardware: rear clip and bracket
  • Standard lens with 85° FOV
  • Wide-Angle Fisheye lens with FOV of 150°

In our offer you will also find M5Stack UnitV2 USB module without camera. Check it out!
