- EOL
|
Attention! The product has been discontinued. Check other products in category. |
Product description: UPS Armac Home 1500F - 4 x E socket - 230 V
UPS emergency power supplywith a capacity of1500 VA/950 W. Manufactured by Armac. The rear of the device containsfour french sockets(type E),two RJ45 portsand a USBport. The power supply has two built-in12 V / 9 Ahbatteries and its output signal is a simulated sine wave. The use ofintegrated processor controltechnology minimizes theresponsetime of thedevice, which is responsible for correcting low or high voltage, spikes, power outages, overvoltage and overloading of the UPS. Made with attention to detail, the product providesstable power toconnected equipment and also protects the battery from complete discharge.
Key features
- 1500 VA rated power
- Line-Interactive (VI) topology
- SMD technology for easy installation
- Stand-By charging
- Overload, short circuit and over-discharge protection
- RJ45 surge protection
- Built-in automatic voltage regulation (AVR)

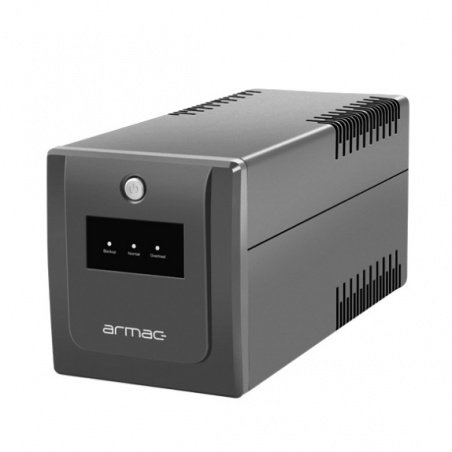

Uninterruptible power supply (UPS) manufactured by Armac.
Three LEDs indicate the operation of the device.Technical specification of the uninterruptible power supply from Armac
- Number of sockets: 4 x french socket (type E), 2 x RJ45
- Communication with the computer: USB
- Power (apparent / active): 1500 VA / 950 W
- Output voltage: 230 V
- Output voltage shape: Simulated sine wave
- Transfer Time: Typically 2 ms to 6 ms
- Output frequency: 50 Hz / 60 Hz
- Battery classification: 12 V / 9 Ah x 2
- Battery charge time: 4 to 6 hours to 90% capacity
- Back-up time: 3 to 20 minutes depending on load
- Noise level: < 45 dB
- Monitoring software: PowerManager (recommended)
- Operating environment: Indoor
- Dimensions: 345 x 146 x 162 mm
- Weight: 10.5 kg
Software
With thePowerManagersoftware it is possible to remotely monitor the operation of the device. The control takes place in real time and allows, among others:
- Automatic notification in the form of e-mail and SMS messages when the device alarms
- Automatic detection of AC mains failure
- Keeping of log of UPS events and their analysis
- Setting of the operating time of the power supply
- UPS diagnostics
Software not included, available for download frommanufacturer's website.
The power supply has four E-type outlets.
