- EOL
|
Attention! The product has been discontinued. Check other products in category. |
Product description: Uninterruptible power supply UPS Armac Office 650E LCD - 2 x E - 230 V socket
TheArmac 650Epower supply with a built-inLCD display. The power supply is designed to protect equipment commonly used in offices. Its power is650 VA / 390 W, and the signal given at the outputsocketsis asimulated sinusoidal wave. This makes it possible to sustain operation of e.g. equipment equipped with an electricmotor. All connectors are placed at the back of the PSU, which makes working with the PSU very comfortable. The 650E version is equipped withtwo E-type outlets,two RJ45 ports, and one USB B-type port.

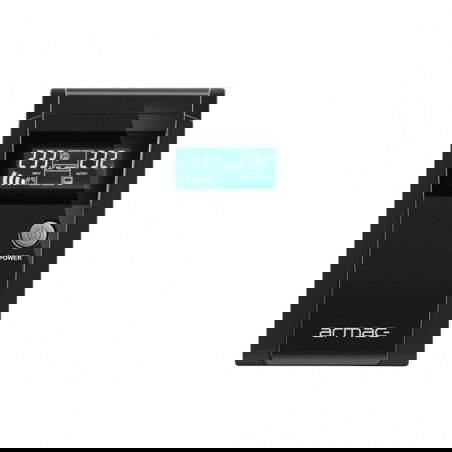

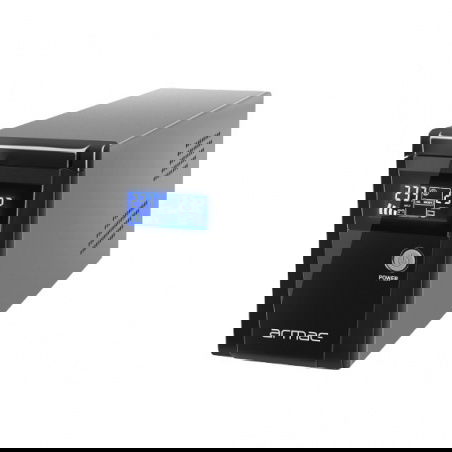

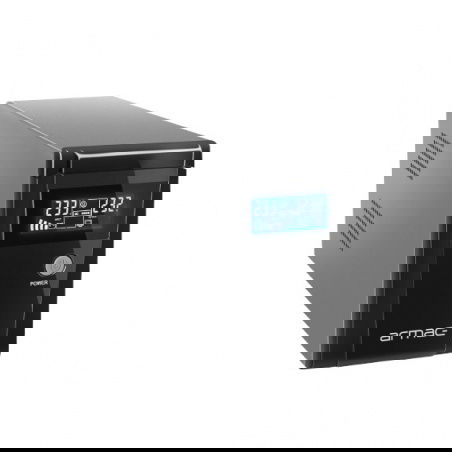

Armac Office 650E LCD UPS.

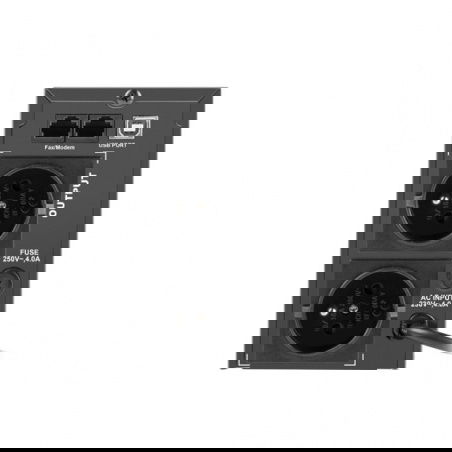

It has 2 E sockets, 2 RJ45 sockets and a USB type B socket on the rear panel.
Software for the Armac 1000F LCD
Power Manager is the manufacturer's suggested program for managing the power supply. With its help it is possible to:- Remote monitoring of the power supply status and its working environment
- E-mail and SMS notifications about device alarms
- Automatic detection of mains power failure (AC) and low battery
- Maintaining and analysing the PSU log of events
- Scheduling of the device's operation
- Save and shutdown function during a required UPS power down
- Shutdown/restart function of the computer during a required UPS shutdown
- Diagnostics and setting of interval for automatic UPS test
Technical specification of the power supply
- Connectors:
- 2 x E-sockets
- 2 x RJ45
- USB type B
- Power rating: 650 VA / 390 W
- Display: LCD
- Topology: Line-Interactive
- Communication with the computer: USB
- Input voltage: from 145 V to 290 V
- Output voltage: 230 V
- Output voltage range: 195 V to 255 V
- Output waveform (battery mode): simulated sine wave
- Transfer time: 2 ms to 6 ms
- Input frequency: 45 Hz to 65 Hz
- Output frequency: 50 Hz
- Operating temperature: from 0°C to 45°C
- Battery classification: 12 V / 7 Ah x 1
- Battery weight: 1.95 kg
- Battery charging time: from 4 h to 6 h to 90% battery capacity
- Hold time: from 3 min to 20 min depending on load
- Noise level: < 45 dB
- Monitoring software PowerManager PL (recommended)
- Operating conditions: Indoor
- Dimensions: 305 x 85 x 141 mm
- Weight: 4.6 kg
UPS from the Office series.
