Product description: UPS Armac Office 850E LCD - 2 x E-socket - 230V
Armac 850EwithLCD displayisahigh quality UPS withLine-Interactivetopology designed for office applications. The UPS has a capacity of850 VA / 480 W. The signal at the outputsocketsis asimulated sine wave, so that it can also support the operation of equipment with an electricmotor. All connectors are on the back side of the PSU. The 850E is equipped withtwo E-type sockets,two RJ45 ports and one USB B-type socket.

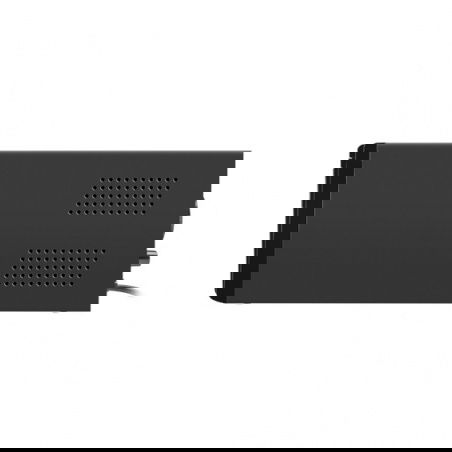

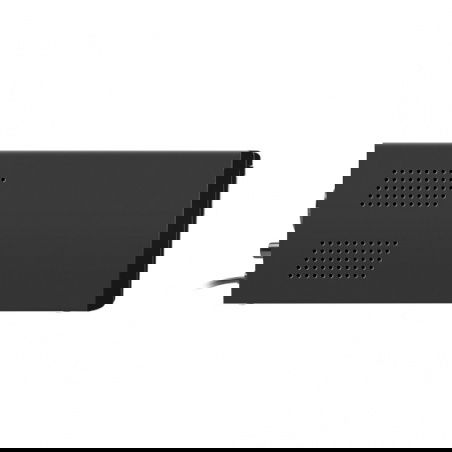

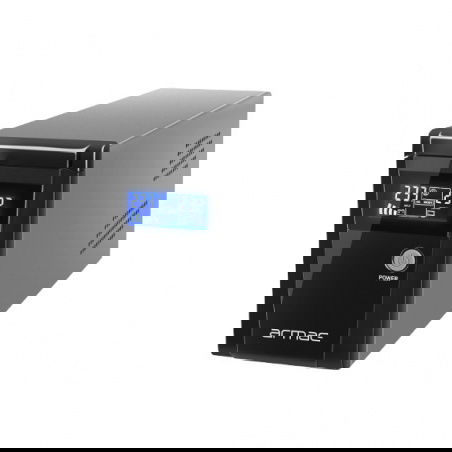

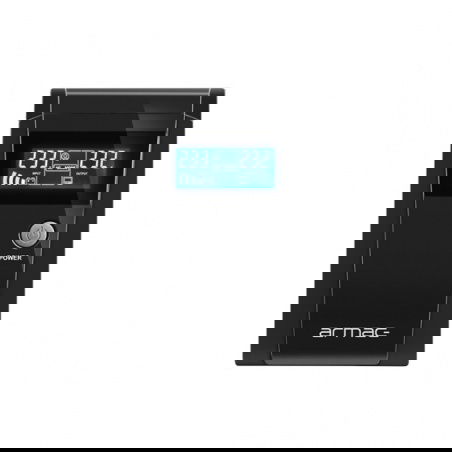

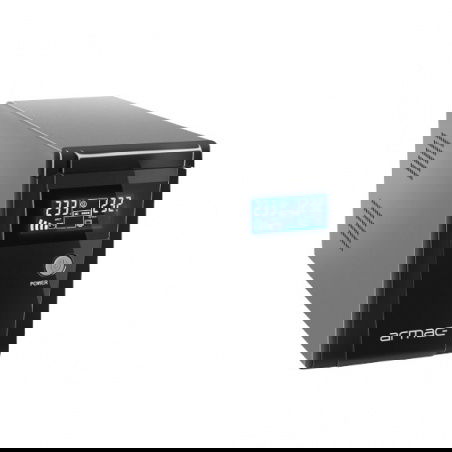

Armac Office 850E LCD UPS.

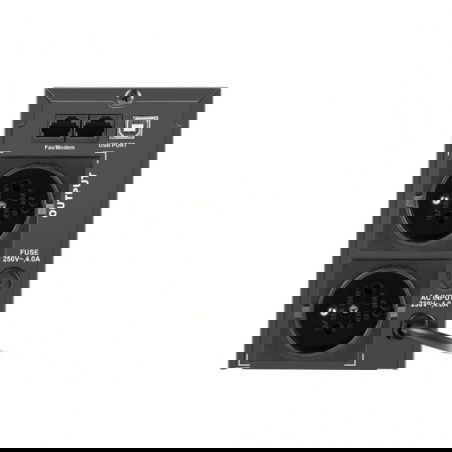

This UPS has 2 E sockets, 2 RJ45 sockets and a USB type B socket on the rear panel.
Software for the Armac 1000F LCD power supply
The Power Manager software is the manufacturer's suggested program for managing the power supply. With its help it is possible to:- Remote monitoring of the power supply status and its working environment
- E-mail and SMS notifications indicating alarms of the device
- Automatic detection of mains power failure (AC) and low battery
- Maintaining and analysing the PSU log of events
- Scheduling of the device's operation
- Save and shutdown function during a required UPS power down
- Shutdown/restart function of the computer during a required UPS shutdown
- Diagnostics and setting of interval for automatic UPS test
Technical specification of the Armac uninterruptible power supply
- Connectors:
- 2 x E-sockets
- 2 x RJ45
- USB type B
- Power rating: 850 VA / 480 W
- Display: LCD
- Topology: Line-Interactive
- Communication with the computer: USB
- Input voltage: from 145 V to 290 V
- Output voltage: 230 V
- Output voltage range: 195 V to 255 V
- Output waveform (battery mode): simulated sine wave
- Transfer time: 2 ms to 6 ms
- Input frequency: 45 Hz to 65 Hz
- Output frequency: 50 Hz
- Operating temperature: from 0°C to 45°C
- Battery classification: 12 V / 9 Ah x 1
- Battery weight: 2.35 kg
- Battery charging time: from 4 h to 6 h to 90% battery capacity
- Hold time: from 3 min to 20 min depending on load
- Noise level: < 45 dB
- Monitoring software PowerManager PL (recommended)
- Operating conditions: Indoor
- Dimensions: 305 x 85 x 141 mm
- Weight: 5,5 kg
UPS from the Office series.
