Attention! The product has been discontinued. Check other products in category. |
Product description: Armac Office 1000F LCD UPS - 3 x Schuko socket - 230 V
TheArmac 1000F UPS with LCD displayis a high quality uninterruptible power supply withLine-Interactivetopology. The power of the device is1000 VA / 650 W.Thepower supply is distinguished by asimulated sine waveat the outputsockets. The Armac 1000F hasthree Schuko type sockets,two RJ45 ports and one USB type B socket. The USB cable is not included.

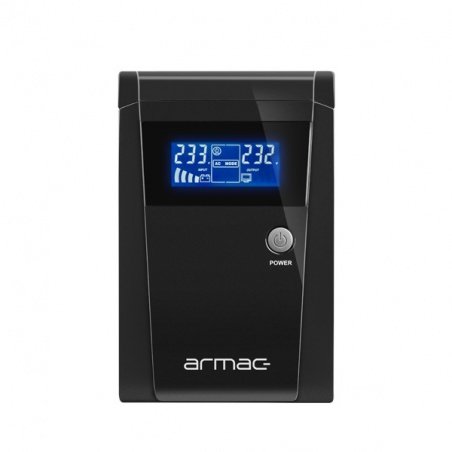

Armac Office 1000F LCD UPS.

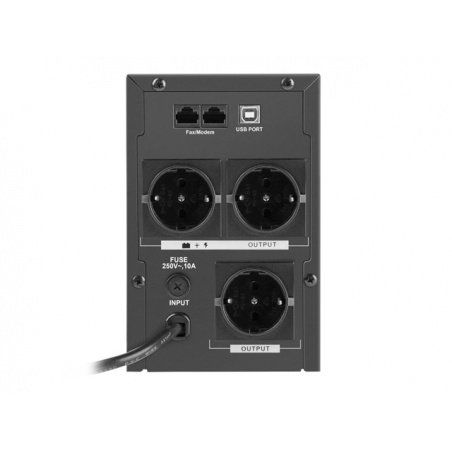

The power supply has 3 Schuko sockets, 2 RJ45 sockets and a USB type B socket.
Software for the Armac 1000F LCD power supply
- Real time remote monitoring of UPS power status and operating environment.
- Alarm notification by e-mail and SMS
- Detection of mains failure (AC) and low battery level
- Logging and analysis of UPS event log
- Run time setting
- Save and shutdown function when UPS requires power to shut down
- Shutdown/restart function of the computer during a required UPS power cut
- Diagnostics and setting the interval for the automatic UPS test
Technical specification of the Armac UPS
- Connectors:
- 3 x Schuko sockets
- 2 x RJ45
- USB type B
- Rated power: 1000 VA / 650 W
- Display: LCD
- Topology: Line-Interactive
- Communication with the computer: USB
- Input voltage: from 145 V to 290 V
- Output voltage: 230 V
- Output voltage range: 195 V to 255 V
- Output waveform (battery mode): simulated sine wave
- Transfer time: 2 ms to 6 ms
- Input frequency: 45 Hz to 65 Hz
- Output frequency: 50 Hz
- Operating temperature: from 0°C to 45°C
- Battery classification: 12 V / 7 Ah x 2
- Battery weight: 3.95 kg
- Battery charging time: from 4 h to 6 h to 90% battery capacity
- Hold time: from 3 min to 20 min depending on load
- Noise level: < 45 dB
- Monitoring software PowerManager PL (recommended)
- Operating conditions: Indoor
- Dimensions: 350 x 120 x 188 mm
- Weight: 9.5 kg

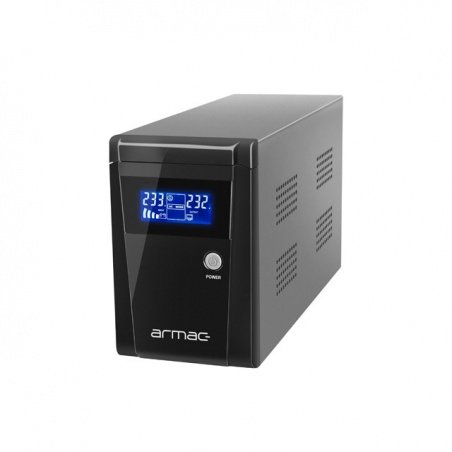

Armac UPS uninterruptible power supply.
