- EOL
|
Attention! The product has been discontinued. Check other products in category. |

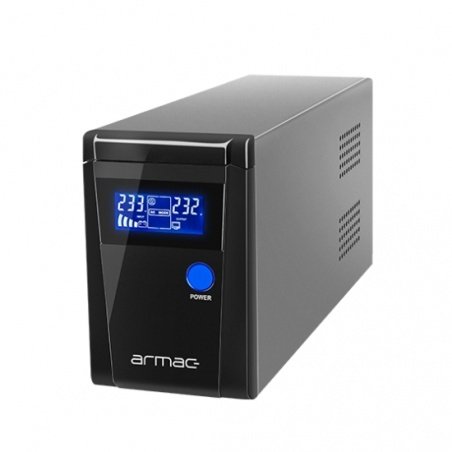

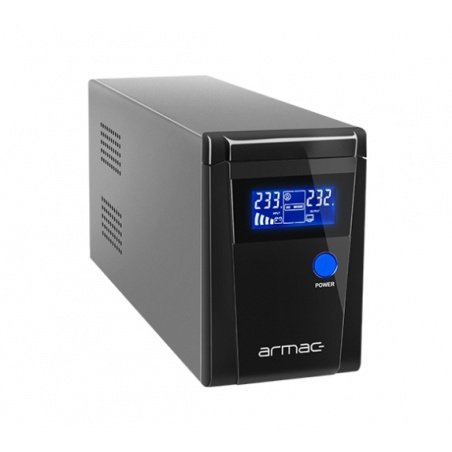

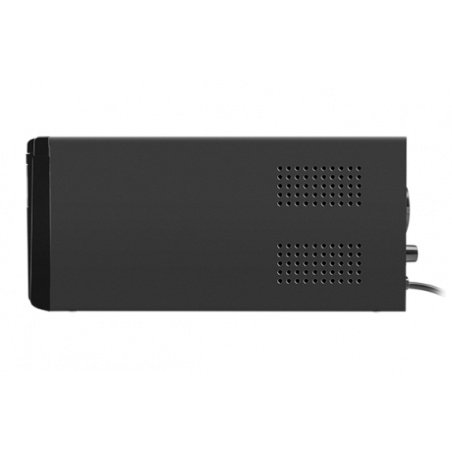

Product description: UPS Armac PSW 650E LCD - 2 x E socket - 230V
UPS650E UPS Ofiice Pure Sine Wave serieswith a capacity of650 VA/390 W. Manufactured by Armac, it hastwo E-type outlets(French). PSW series devices are distinguished by afull sine waveat the outputsockets, which allows to sustain the operation of equipment equipped with an electric motor or heater. The UPS has been designed for a wide range of applications inhomeandofficeuse.
Key features
- Line-Interactive (VI) topology
- Full sine wave output sockets
- 2 x E-sockets
- Large capacity 12 V / 7 Ah battery
- Overload and surge protection
- Self-starting when mains power returns
- Built-in automatic voltage regulation (AVR)
The UPS has been designed for domestic and industrial applications.

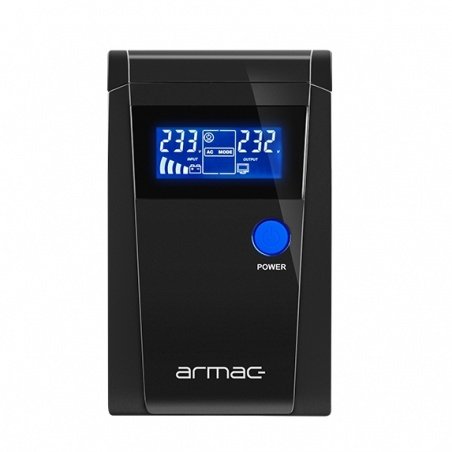

Nfront panel LCD display shows operating parameters.Technical specification of the uninterruptible power supply from Armac
- Connectors:
- 2 x E-type sockets
- 1 x RJ11
- 1 x RJ45
- USB type B
- Topology: Line-Interactive
- Communication with the computer: USB
- Power (apparent / active): 650 VA / 390 W
- Output voltage range: 220 V / 230 V 240 V AC
- Output waveform (battery mode): full sine wave
- Transfer time: 2 ms to 6 ms
- Output frequency: 50 Hz / 60 Hz
- Battery classification: 1 x 12 V / 7 Ah
- Battery charge time: 4 to 8 hours to 90% capacity
- Back-up time: depending on load
- Noise level: < 45 dB
- Monitoring software: PowerManager II (recommended)
- Operating conditions: Indoor
- Dimensions: 305 x 85 x 141 mm
- Weight: 5.5 kg
Convenient system for monitoring operation
The Armac power supply communicates with a computer via a USB port. This makes it possible to issue commands and monitor the operation of the device. The recommended software is thePowerManager II. It gives the possibility to, among other things:
- Settings for automatic notification in the form of e-mail and SMS messages when the device alarms
- Automatic detection of AC power failure
- Keeping and analysing the UPS event log
- Settings of a specific operating time of the power supply
- UPS diagnostics

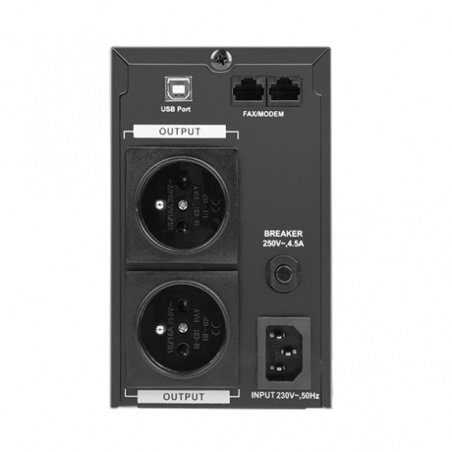

The power supply has two E-type outlets.
